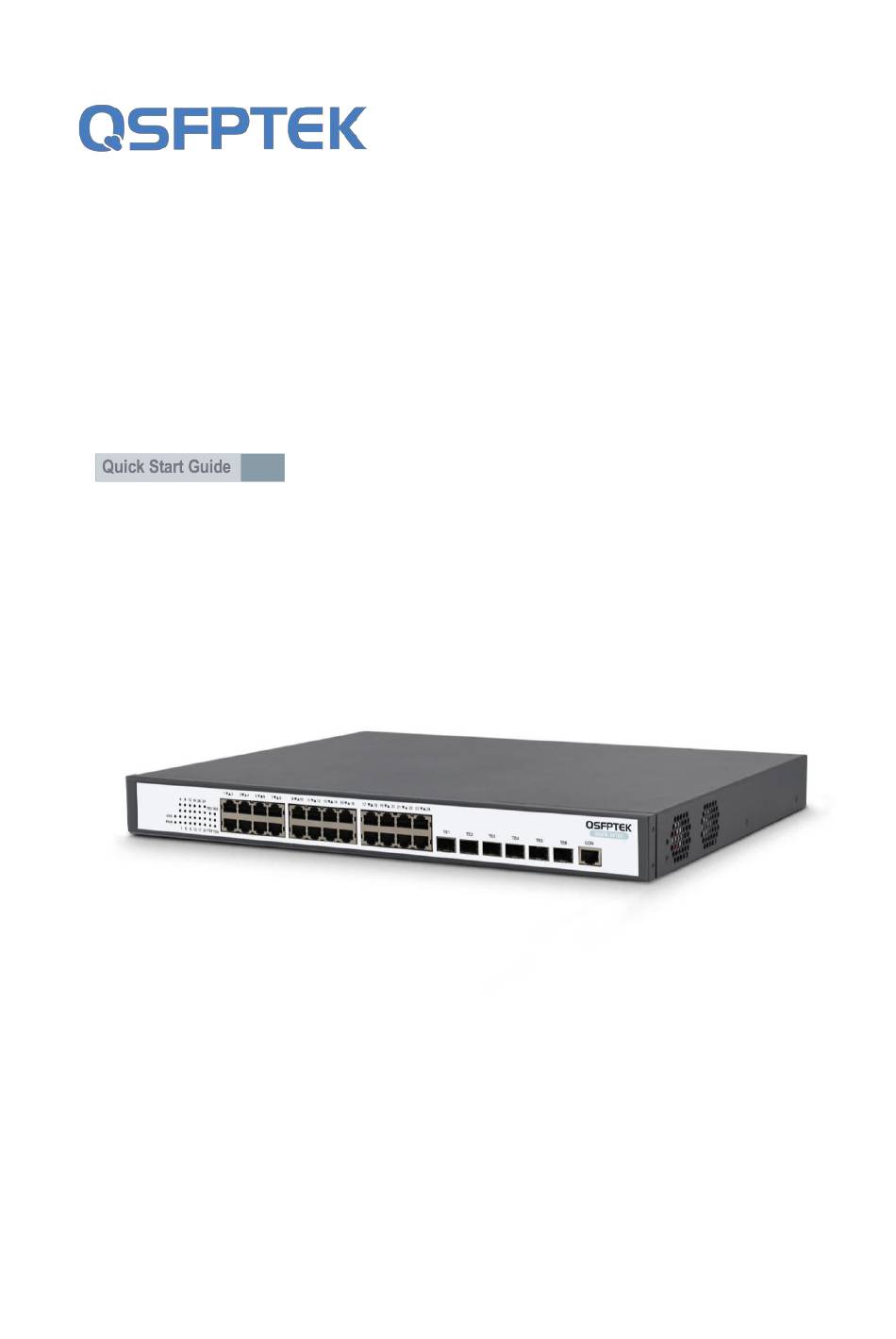

- Page 1 S5300-24T6X Quick Start Guide 24-Port Gigabit Ethernet L3 Switch 24x GE RJ45 Ports, 6x 10GE SFP+ Uplinks, Support Stacking V1.0 www.qsfptek.com v1.0 1 / 10...
- Page 2 Gbps switching capacity and 126 Mpps forwarding rate, features powerful stacking capability by supporting stacking up to 8 units, providing higher network bandwidth and reliability. We appreciate your decision to select S5300-24T6X. This manual is intended to help you become acquainted with the switch design a nd provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
If the switch is powered on, the PWR indicator is on SFP LED Gigabit Ethernet LINK/ACT LED SFP+ LED 10Gigabit Ethernet LINK/ACT LED SYS LED If the system is started normally, the SYS indicator flickers www.qsfptek.com v1.0 3 / 10... -
Page 4: Installation Requirements
Put the chassis at the place where cool air can blow off the heat inside the chassis. Make sure the machine box is sealed because the opened machine box will reverse the cool air flow. www.qsfptek.com v1.0 4 / 10... - Page 5 Connecting the Power 1. Plug the AC power cord to the switch power port on the back rear. 2. Connect the other end of the power cord to a AC power source equipment. Connecting the RJ45 Port www.qsfptek.com v1.0 5 / 10...
- Page 6 1. Insert the SFP+ module into the SFP+ port. 2. Plug a fiber patch cable to the SFP+ transceiver. 3. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com v1.0 6 / 10...
-
Page 7: Connecting The Management Ports
Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. www.qsfptek.com v1.0 7 / 10... - Page 8 Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control www.qsfptek.com v1.0 8 / 10...
-
Page 9: Troubleshooting
If the console port does not work after the system is started up, check whether the console port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. www.qsfptek.com v1.0... -
Page 10: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
