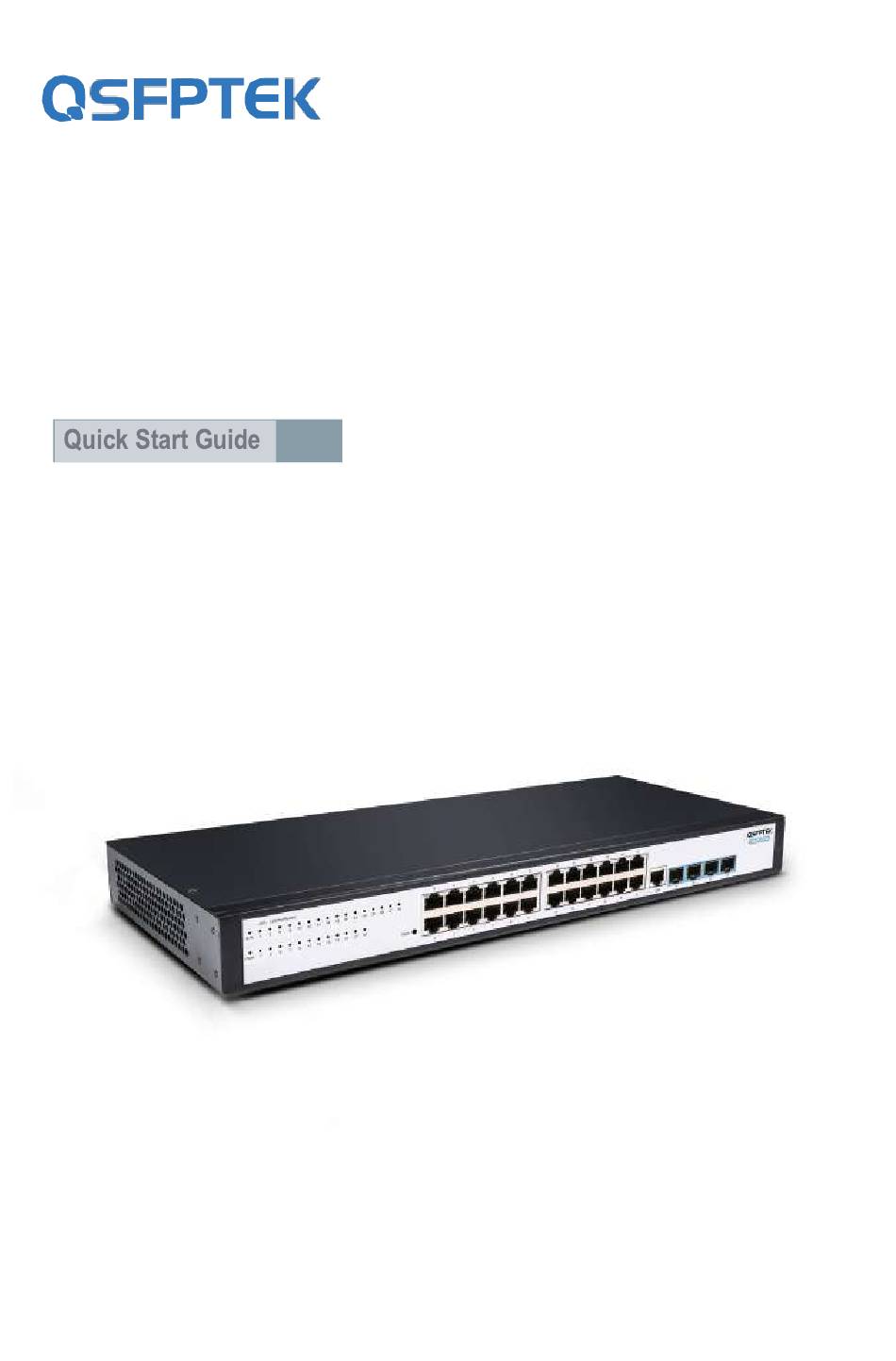

- Page 1 S5300-24T4S Quick Start Guide 24-Port Fanless Gigabit Ethernet L2+ Switch 24x 10/100/1000BASE-T RJ45, with 4x 100/1000M SFP Uplinks, Support Stacking V1.0 www.qsfptek.com V1.0 1／11...
- Page 2 Introduction The S5300-24T4S is a fanless RJ45 switch. Product positioning is to meet the requirements of complex scenarios such as operator IP metropolitan area network, small and medium-sized enterprise network, campus network, enterprise network and other networks. We appreciate your decision to select S5300-24T4S.
-
Page 3: Hardware Overview
Hardware Overview Front Panel Ports S5300-24T4S RJ45 Console Ports Description RJ45 1000BASE-T ports for Ethernet connection Hot-swappable SFP ports for 1G connection CLI port An RJ45 console port for serial management www.qsfptek.com www.qsfptek.com www.qsfptek.com V1.0 3／11 3／11 3／11... - Page 4 Front Panel LEDs S5300-24T4S RJ45 Console Abbrev. Name Description Power indicator If the switch is powered on, the indicator is on. If the switch is started, the system indicator flickers. System indicator Always on in orange: 10/100M Link/Act indicator Always on in green: 1000M...
-
Page 5: Installation Requirements
Back Panel S5300-24T4S AC Power Grounding Point Installation Requirements Before you begin the installation, make sure that you have the following: Phillips screwdriver. Standard-sized, 19" wide rack with a minimum of 1U height available. Category 5e or higher RJ45 Ethernet cables for connecting the network devices. -
Page 6: Mounting The Switch
Connecting the RJ45 Port 1. Plug a compatible RJ45 transceiver into the RJ45 port. 2. Connect an Ethernet patch cable to the RJ45 transceiver. Then connect the other end of the cable to another RJ45 device. www.qsfptek.com www.qsfptek.com www.qsfptek.com V1.0 6／11... -
Page 7: Connecting The Management Port
2. Connect the other end of the console cable to the RS-232 serial port on the computer. 3. The console port of S5300-24T4S does not support traffic control. Therefore, you must set the option data traffic control to none when you configure the switch with the super terminal. Otherwise, the single- pass problem will arise on the super terminal. -
Page 8: Configuring The Switch
Step1: Connect the computer to the Management port of the switch using the network cable. Step 2: Set the IP address of the computer to 192.168.0.x. ("x" is any number from 2 to 254.). Set the subnet mask of the computer to 255.255.255.0. www.qsfptek.com www.qsfptek.com www.qsfptek.com V1.0... - Page 9 Step 2: Start the terminal simulation software such as HyperTerminal on the computer. Step 3: Set the parameters of the HyperTerminal: 9600 bits per second, 8 data bits, no parity, 1 stop bit and no flow control. Step 4: Enter the default username and password, admin/admin. www.qsfptek.com www.qsfptek.com www.qsfptek.com V1.0 V1.0...
-
Page 10: Troubleshooting
4. Confirm that the HyperTerminal parameters are correctly set. Ensure that the baud rate, data bits, stop bits, and parity are properly configured according to your system's specifications. www.qsfptek.com www.qsfptek.com www.qsfptek.com V1.0 V1.0... -
Page 11: Support And Other Resources
Customer Success Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
