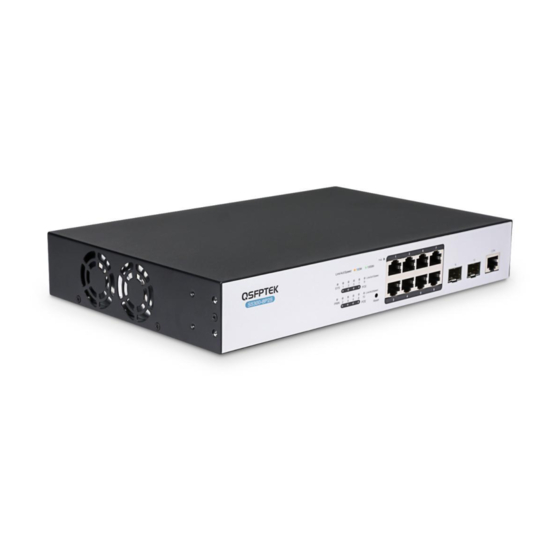

- Page 1 S5300-8P2S Quick Start Guide V2.0 8-Port Gigabit Ethernet L2+ PoE+ Managed Switch 8x 10/100/1000BASE-T RJ45 PoE+ Ports @130W, with 2x 1G SFP Uplinks, Fanless, Support ERPS www.qsfptek.com V2.0 1 / 10...
- Page 2 We appreciate your decision to select S5300-8P2S. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
No signal transmission. Green 1000M port link. 9-10 No signal transmission. If the SYS indicator flickers, SYS LED the system works normally. If the PWR indicator is PWR LED always on, the device is powered on. www.qsfptek.com V2.0 3 / 10... -
Page 4: Installation Requirements
Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve, avoiding stumbling the machine box. Put on protective glasses if the environment may cause damage to your eyes. Avoid incorrect operations that may cause damage to humans or devices. www.qsfptek.com V2.0 4 / 10... - Page 5 Mounting the Switch Connecting the Power Plug the AC power cord to the switch power port on the back rear. Connect the other end of the power cord to an AC power source equipment. www.qsfptek.com V2.0 5 / 10...
- Page 6 Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. Connect the other end of the Ethernet cable to the switch RJ45 port. Connecting the SFP Port Insert the SFP module into the SFP port. www.qsfptek.com V2.0 6 / 10...
-
Page 7: Connecting The Management Ports
Insert the RJ45 connector of the console cable into the console port on the switch. Connect the D89 female connector on the other end of the console cable to the serial port on the computer host. www.qsfptek.com V2.0 7 / 10... -
Page 8: Configuring The Switch
Configuring the Switch Using the Console Port Step 1: Use the console cable to directly connect the switch console port to your computer. Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. www.qsfptek.com V2.0 8 / 10... -
Page 9: Troubleshooting
2. If the switch is too hot, check whether the air outlet and air inlet are clean and then do relative operations in section 2.3 “Requirements for Common Locations”. www.qsfptek.com V2.0 9 / 10... -
Page 10: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
