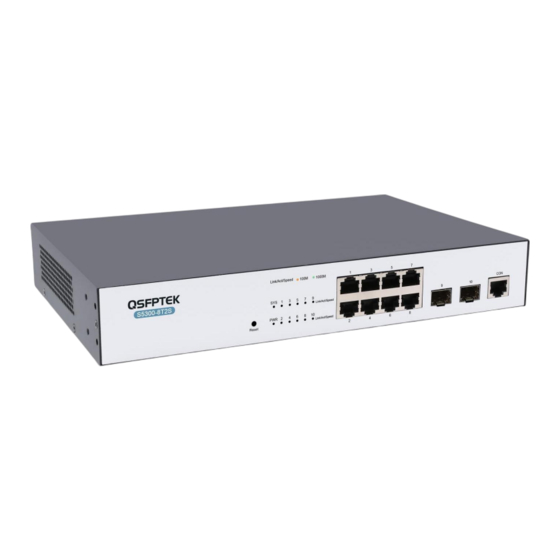

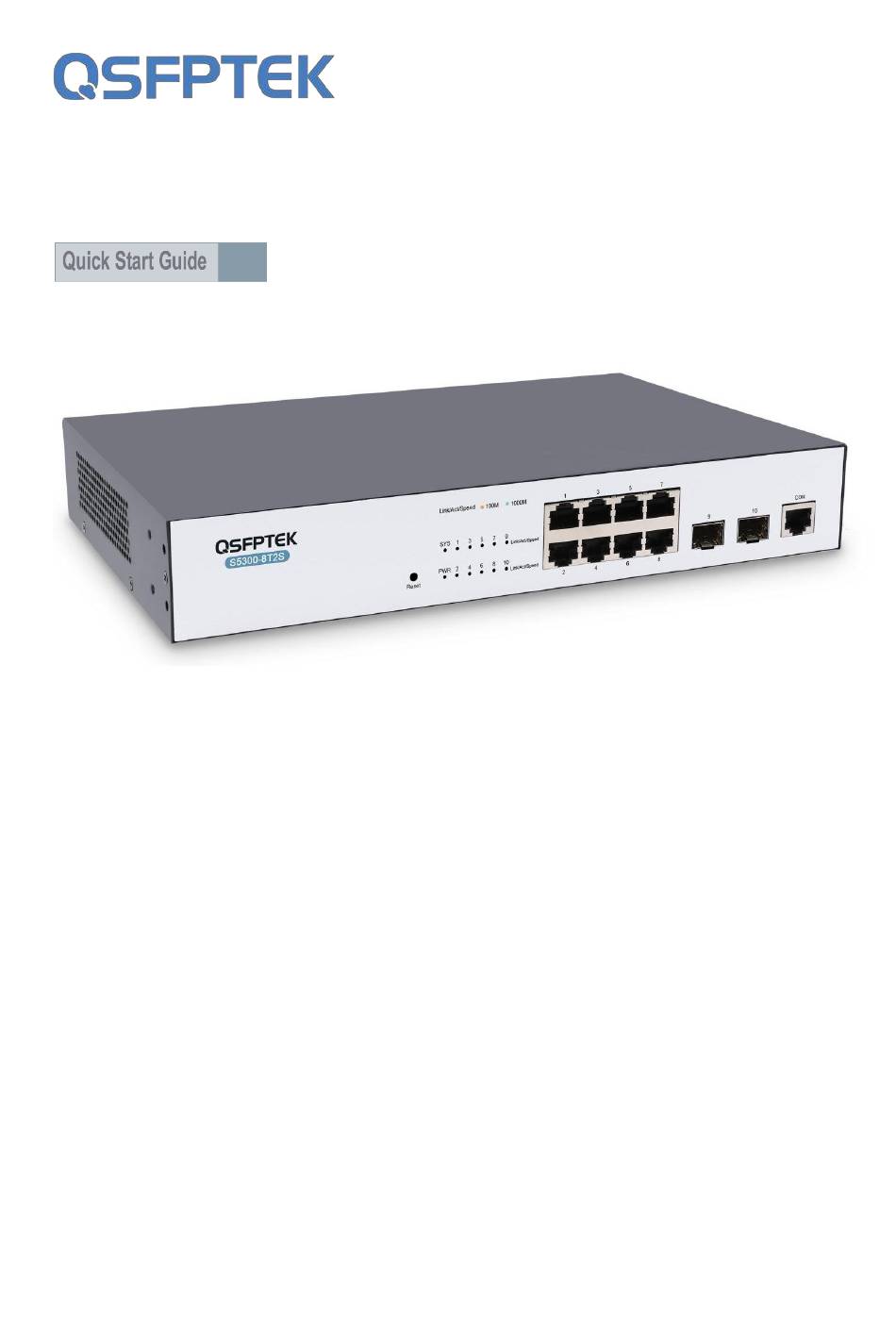

- Page 1 S5300-8T2S Quick Start Guide V2.0 8-Port Gigabit Ethernet L2+ Switch 48x 10/100/1000BASE-T RJ45 Ports, with 2x 1G SFP Uplinks, Fanless www.qsfptek.com V2.0 1 / 11...
- Page 2 The small 8-port fanless switch can be flexibly used as a desktop or rackmount switch. We appreciate your decision to select S5300-8T2S. This manual is intended to help you become acquainted with the switch design and provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
A rate of 9600bps, RJ45 interface Front Panel LEDs LEDS Status Description 1000M transmission Green No signal transmission RJ45 LED 10/100M transmission Orange No signal transmission Transmission at 1000M Mbps SFP LED Green No signal transmission www.qsfptek.com V2.0 3 / 11... -
Page 4: Installation Requirements
Put the cover in a safe place. Put tools in the right place where they are not easily falling down. Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve, avoiding www.qsfptek.com V2.0 4 / 11... - Page 5 discharged Avoid damaging devices by following the electrostatic discharge prevention procedure. S5300-8T2S Hardware Installation Manual Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed.
- Page 6 Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. Connect the other end of the Ethernet cable to the switch RJ45 port. www.qsfptek.com V2.0 6 / 11...
- Page 7 Insert the SFP module into the SFP port. Plug a fiber patch cable into the SFP transceiver. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V2.0 7 / 11...
-
Page 8: Connecting The Management Ports
Connect the DB9 female connector on the other end of the console cable to the serial port on the computer host. Configuring the Switch Configuring the Switch Using the Web-based Interface Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. www.qsfptek.com V2.0 8 / 11... - Page 9 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 9 / 11...
-
Page 10: Troubleshooting
Faults Relative to Power and Cooling System Do the following checkups to help remove the fault: 1. When the power on-off is at the “ON” location, check whether the fan works normally. If the fan www.qsfptek.com V2.0 10 / 11... -
Page 11: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
