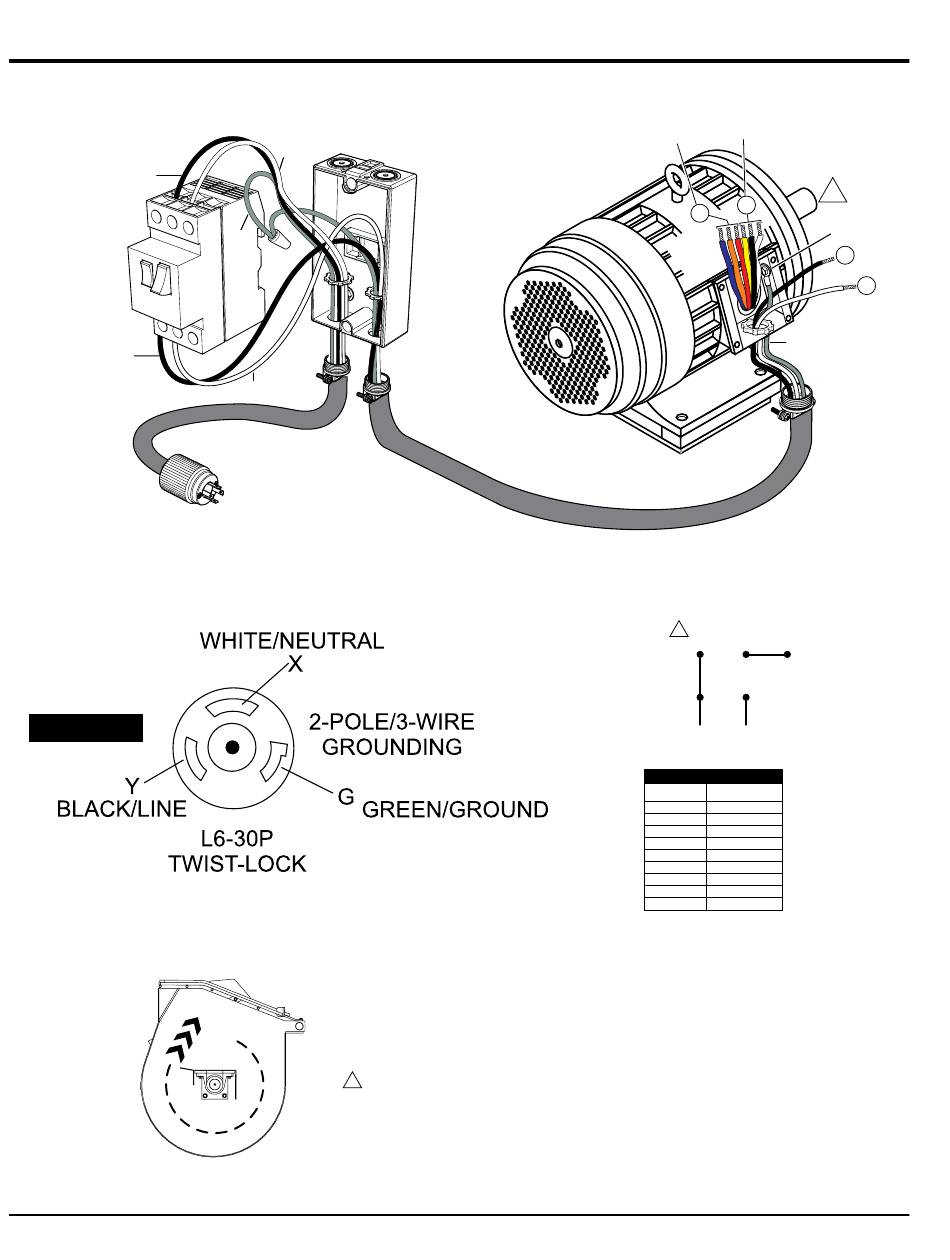

ELECTRIC MOTOR (SINGLE PHASE) WIRING DIAGRAM

2-POLE CIRCUIT
BREAKER
BLACK
L 1
L 3
L 2
T 2
T 1
BLACK
T 3
L6-30P
TWIST-LOCK
1Ø 230 VAC
MIXER DRUM
PADDLE ROTATION
TOW END VIEW
PAGE 38 — PRO12C HYDRAULIC MIXER • OPERATION MANUAL — REV. #0 (07/16/20)
WHITE
GREEN
WHITE
NOTE:
FACTORY WIRED 230 VAC.
1
1Ø ELECTRIC MOTOR
YELLOW
BLUE
BLACK
ORANGE
WHITE
RED
B
A
GREEN
230 VAC WINDING
CONNECTIONS
1
(LOW VOLTAGE)
T8 T1
T5
T4 P1
L1
L2
COLOR CODE
WIRE NO. COLOR
1 BLUE
2 WHITE
3 ORANGE
4 YELLOW
5 BLACK
6 PURPLE
7 PINK
8 RED
9 GRAY
1
GND.
POINT
A
BLACK (L1)
B
WHITE (L2)
