OPERATION AND PARTS MANUAL
EC-62S
EC-62P
ESSICK SERIES
CONCRETE MIXERS
FINAL REVISION
Revision #6 (06/30/05)

Advertisement

Table of Contents
loading

Related Manuals for MULTIQUIP EC-62S

Summary of Contents for MULTIQUIP EC-62S

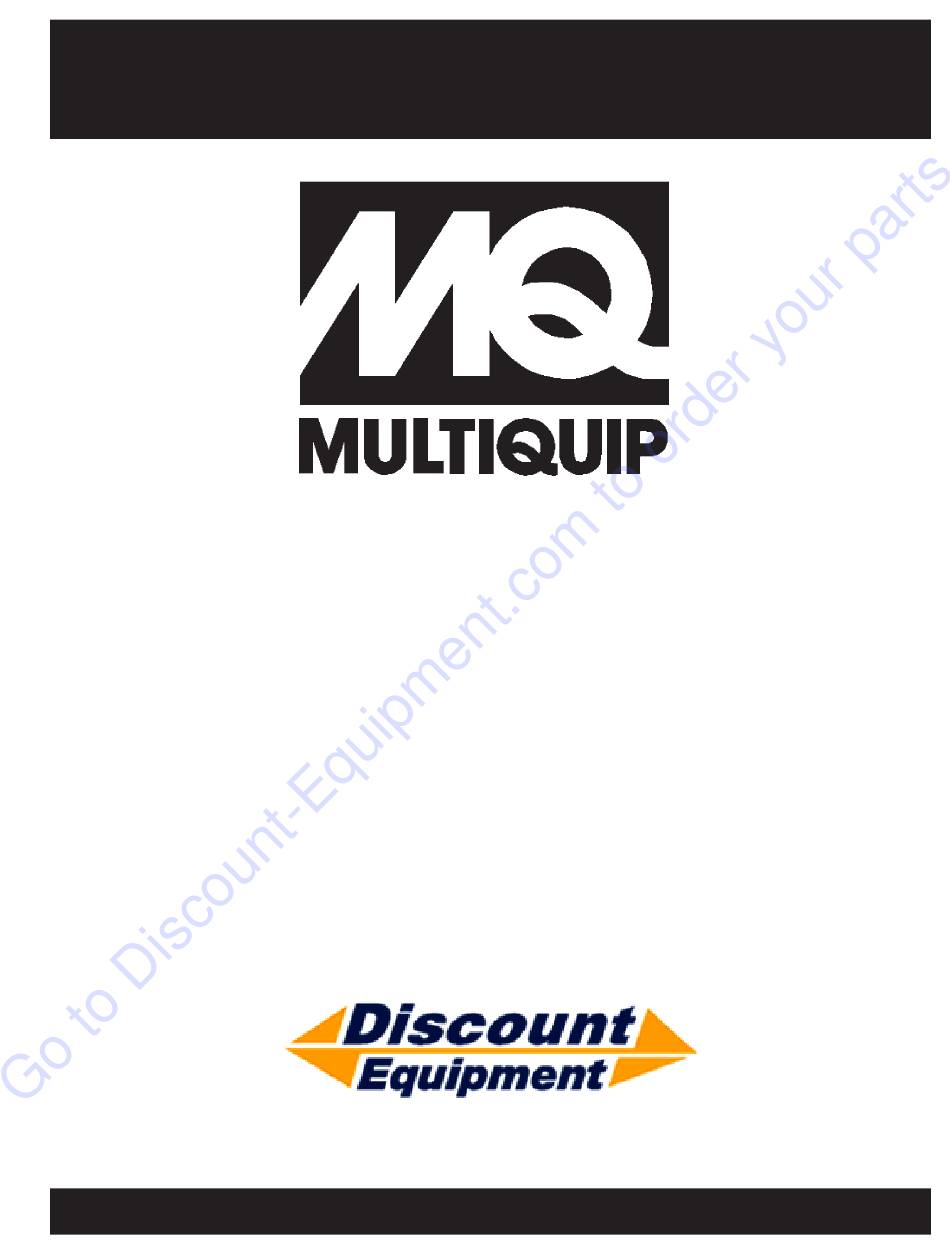

  • Page 1 OPERATION AND PARTS MANUAL EC-62S EC-62P ESSICK SERIES CONCRETE MIXERS FINAL REVISION Revision #6 (06/30/05)
  • Page 2 We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,...

  • Page 4: Table Of Contents

    EC-62P/S CONCRETE MIXER — TABLE OF CONTENTS MQ Essick EC-62P/S HONDA GX240K1HA2 ENGINE Air Cleaner Assembly......... 50-51 Concrete Mixers Camshaft Assembly ........... 52-53 Here's How To Get Help ..........3 Carburetor Assembly ......... 54-55 Table Of Contents ............. 4 Control Assembly ..........56-57 Parts Ordering Procedures ........

  • Page 5: Specifications

    EC-62P/S CONCRETE MIXER — SPECIFICATIONS i f i o i t c i r - r i r t s - r i r t s i l y , r e - r i r t s i l y , r e i l y , r e...

  • Page 6: Dimensions (Mixer)

    EC-62P/S CONCRETE MIXER — DIMENSIONS (MIXER) See Table 2 for mixer dimensions Figure 1. Mixer Dimensions EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 7...

  • Page 7: Safety Message Alert Symbols

    MQ Essick Model NOTE injury. EC-62P (Plastic) and EC-62S (Steel) Concrete Mixers. Before using these mixers, Accidental Starting ensure that the operating individual has read and...

  • Page 8: Rules For Safe Operation

    This equipment is for industrial use only. The following safety guidelines should always be used when operating the MQ Essick EC-62P/EC-62S Concrete Mixers: ■ High Temperatures – Allow the engine to cool before adding GENERAL SAFETY fuel or performing service and maintenance functions. Contact ■...
  • Page 9 EC-62P/S CONCRETE MIXER — RULES FOR SAFE OPERATION ■ NEVER run engine without air cleaner. Severe engine damage ■ NEVER disconnect any "emergency or safety devices" . may occur. These devices are intended for operator safety. Disconnection of these devices can cause severe injury, bodily harm or even ■...

  • Page 10: Operation And Safety Decals

    EC-62P/S CONCRETE MIXER — OPERATION AND SAFETY DECALS Machine Safety Decals The MQ Essick MC-62P and MC62S mixers are equipped with a number of safety decals (Figure 1A). These decals are provided for operator safety and maintenance information. The illustration below and on the next page shows these decals as they appear on the machine.

  • Page 11: General Information

    EC-62P/S CONCRETE MIXER — GENERAL INFORMATION Ensure that the extension cable is carefully laid out avoid- Application ing wet areas , sharp edges and locations where vehicles This mixer is only intended for the production of concrete . might run over it. Avoid allowing the extension cable to be The mixer must be used for its intended purpose and is not trapped underneath the mixer.

  • Page 12: Mixer Basic Components

    EC-62P/S CONCRETE MIXER — MIXER BASIC COMPONENTS Figure 2. Mixer Major Components Steel Mixing Drum — The MQ Essick EC-62S uses a 6 Safety Chain — This mixer uses a 3/16-inch thick, 72- cu. ft steel mixing drum. This drum is to be used for mixing inches long zinc-plated saftey chain.

  • Page 13: Basic Engine Components

    EC-62P/S CONCRETE MIXER — BASIC ENGINE COMPONENTS Honda GX Series Engine Shown Figure 3. Engine Controls and Components INITIAL SERVICING Fuel Valve Lever – OPEN to let fuel flow, CLOSE to stop the flow of fuel. The engine (Figure 3) must be checked for proper lubrication and Choke Lever –...

  • Page 14: Handwheel Assembly

    EC-62P/S CONCRETE MIXER — HANDWHEEL ASSEMBLY Assembly The MQ Essick EC-62P and EC-62S concrete mixers are shipped with the handwheel detached. Attach the handwheel to the mixer as shown in Figure 4. Figure 4. Handwheel Assembly EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 15...

  • Page 15: Towing Guidelines

    EC-62P/S CONCRETE MIXER — TOWING GUIDELINES ■ Check wheel mounting lug nuts with a torque wrench. Towing Safety Precautions Torque wheel lug nuts as described in the maintenance CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: section of this manual. ■ Check tightness of U-clamp nuts, torque suspension ■...

  • Page 16: Safety Chain Connection

    EC-62P/S CONCRETE MIXER — SAFETY CHAIN CONNECTION CAUTION: CAUTION: CAUTION: CAUTION: CAUTION: 2. Route the safety chain through the holes just above the tow bar, located on each side of the mixer stand. NEVER ! tow the mixer with the safety chain Loop the chain together and place under the tow bar.

  • Page 17: Electric Motor

    EC-62P/S CONCRETE MIXER — ELECTRIC MOTOR Electric Motor Electric Motor Voltage Change Switch For maintenance care and operation of the electric motor, refer ALWAYS make certain the electric motor's ON/OFF switch is in the "OFF" position and the power cord has been to your electric motor instruction booklet furnished with the electric disconnected from the power source.
  • Page 18 EC-62P/S CONCRETE MIXER — ELECTRIC MOTOR Figure 7. Single Phase Electric Motor with 12 inch Pigtail Cable EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 19...
  • Page 19 EC-62P/S CONCRETE MIXER — PRE-INSPECTION (GAS ENGINE) Before Starting 1. Read safety instructions at the beginning of manual. 2. Clean the mixer , removing dirt and dust, particularly the C ° engine cooling air inlet, carburetor and air cleaner. i r p l l a C °...
  • Page 20 EC-62P/S CONCRETE MIXER — INITIAL START-UP (GAS ENGINE) Starting the Engine (Gasoline Only) Turn the engine switch (Figure 13) to the ON position. The following steps outline the procedure for starting the engine. Depending on the type of engine employed in the mixer the steps may vary slightly.

  • Page 21: Initial Start-Up (Electric Motor)

    EC-62P/S CONCRETE MIXER — INITIAL START-UP (ELECTRIC MOTOR) 5. Place the voltage selector switch (Figure 17) in the position Initial Start-up Instructions (Electric Motor) that is in accordance with voltage listed on the electric motor's Starting nameplate. The electric motor's are shipped from the factory CAUTION: CAUTION: CAUTION:...

  • Page 22: Operation

    EC-62P/S CONCRETE MIXER — OPERATION Operation 3. Placing the shovel all the way inside the drum (Figure 21) will cause the shovel to strike the blades. This condition will make 1. To position the tub, make sure the mixer is placed on firm level the shovel rotate, and could cause injury to personnel.
  • Page 23 EC-62P/S CONCRETE MIXER — MAINTENANCE (ENGINE) Use Table 8 as a general maintenance guideline when servicing your engine. For more detail engine maintenance information, refer to the engine owner's manual supplied with your engine. t n i ) 3 ( l i O r i A ) 1 (...

  • Page 24: Maintenance (Engine)

    EC-62P/S CONCRETE MIXER — MAINTENANCE (ENGINE) Maintenance DANGER : Perform the scheduled maintenance procedures as defined by DO NOT use gasoline as a cleaning solvent, Table 6 and below: because that would create a risk of fire or DAILY explosion. ■...

  • Page 25: Maintenance (Mixer)

    EC-62P/S CONCRETE MIXER — MAINTENANCE (MIXER) Use Poleyrex EM (Exxon Mobil) or equalivant lubricant. Ball Socket and Clamp Face Maintenance Clean grease fitting, apply grease gun to fitting (1/2 shot). If the towing vechicle is equipped with a ball socket, smear Remember too much grease or injecting grease too quickly socket periodically with multi-purpose grease.
  • Page 26 EC-62P/S CONCRETE MIXER — MAINTENANCE (MIXER) Tires/Wheels/Lug Nuts Tires and wheels are a very important and critical compo- nents of the trailer. When specifying or replacing the trailer wheels it is important the wheels, tires, and axle are prop- erly matched. CAUTION: CAUTION: CAUTION:...
  • Page 27 EC-62P/S CONCRETE MIXER — MAINTENANCE (MIXER) Lug Nut Torque Requirements It is extremely important to apply and maintain proper wheel mounting torque on the trailer. Be sure to use only the fas- teners matched to the cone angle of the wheel. Proper pro- cedure for attachment of the wheels is as follows: 1.
  • Page 28 NOTE PAGE EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 29...

  • Page 29: Troubleshooting (Engine)

    EC-62P/S CONCRETE MIXER — TROUBLESHOOTING (ENGINE) diagnosis based on the Troubleshooting (Tables 10 and 11) Practically all breakdowns can be prevented by proper information shown below and on the next page. If the problem handling and maintenance inspections, but in the event of a cannot be remedied, please leave the unit just as it is and breakdown, please take a remedial action following the consult our company's business office or service plant.

  • Page 30: Troubleshooting (Engine/Mixer)

    EC-62P/S CONCRETE MIXER — TROUBLESHOOTING (ENGINE/MIXER) n i t i t a f s i s u j e r r v e l . r e i r p v i t c a l o i t i o i t u l f l f l...

  • Page 31: Explanation Of Code In Remarks Column

    EXPLANATION OF CODE IN REMARKS COLUMN How to read the marks and remarks used in this parts The contents of this parts book. catalog are subject to change NOTE without notice . Items Found In the “Remarks” Column Serial Numbers-Where indicated, this indicates a serial number range (inclusive) where a particular part is used.

  • Page 32: Suggested Spare Parts

    EC-62P/S CONCRETE MIXER — SUGGESTED SPARE PARTS EC62P/S CONCRETE MIXERS 1 TO 4 UNITS WITH HONDA GX160K1HX2, GX240K1HA2 AND ROBIN EH25- 2YR000 Qty..P/N ....Description 2 ..503859 ....V-BELT w/GAS ENGINE 2 ..EM900267 ..V-BELT w/ELECTRIC MOTOR 1 ..

  • Page 33: Nameplate And Decals

    EC-62P/S CONCRETE MIXER — NAME PLATE AND DECALS NAME PLATE AND DECALS PAGE 34 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 34 EC-62P/S CONCRETE MIXER— NAME PLATE AND DECALS NAME PLATE AND DECALS PART NO PART NAME QTY. REMARKS EM510891 DECAL, MQ ESSICK LOGO CIPDCL160 DECAL, CRUSH WARNING 504713 DECAL, SAFETY INSTRUCTIONS EM948630 DECAL, EMERGENCY STOP DCL151 DECAL, TOWING INSTRUCTIONS 13118 DECAL, POWDER COATED NAMEPLATE ............
  • Page 35 EC-62P/S — PLASTIC BARREL PLASTIC BARREL ASSY. PAGE 36 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 36 EC-62P/S— PLASTIC BARREL PLASTIC BARREL ASSY. PART NO PART NAME QTY. REMARK 510992 RING GEAR EM969013 NUT, LOCK 3/8” NC 507532 BARREL, PLASTIC 6 CU. FT. 505390 PLUG, EXPANSION 505469 KING PIN EM903063 SPINDLE BEARING 5/8" CONE .... 2 ..... REPLACES 492154 EM903026 SPINDLE BEARING CUP ......
  • Page 37 EC-62P/S — STEEL BARREL STEEL BARREL ASSY. PAGE 38 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 38 EC-62P/S — STEEL BARREL STEEL BARREL ASSY. PART NO PART NAME QTY. REMARK 505390 PLUG, EXPANSION 505469 KING PIN EM903063 SPINDLE BEARING 5/8" CONE .... 2 ..... REPLACES 492154 EM903026 SPINDLE BEARING CUP ...... 2 ..... REPLACES 492233 504095 RING GEAR EM963610 BOLT 3/8"...

  • Page 39: Main Frame Assembly

    EC-62P/S — MAIN FRAME ASSEMBLY MAIN FRAME ASSY. PAGE 40 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 40 EC-62P/S— MAIN FRAME ASSEMBLY MAIN FRAME ASSY. PART NO PART NAME QTY. REMARK 501844 GUARD, GEAR WHEEL 2101402 WASHER, LOCK 1/4" 492284 ROUND HEAD BOLT 1/4" NC 3/8 G2" ..4....REPLACES 492279 502035 DUMP GEAR 492584 NUT, LOCK 1/2" NC 490895 DUMP LATCH 492395...
  • Page 41 We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,...

  • Page 42: Axle Assembly

    EC-62P/S — AXLE ASSEMBLY AXLE ASSY. PAGE 42 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 43 EC-62P/S — AXLE ASSEMBLY AXLE ASSY. PART NO PART NAME QTY. REMARK 492397 BOLT 1/2" NC 2-1/2" G5 EM969023 LOCK NUT 5/8" NC 501030 SPRING SUPPORT 492406 BOLT 5/8" NC 1-1/2" G5 492589 NUT 1/2" NF 491928 SPRING LEAF 492584 NUT, HEX 1/2"...

  • Page 44: Cabinet Assembly

    EC-62P/S — CABINET ASSEMBLY CABINET ASSY. PAGE 44 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 45 EC-62P/S — CABINET ASSEMBLY CABINET ASSY. PART NO PART NAME QTY. REMARKS 490202 RUBBER PROTECTOR 502454 CABINET, ENGINE ASSY. INCLUDES ITEM W/ 492363 BOLT 5/16" NC X 3/4" G5 EM923023 WASHER, FLAT 5/16" 13287 LOCK NUT 8-32 ............. 6..REPLACEMENT PART ONLY 2203 WASHER, FLAT #10 ..........
  • Page 46 EC-62P/S — GAS ENGINE MOUNTING PLATE ASSEMBLY GAS ENGINE MOUNTING PLATE ASSY. PAGE 46 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 47 EC-62P/S — GAS ENGINE MOUNTING PLATE ASSEMBLY GAS ENGINE MOUNTING PLATE ASSY. PART NO PART NAME QTY. REMARKS GX160K1HX2 ENGINE, HONDA 5.5 HP GX240K1HA2 ENGINE, HONDA 8.0 HP EH252YR000 ENGINE, ROBIN 8.5 HP 490956 RING, RETAINING 500275 SQUARE KEY 492468 SET SCREW 5/16"...
  • Page 48 EC-62P/S — ELECTRIC MOTOR MOUNTING PLATE ASSEMBLY ELECTRIC MOTOR MOUNTING PLATE ASSY. PAGE 48 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 49 EC-62P/S — ELECTRIC MOTOR MOUNTING PLATE ASSEMBLY ELECTRIC MOTOR MOUNTING PLATE ASSY. PART NO PART NAME QTY. REMARKS P145K17DB45A MOTOR, ELECTRIC 1.5 HP 490956 RING, RETAINING 500275 SQUARE KEY 492468 SET SCREW 5/16" NC X 3/4" 502211 UPPER PULLEY (LARGE) 501019 SQUARE KEY 3/16"...
  • Page 50 HONDA GX240K1HA2 ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PAGE 50 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 51 HONDA GX240K1HA2 ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PART NO. PART NAME QTY. REMARKS 16271ZE2000 GASKET, ELBOW ........1 ..... INCLUDES ITEM W/ 17210ZE2515 ELEMENT, AIR CLEANER, DUAL 17218ZE2505 FILTER, OUTER 17231ZH9820 COVER, AIR CLEANER 17232891000 GROMMET, AIR CLEANER 17238ZE2310 COLLAR, AIR CLEANER 17239ZE1000...
  • Page 52 HONDA GX240K1HA2 ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PAGE 52 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 53 HONDA GX240K1HA2 ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 14100ZE2W01 CAMSHAFT ASSY........1 ..... INCLUDES ITEM W/ 14100ZE2306 CAMSHAFT 14410ZE2013 ROD PUSH 14431ZE2010 ARM VALVE ROCKER 14441ZE2000 LIFTER VALVE 14451ZE1013 PIVOT ROCKER ARM 14568ZE1000 SPRING, WEIGHT RETURN 14711ZE2000 VALVE, IN.
  • Page 54 HONDA GX240K1HA2 ENGINE — CARBURETOR ASSY. CARBURETOR ASSY. PAGE 54 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 55 HONDA GX240K1HA2 ENGINE — CARBURETOR ASSY. CARBURETOR ASSY. PART NO. PART NAME QTY. REMARKS 16010ZE2812 GASKET SET 16011ZA0931 VALVE SET, FLOAT 16013ZA0931 FLOAT SET 16016ZHW01 SCREW SET 16024ZE1811 SCREW SET, DRAIN 16028ZE0005 SCREW SET B 16028ZE2005 CHOKE SET 16100ZE2W71 CARBURETOR ASSY....1 ..INCLUDES ITEMS W/ 16124ZE0005 SCREW, THROTTLE STOP 16166ZE2W70...

  • Page 56: Control Assy

    HONDA GX240K1HA2 ENGINE — CONTROL ASSY. CONTROL ASSY. PAGE 56 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 57 HONDA GX240K1HA2 ENGINE — CONTROL ASSY. CONTROL ASSY. PART NO. PART NAME QTY. REMARKS 16551ZE2000 ARM, GOVERNOR 16555ZE2000 ROD, GOVERNOR 16561ZE2000 SPRING, GOVERNOR 16571ZE2000 SPRING, THROTTLE RETURN 16570ZE2W00 CONTROL ASSEMBLY ........ 1 ..INCLUDES ITEMS W/ 16571ZE2W00 LEVER, CONTROL 16574ZE1000 SPRING, LEVER 16575ZE2W00 WASHER, CONTROL LEVER...

  • Page 58: Crankcase Cover Assy

    HONDA GX240K1HA2 ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PAGE 58 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 59 HONDA GX240K1HA2 ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PART NO. PART NAME QTY. REMARKS 11400ZE2621 COVER ASSY., CRANKCASE ..... 1... INCLUDES ITEMS W/ (H- TYPE) (BALANCER) 11381ZE2801 GASKET, CASE COVER 15600ZG4003 CAP ASSY., OIL FILLER ......1... INCLUDES ITEMS W/ 15600735003 CAP ASSY., OIL FILLER ......

  • Page 60: Crankshaft Assy

    HONDA GX240K1HA2ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PAGE 60 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 61 HONDA GX240K1HA2ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13320ZE2611 CRANKSHAFT (L- TYPE) ......1 ..INCLUDES ITEM W/ 13351ZE2010 WEIGHT BALANCER 961006206000 BEARING, RADIAL BALL (6206) EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 61...

  • Page 62: Cylinder Barrel Assy

    HONDA GX240K1HA2 ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PAGE 62 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 63 HONDA GX240K1HA2 ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PART NO. PART NAME QTY. REMARKS 12000ZE2834 CYLINDER ASSY., BALANCER + OIL ALERT ..1 ..INCLUDES ITEMS W/ 15510ZE2043 SWITCH ASSY., OIL LEVEL 16541ZE2010 SHAFT, GOVERNOR ARM 90131896650 BOLT, DRAIN PLUG 90446KE1000 WASHER 8.2 X17X0.8 91201890003...

  • Page 64: Cylinder Head Assy

    HONDA GX240K1HA2 ENGINE — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PAGE 64 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 65 HONDA GX240K1HA2 ENGINE — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PART NO. PART NAME QTY. REMARKS 12200ZH9000 CYLINDER HEAD COMP........1 ..INCLUDES ITEMS W/ 12204ZE2306 GUIDE, VALVE, OS, OPTIONAL 12205ZE2305 GUIDE, EX. VALVE, OS, OPTIONAL 12216ZE2300 CLIP, VALVE GUIDE 12251ZE2800 GASKET, CYLINDER HEAD 12310ZE2020...

  • Page 66: Fan Cover Assy

    HONDA GX240K1HA2 ENGINE — FAN COVER ASSY. FAN COVER ASSY. PAGE 66 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 67 HONDA GX240K1HA2 ENGINE — FAN COVER ASSY. FAN COVER ASSY. PART NO. PART NAME QTY. REMARKS 16731ZE2003 CLIP, TUBE 19610ZE2010ZC COVER COMP., FAN *NH1* BLACK 19631ZE2D00 SHROUD 32197ZH8003 SUB-HARNESS 36100ZE1015 SWITCH ASSY., ENGINE STOP 90013883000 BOLT, FLANGE 6X12, CT200 90684ZA0601 CLIP, WIRE HARNESS EC-62P/S CONCRETE MIXER —...

  • Page 68: Flywheel Assy

    HONDA GX240K1HA2 ENGINE — FLYWHEEL ASSY. FLYWHEEL ASSY. PAGE 68 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 69 HONDA GX240K1HA2 ENGINE — FLYWHEEL ASSY. FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 19511ZE2000 FAN, COOLING 28450ZE2W11 PULLEY COMP., STARTER, SCREEN GRID 31100ZE2010 FLYWHEEL COMP. 90201ZE3V00 NUT, SPECIAL 16MM 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 69...
  • Page 70 HONDA GX240K1HA2 ENGINE — MUFFLER ASSY. MUFFLER ASSY. PAGE 70 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 71 HONDA GX240K1HA2 ENGINE — MUFFLER ASSY. MUFFLER ASSY. PART NO. PART NAME QTY. REMARKS 18310ZE2W00 MUFFLER 18320ZE2W01 PROTECTOR, MUFFLER 18323ZE2W00 PROTECTOR, EX. PIPE 18330ZE2W00 PIPE, EX. 18331ZE2810 CAP, MUFFLER 18333ZK6Y00 GASKET, EX. PIPE 18355ZE2010 ARRESTER, SPARK 18381ZE2W10 GASKET, MUFFLER (ARRESTER) 18381ZE2800 GASKET, MUFFLER 90013883000...
  • Page 72 HONDA GX240K1HA2 ENGINE — FUEL TANK ASSY. FUEL TANK ASSY. PAGE 72 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 73 HONDA GX240K1HA2 ENGINE — FUEL TANK ASSY. FUEL TANK ASSY. PART NO. PART NAME QTY. REMARKS 16854ZH8000 RUBBER SUPPORTER 107MM 16955ZE1000 JOINT, FUEL TANK 17510ZE2010ZD TANK COMP., FUEL *NH1*, BLACK 17620ZH7023 CAP COMP., FUEL FILLER ........1 ..INCLUDES ITEMS W/ 17631ZH7003 GASKET, FUEL FILLER CAP 17672ZE2W01...
  • Page 74 HONDA GX240K1HA2ENGINE — IGNITION ASSY. IGNITION COIL ASSY. PAGE 74 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 75 HONDA GX240K1HA2ENGINE — IGNITION ASSY. IGNITION COIL ASSY. PART NO. PART NAME QTY. REMARKS 30500ZF6W02 COIL ASSY., IGNITION 30700ZE1013 CAP ASSY., NOISE SUPPRESSOR 31512ZE2000 GROMMET, WIRE 36101ZE1010 WIRE, STOP SWITCH 370MM 90015883000 BOLT, FLANGE 6X28 EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 75...
  • Page 76 HONDA GX240K1HA2 ENGINE — PISTON ASSY. PISTON ASSY. PAGE 76 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 77 HONDA GX240K1HA2 ENGINE — PISTON ASSY. PISTON ASSY. PART NO. PART NAME QTY. REMARKS 13010ZE2013 RING SET, PISTON, STD. 13011ZE2013 RING SET, PISTON, OS 0.25, OPTIONAL 13012ZE2013 RING SET, PISTON, OS 0.50, OPTIONAL 13013ZE2013 RING SET, PISTON, 0.75, OPTIONAL 13101ZE2W00 PISTON, STANDARD 13102ZE2W00 PISTON, OS 0.25, OPTIONAL...
  • Page 78 HONDA GX240K1HA2 ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PAGE 78 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 79 HONDA GX240K1HA2 ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PART NO. PART NAME QTY. REMARKS 28400ZE2W01ZB STARTER ASSY., RECOIL *NH1*, BLK ....1 ..INCLUDES ITEMS W/ 28410ZE2W01ZB CASE COMP., RECOIL STARTER *NH1*, BLK 28421ZE2W01 PULLEY, RECOIL STARTER 28422ZE2W01 RATCHET, STARTER 28441ZE2W01 SPRING, FRICTION...
  • Page 80 HONDA GX240K1HA2 ENGINE — GEAR REDUCTION ASSY. GEAR REDUCTION ASSY. PAGE 80 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 81 We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,...
  • Page 82 HONDA GX240K1HA2 ENGINE — GEAR REDUCTION ASSY. GEAR REDUCTION ASSY. PART NO. PART NAME QTY. REMARKS 11500ZE2620 COVER ASSY, REDUCTION CASE ..... 1 ..INCLUDES ITEMS W/ 11521ZE2800 GASKET, CHAIN CASE COVER 22103ZE2620 GEAR, PRIMARY DRIVE (17T) 23220ZE2621 COUNTERSHAFT 23710ZE2621 SHAFT, P.T.O.
  • Page 83 HONDA GX240K1HA2 ENGINE — LABEL ASSY. LABEL ASSY. PAGE 82 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 84 HONDA GX240K1HA2 ENGINE — LABEL ASSY. LABELS ASSY. PART NO. PART NAME QTY. REMARKS 87521ZE2W01 EMBLEM, INTERNAL 87522ZE1810 MARK, CAUTION, EXTERNAL 87522ZH9000 LABEL, CAUTION 87528ZE2810 MARK, CHOKE, EXTERNAL 87586ZH7W00 LABEL, FUEL CAUTION 87532ZH8810 MARK, OIL ALERT EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 83...
  • Page 85 HONDA GX160K1HX2 — AIR CLEANER ASSY. AIR CLEANER ASSY. PAGE 84 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 86 HONDA GX160K1HX2 — AIR CLEANER ASSY. AIR CLEANER ASSY. PART NO. PART NAME QTY. REMARKS 16271ZE1000 GASKET, ELBOW 17210ZE1517 ELEMENT, AIR CLEANER (DUAL) ..1 ....INCLUDES ITEMS W/ 17218ZE1505 FILTER, OUTER 17230ZE1820 COVER, AIR CLEANER (DUAL) 17232891000 GROMMET, AIR CLEANER 17238ZE7010 COLLAR, AIR CLEANER 17239ZE1000...
  • Page 87 HONDA GX160K1HX2 — CAMSHAFT ASSY. CAMSHAFT ASSY. PAGE 86 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 88 HONDA GX160K1HX2 — CAMSHAFT ASSY. CAMSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 14100ZE1812 CAMSHAFT ASSEMBLY ........1 ... INCLUDES ITEMS W/ 14410ZE1010 ROD, PUSH 14431ZE1000 ARM, VALVE ROCKER 14441ZE1010 LIFTER, VALVE 14451ZE1013 PIVOT, ROCKER ARM 14568ZE1000 SPRING, WEIGHT RETURN 14711ZF1000 VALVE, INTAKE 14721ZF1000...
  • Page 89 HONDA GX160K1HX2 — CARBURETOR ASSY. CARBURETOR ASSY. PAGE 88 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 90 HONDA GX160K1HX2 — CARBURETOR ASSY. CARBURETOR ASSY. HONDA GX160K1HX2 — CARBURETOR ASSY. PART NO. PART NAME QTY. REMARKS 16010ZE1812 GASKET SET ■ 16011ZE0005 VALVE SET, FLOAT 16013ZE0005 FLOAT SET 16015ZE0831 CHAMBER SET, FLOAT ....... 1 ... INCLUDES ITEMS/ # ..................USE FROM ENGINE ..................
  • Page 91 HONDA GX160K1HX2 — CONTROL ASSY. CONTROL ASSY. PAGE 90 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 92 HONDA GX160K1HX2 — CONTROL ASSY. CONTROL ASSY. PART NO. PART NAME QTY. REMARKS 16500ZH8823 CONTROL ASSEMBLY, REMOTE......1.... INCLUDES ITEMS W/ 16551ZL0000 ARM, GOVERNOR 16555ZE1000 ROD, GOVERNOR 16561ZE1020 SPRING GOVERNOR 16562ZE1020 SPRING, THROTTLE RETURN 16571ZH8020 LEVER, CONTROL 16574ZE1000 SPRING, LEVR 16575ZH8000 WASHER, CONTROL LEVER 16576891000...
  • Page 93 HONDA GX160K1HX2 — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PAGE 92 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 94 HONDA GX160K1HX2 — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PART NO. PART NAME QTY. REMARKS 11300ZE1641 COVER ASSEMBLY, CRANKCASE (U- TYPE) ..1 ....INCLUDES ITEMS W/ 11381ZH8801 GASKET, CASE COVER (NON- ASBESTOS) 15600ZE1003 CAP ASSEMBLY, OIL FILLER .......1 ....INCLUDES ITEMS W/ # 15600ZG4003 CAP ASSEMBLY, OIL FILLER .......1 ....INCLUDES ITEMS W/ % 10 %# 15625ZE1003...
  • Page 95 HONDA GX160K1HX2 — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PAGE 94 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 96 HONDA GX160K1HX2 — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13310ZE1622 CRANKSHAFT, Q- TYPE EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 95...
  • Page 97 HONDA GX160K1HX2 — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PAGE 96 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 98 HONDA GX160K1HX2 — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PART NO. PART NAME QTY. REMARKS 12000ZH8811 CYLINDER ASSEMBLY, OIL ALERT ....1.... INCLUDES ITEMS W/ 15510ze1033 SWITCH ASSEMBLY, OIL LEVEL 16510ZE1000 GOVERNOR ASSEMBLY ........1.... INCLUDES ITEMS W/ # 16511ZE1000 WEIGHT, GOVERNOR 16512ZE1000 HOLDER, GOVERNOR WEIGHT...
  • Page 99 HONDA GX160K1HX2 — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PAGE 98 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 100 HONDA GX160K1HX2 — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PART NO. PART NAME QTY. REMARKS 12210ZH8000 CYLINDER HEAD ..........1.... INCLUDES ITEMS W/ 12204ZE1306 GUIDE, VALVE OS (OPTIONAL 12205ZE1315 GUIDE, EXHAUST VALVE OS (OPTIONAL) ..1.... INCLUDES ITEM W/ % 12216ZE5300 CLIP, VALVE GUIDE 12251ZF1800...
  • Page 101 HONDA GX160K1HX2 — FAN COVER ASSY. FAN COVER ASSY. PAGE 100 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 102 HONDA GX160K1HX2 — FAN COVER ASSY. FAN COVER ASSY. PART NO. PART NAME QTY. REMARKS 19610ZE1000ZC COVER, FAN "NH1" (BLACK) 19611ZH8810 PLATE, SIDE (OIL ALERT) 90601ZH7013 CLIP, HARNESS 19630ZH8000 SHROUD 32197ZH8003 SUB- HARNESS 36100ZE1015 SWITCH ASSEMBLY, ENGINE STOP 90013883000 BOLT, FLANGE 6 X12 (CT200) 90022888010 BOLT, FLANGE 6 X20 (CT200) 34150ZH7003...
  • Page 103 HONDA GX160K1HX2 — FLYWHEEL ASSY. FLYWHEEL ASSY. PAGE 102 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 104 HONDA GX160K1HX2 — FLYWHEEL ASSY. FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 13331357000 KEY, SPECIAL WOODRUFF (25 X18) 19511ZE1000 FAN, COOLING 28451ZH8003 PULLEY, STARTER 31100ZE1010 FLYWHEEL 31100ZE1810 FLYWHEEL, LAMP 90201878003 NUT, SPECIAL 14MM EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 103...
  • Page 105 HONDA GX160K1HX2 — FUEL TANK ASSY. FUEL TANK ASSY. PAGE 104 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 106 HONDA GX160K1HX2 — FUEL TANK ASSY. FUEL TANK ASSY. PART NO. PART NAME QTY. REMARKS 16854ZH8000 RUBBER, SUPPORTER 107MM 16955ZE1000 JOINT, FUEL TANK 17510ZE1020ZB TANK, FUEL *R8* (BRIGHT RED) 17510ZE1020ZF TANK, FUEL *NH1* (BLACK) 17620ZH7023 CAP, FUEL FILLER ..........1 ... INCLUDES ITEM W/ 17631ZH7003 GASKET, FUEL FILLER CAP 91353671003...
  • Page 107 HONDA GX160K1HX2 — IGNITION COIL ASSY. IGNITION COIL ASSY. PAGE 106 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 108 HONDA GX160K1HX2 — IGNITION COIL ASSY. IGNITION COIL ASSY. PART NO. PART NAME QTY. REMARKS 30500ZE1043 COIL ASSEMBLY, IGNITION 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 36101ZE1010 WIRE, STOP SWITCH 370MM 957010602500 BOLT, FLANGE 6 X25 EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 107...
  • Page 109 HONDA GX160K1HX2 — MUFFLER ASSY. MUFFLER ASSY. PAGE 108 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 110 HONDA GX160K1HX2 — MUFFLER ASSY. MUFFLER ASSY. PART NO. PART NAME QTY. REMARKS 18310ZF1000 MUFFLER 18310ZH8810 MUFFLER (OPTIONAL) 18320ZF1H01 PROTECTOR, MUFFLER 18355ZE1000 ARRESTER, SPARK (OPTIONAL) 18381ZH8800 GASKET, MUFFLER 90050ZE1000 SCREW, TAPPING 5 X 8 (OPTIONAL 90055ZE1000 SCREW, TAPPING 4 X 6 (OPTIONAL) 020108060 NUT, HEX.
  • Page 111 HONDA GX160K1HX2 — PISTON ASSY. PISTON ASSY. PAGE 110 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 112 HONDA GX160K1HX2 — PISTON ASSY. PISTON ASSY. PART NO. PART NAME QTY. REMARKS 13010ZF1023 RING SET, PISTON (STANDARD) ......1 ..USE UP TO ENG S/N 5495899 13010ZH8941 RING SET, PISTON (STANDARD) ......1 ..USE FROM ENG S/N 5495900 13011ZF1023 RING SET, PISTON (OS 0.25) .........
  • Page 113 HONDA GX160K1HX2 — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PAGE 112 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 114 HONDA GX160K1HX2 — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PART NO. PART NAME QTY. REMARKS 28400ZH8013ZB STARTER ASSY., RECOIL "NH1" BLACK ....1 ....INCLUDES ITEM W/ 28410ZH8003ZB CASE, RECOIL STARTER "NH1" BLACK 28420ZH8013 REEL, RECOIL STARTER 28422ZH8013 RATCHET, STARTER 28433ZH8003 GUIDE, RATCHET 28441ZH8003 SPRING, FRICTION 28442ZH8003...
  • Page 115 HONDA GX160K1HX2 — GEAR REDUCTION ASSY. 1/6 GEAR REDUCTION ASSY. PAGE 114 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 116 HONDA GX160K1HX2 — GEAR REDUCTION ASSY. 1/6 GEAR REDUCTION ASSY. PART NO. PART NAME QTY. REMARKS 21521883741 CASE REDUCTION 21591ZH8740 GASKET, REDUCTION CASE 21621883741 COVER, REDUCTION 21692ZH8800 GASKET, REDUCTION COVER 23710883740 SHAFT, PTO 90002883740 BOLT, BREATHING 90131883000 BOLT, DRAIN 90131896650 BOLT, DRAIN 91202883005 OIL SEAL 25 X41 X 6...
  • Page 117 HONDA GX160K1HX2 — ENGINE LABELS ASSY. ENGINE LABELS ASSY. PAGE 116 —EC-62P/S CONCRETE MIXERS — PARTS & OPERATION MANUAL — REV. #6 (06/30/05)
  • Page 118 HONDA GX160K1HX2 — ENGINE LABELS ASSY. ENGINE LABELS ASSY. PART NO. PART NAME QTY. REMARKS 87521ZH8020 ENBLEM 5.5 87522ZH9000 LABEL, CAUTION 87528ZE1810 MARK, CHOKE 87530ZH8810 LABEL, SPECIFICATION (EXTERNAL) 87532ZH8810 MARK, OIL ALERT (E) 887586ZH7W00 LABEL, FUEL CAUTION EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 117...
  • Page 119 NOTE PAGE EC-62P/S CONCRETE MIXER — PARTS & OPERATION MANUAL — REV. #6 (06/30/05) — PAGE 119...
  • Page 120 We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,...
