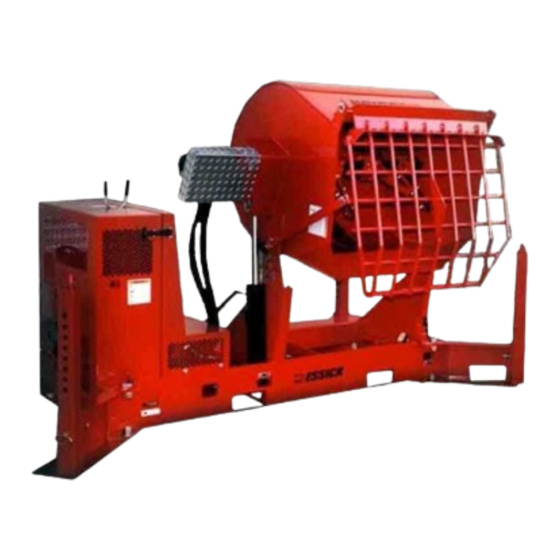

Hydraulic plaster/mortar mixer, honda gx390rt2-qnb2 gasoline engine/teco westinghouse 5hp electric motor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
SERIES
MODELS
PRO12C/PRO12E51C
PRO12E53C/PRO12E53-460VC
HYDRAULIC PLASTER/MORTAR MIXER
(HONDA GX390RT2-QNB2 GASOLINE ENGINE/
TECO WESTINGHOUSE 5HP ELECTRIC MOTOR)
Revision #0 (07/16/20)
To find the latest revision of this publication or
To find the latest revision of this
associated parts manual, visit our website at:
publication, visit our website at:
www.multiquip.com
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO12C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MULTIQUIP PRO12C
