Amcrest AMDV5M32-6TB Quick Start Manual page 26

Intrusion: Allows the device to trigger an event if an object, such as a human or vehicle, appears
or crosses a set intrusion area.
For more information about the AI features available
https://amcrest.com/support

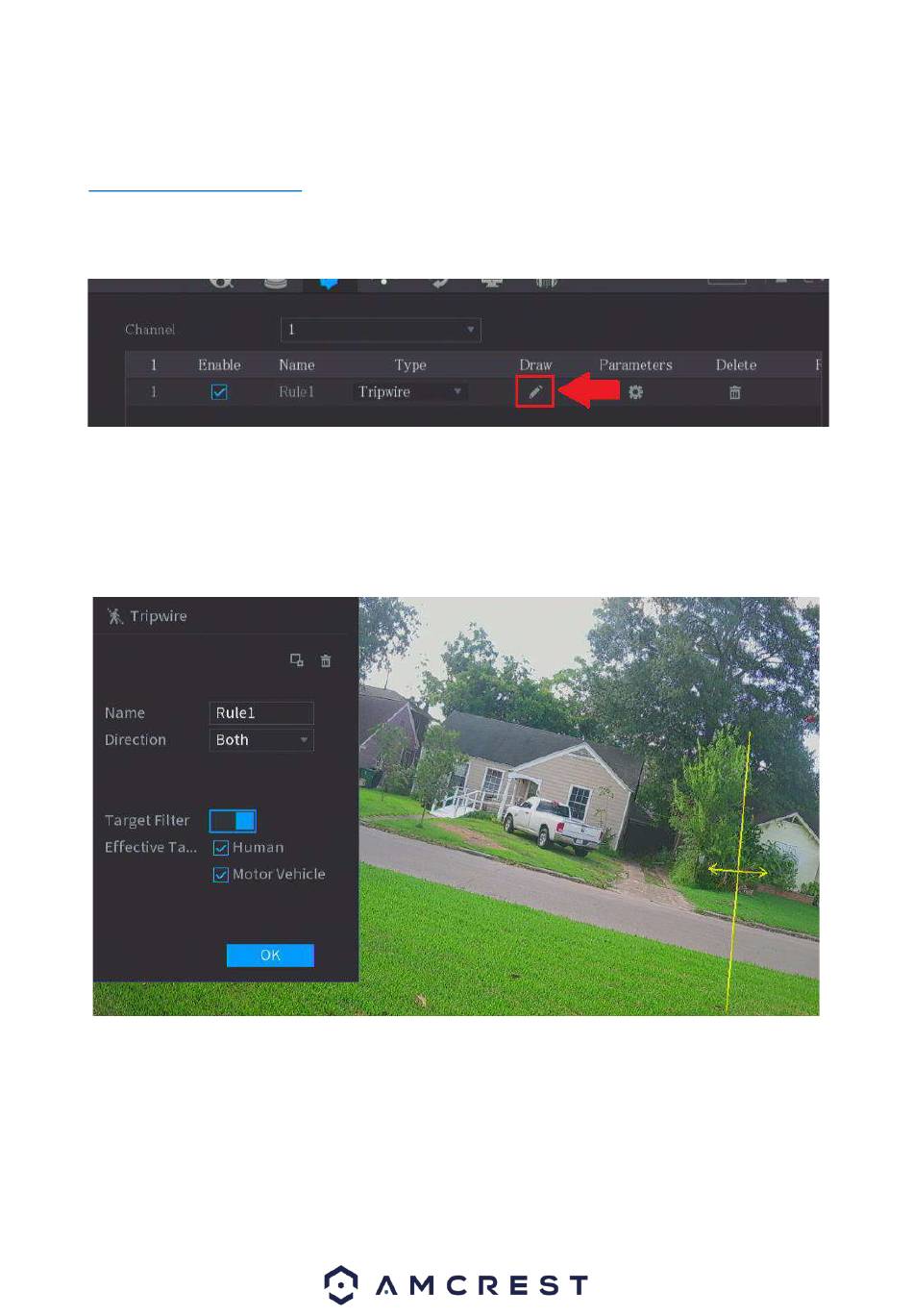

2. To configure an IVS rule, click on the Type dropdown menu to select an available IVS rule. Once
a rule is selected, click on the Draw (pencil) icon, to begin configuring the rule.
3. Use your mouse to draw an area or line on the interface. Click on the interface and use your
mouse to draw an area or line, click your mouse on the interface when done, then right click to set
the area or line to the system.
If you would like to add a name for the rule, enter a name in the Name box. The Direction drop
down menu allows you to choose a direction in which the rule will be triggered. Object filters
(Human and Motor Vehicle) can be enabled for accuracy. Click OK.
The Target Filter option is used to set a minimum or maximum detection area. It is recommended
to leave this as default; however, it can be modified. Use the Clear (trash can) icon to remove a
drawn area or line. The Target Filter toggle switch enables object filtering options that allow you
the ability to determine if a human or vehicle has entered the area. If Human is chosen, the rule
will only be triggered if a human figure is detected. If Vehicle is chosen, the rule will only be
triggered if a vehicle is detected by the system. Both object filtering options can be used
simultaneously if needed.
on your device, please visit:
26
