INSTALLATION MANUAL
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF

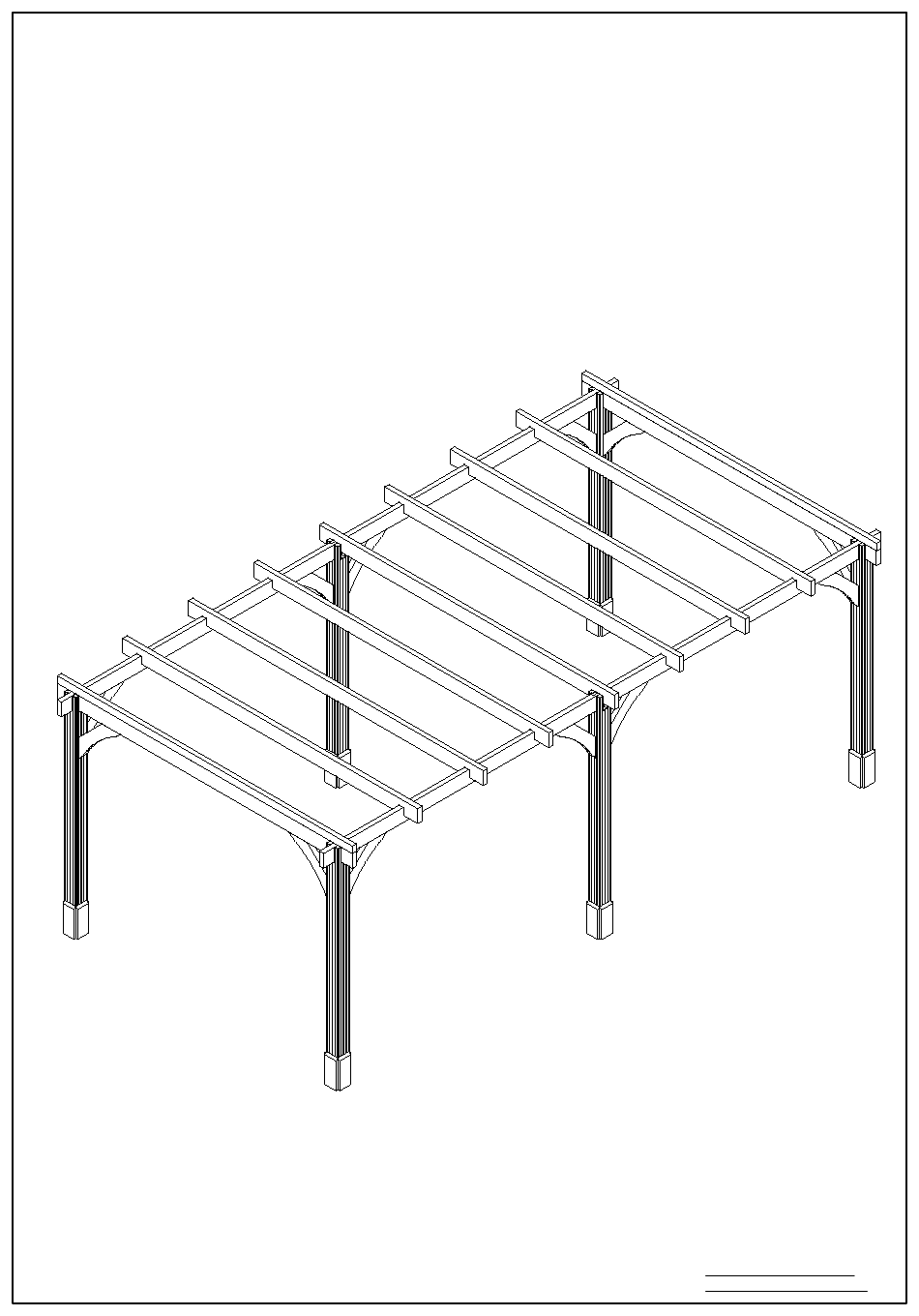

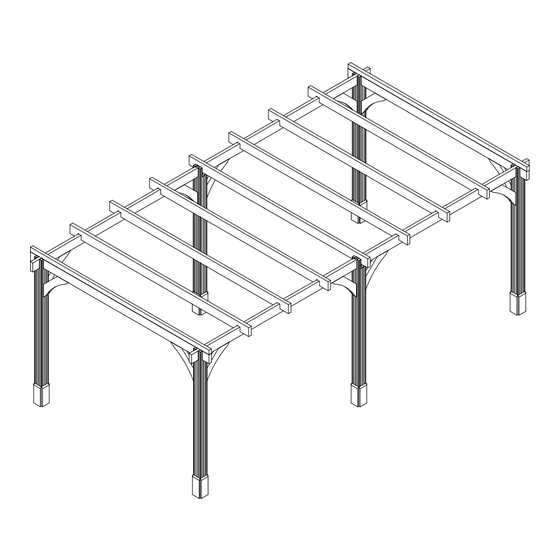

ATLAS PERGOLA
3.2m x 6.2m
P5-3060PRG
Unique Product Reference Number:
__________________________________
V2
Customer Service Department:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATLAS P5-3060PRG and is the answer not in the manual?

Questions and answers

Related Manuals for Dunster House ATLAS P5-3060PRG

Summary of Contents for Dunster House ATLAS P5-3060PRG

  • Page 1 INSTALLATION MANUAL ATLAS PERGOLA 3.2m x 6.2m P5-3060PRG Unique Product Reference Number: Manufacturer: Dunster House Ltd. Caxton Road __________________________________ Bedford Customer Service Department: Bedfordshire cs@dunsterhouse.co.uk England www.dunsterhouse.co.uk MK41 0LF...

  • Page 2: You Will Need

    In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: Dunster House Ltd, Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England. Our Customer Service department is open 9 a.m. to 5 p.m. Monday to Friday. Please include your Sales Order (SO) number or post code in any correspondence with Customer Service to enable them to locate your file.
  • Page 3 24x Post Trim (Pressure Treated) 45x70x3200.A 2x Top Beam (Pressure Treated) 3200 ACCESSORIES Description - Fixings M10 X 120mm Hex. Head Screw and Washer 70x70x55 L Bracket Customer Instructions M10 Washers Dunster House Logo 35mm Screws 100mm Screws Page 3...
  • Page 4 Assembly Steps for Atlas Pergola 6.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** x2 45x140x3095.A 120x120x2260.A x2 45x140x3050.A 45x140x3200.A 100mm Screws • Prepare 2 assemblies of the Beams and Posts as shown in the diagram below. Step 1.
  • Page 5 Assembly Steps for Atlas Pergola 6.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** M10 Washer 45x140x630.A 35mm Screws 70x70x55 Bracket M10x120mm Hex Head Screws Step 2. • Make sure your posts are level vertically (use a spirit level). •...
  • Page 6 Assembly Steps for Atlas Pergola 6.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x3200.A 35mm Screws 45x70x3200.A 100mm Screws 20x120x300.A Step 3. • Connect (7x) 45x140x3200.A Rafters and (2x) 45x70x3200.A Top beams by placing them onto the assembled frame as shown in the diagram below.
  • Page 7 INSTALLATION MANUAL Additional Wall Panels Atlas Pegola IMPORTANT INFORMATION Please remove component 45x140x630.A (Brace) if components CP1 and or CP8 are being installed. Please note: 1. These instructions will enable you to assemble additional wall panels to your Pergola. The configuration of the panels shown on the illustrations may very from the product you have purchased. 2.
  • Page 8 Components required for Additional Wall Panels Atlas Pergola 6.2m x 3.2m Panel CP1 Panel CP2 Pressure Treated Pressure Treated Panel CP8 Pressure Treated Page 8...
  • Page 9 Components required for Additional Wall Panels for Atlas Pergola 15x70x2120 Full Wall Panel Trim 2120 15x70x1065 1065 Half Wall Panel Trim (Cut from full height trim) 15x70x1035 1035 Glass Wall Panel Trim (Cut from full height trim) 20x100x908 Glass Wall Panel Sill 15x70x1085 1085 Half Wall Panel Trim...
  • Page 10 Assembly Steps for Atlas Pergola 6.2m x 3.2m Full height wall panels assembly ** Quantity of components will vary, Panel CP1 M10 Shield Anchors depending on your purchase. 60mm Screws M10x28 Washers M10x110 Bolts Step 1. Position the Panel CP1 between the Posts as shown in the diagram below. •...
  • Page 11 Assembly Steps for Atlas Pergola 6.2m x 3.2m Full height wall panels assembly 15x70x2120 Trim 35mm Screws Step 2. • Fix 15x70x2120 Trims using (8) 35mm screws per trim on the outside of the wall panels. • Fix 15x70x2120 Trims using (8) 35mm screws per trim on the inside of the wall panels. The Trims will cover the joints between the panels.
  • Page 12 Assembly Steps for Atlas Pergola 6.2m x 3.2m Half height wall panels assembly ** Quantity of components will vary, Panel CP2 M10 Shield Anchors depending on your purchase. 25x70x1065 Trim M10x28 Washers M10x110 Bolts Step 1. • Position the Panel CP2 between the Posts as shown in the diagram below. Join (2) Panel CP2 using (6) 60mm screws.
  • Page 13 Assembly Steps for Atlas Pergola 6.2m x 3.2m Half height wall panels assembly 20x100x908 Sills 15x70x1065 & 15x70x1085 35mm Screws Step 2. • Position 20x100x908 Sills on top of Panels CP2 so that they are flush with the panel frame from inside the gazebo.
  • Page 14 Assembly Steps for Atlas Pergola 6.2m x 3.2m Window panels assembly Panel CP8 35mm Screws **Assemble half height wall panels according to 15x70x1035 the instructions given on the previous pages. 60mm Screws • Remove the beading trims from one side of Panel CP8 frames. Step 1.
  • Page 15 Assembly Steps for Atlas Pergola 6.2m x 3.2m 40mm Pin Nail 4x825x960 TGLASS 19x25x840 19x25x915 Step 1: Place silicone around the edge of the frame. Silicone Please note: The glass is a smaller size compared to panel frame to compensate for timbers Silicone Silicone contracting, swelling and glass not being...
