INSTALLATION MANUAL
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF

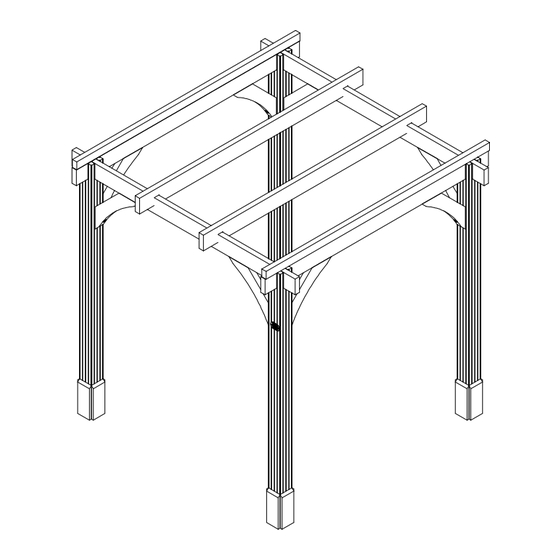

ATLAS PERGOLA
2.3m x 2.3m
P5-2323PRG
Unique Product Reference Number:
__________________________________
V2
Customer Service Department:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk
Advertisement
Related Manuals for Dunster House ATLAS P5-2323PRG
Summary of Contents for Dunster House ATLAS P5-2323PRG
- Page 1 INSTALLATION MANUAL ATLAS PERGOLA 2.3m x 2.3m P5-2323PRG Unique Product Reference Number: Manufacturer: Dunster House Ltd. Caxton Road __________________________________ Bedford Customer Service Department: Bedfordshire cs@dunsterhouse.co.uk England www.dunsterhouse.co.uk MK41 0LF...
-
Page 2: You Will Need
In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: Dunster House Ltd, Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England. Our Customer Service department is open 9 a.m. to 5 p.m. Monday to Friday. Please include your Sales Order (SO) number or post code in any correspondence with Customer Service to enable them to locate your file. - Page 3 2x Post (Pressure Treated) 2300 20x120x300.A 16x Post Trim (Pressure Treated) 45x140x630.A 8x Brace (Pressure Treated) ACCESSORIES Description Bracket L 70x70x55 M10x120mm Hex. Head Screws for Braces M10x20mm Washers for Braces Customer Instructions Dunster House Logo 100mm Screw 35mm Screw Page 3...
- Page 4 Assembly Steps for Atlas Pergola 2.3m x 2.3m **Avoid splitting timber parts by pre-drilling all screw holes** 120x120x2260.A 45x140x2300.A 100mm Screws • Prepare 2 assemblies of the Beams and Posts as shown in the diagram below. Step 1. • Fix by screwing through the Posts into the Beams using (2x) 100mm screws per Post. 4x- 45x140x3200.A 100 mm Screws 4x- 120x120x2260.A...
- Page 5 Assembly Steps for Atlas Pergola 2.3m x 2.3m **Avoid splitting timber parts by pre-drilling all screw holes** 35mm Screws M10 Washer 45x140x630.A M10x120mm Hex Head Screws 70x70x55 Bracket Step 3. • Make sure your posts are level vertically (use a spirit level). •...
- Page 6 Assembly Steps for Atlas Pergola 2.3m x 2.3m **Avoid splitting timber parts by pre-drilling all screw holes** 45x140x2300.A 35mm Screws 45x70x2300.A 100mm Screws • Connect (2) 45x140x2300.A Rafters and (2) 45x70x2300.A by placing them onto the assembled frame as Step 4: shown in the diagram below •...
- Page 7 INSTALLATION MANUAL Additional Wall Panels Atlas Pergola IMPORTANT INFORMATION Please remove component 45x140x630.A (Brace) if components CP1 and or CP8 are being installed. Please note: 1. These instructions will enable you to assemble additional wall panels to your Pergola. The configuration of the panels shown on the illustrations may very from the product you have purchased. 2.
- Page 8 Components required for Additional Wall Panels Atlas Pergola 2.3m x 2.3m Panel CP1 Panel CP2 Pressure Treated Pressure Treated Panel CP8 Pressure Treated Page 8...
- Page 9 Components required for Additional Wall Panels for Atlas Pergola 2.3m x 2.3m 15x70x2120 Full Wall Panel Trim 2120 15x70x1065 1065 Half Wall Panel Trim (Cut from full height trim) 15x70x1035 1035 Glass Wall Panel Trim (Cut from full height trim) 20x100x908 Glass Wall Panel Sill 15x70x1085...
- Page 10 Assembly Steps for Atlas Pergola 2.3m x 2.3m Full height wall panels assembly ** Quantity of components will vary, Panel CP1 M10 Shield Anchors depending on your purchase. 60mm Screws M10x28 Washers M10x110 Bolts Step 1. • Position the Panel CP1 between the Posts as shown in the diagram below. •...
- Page 11 Assembly Steps for Atlas Pergola 2.3m x 2.3m Full height wall panels assembly 15x70x2120 Trim 35mm Screws Fix 15x70x2120 Trims using (x8) 35mm screws per trim on the outside of the wall panels. Step 2. • Fix 15x70x2120 Trims using (x8) 35mm screws per trim on the inside of the wall panels. •...
- Page 12 Assembly Steps for Atlas Pergola 2.3m x 2.3m Half height wall panels assembly ** Quantity of components will vary, Panel CP2 M10 Shield Anchors depending on your purchase. 60mm Screws M10x28 Washers M10x110 Bolts Step 1. • Position the Panel CP2 between the Posts as shown in the diagram below. •...
- Page 13 Assembly Steps for Atlas Pergola 2.3m x 2.3m Half height wall panels assembly 20x100x908 Sills 15x70x1065 and 15x70x1085 35mm Screws Position 20x100x908 Sills on top of Panels CP2 so that they are flush with the panel frame from inside the Step 2.
- Page 14 Assembly Steps for Atlas Pergola 2.3m x 2.3m Window panels assembly Panel CP8 35mm Screws **Assemble half height wall panels according to 60mm Screws the instructions given on the previous pages. 15x70x1035 Trim • Remove the beading trims from one side of Panel CP8 frames. Step 1.
- Page 15 Assembly Steps for Atlas Pergola 2.3m x 2.3m 40mm Pin Nail 4x825x960 TGLASS 19x25x840 19x25x915 Step 1: Place silicone around the edge of the frame. Silicone Please note: The glass is a smaller size compared to panel frame to compensate for timbers Silicone Silicone contracting, swelling and glass not being...
