INSTALLATION MANUAL
Please note:
1. Please read this manual carefully and in conjunction with the main gazebo manual before proceeding with
the construction of your SideShed. Build your SideShed at the same time as the main gazebo.
2. If you have bought shingles, please use our shingle installation instructions included in the main gazebo
manual.
3. Fixings are supplied with your SideShed.
4. This manual shows installation on the right side of your main gazebo, but can be installed on the left by
swapping relevant panels.
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF

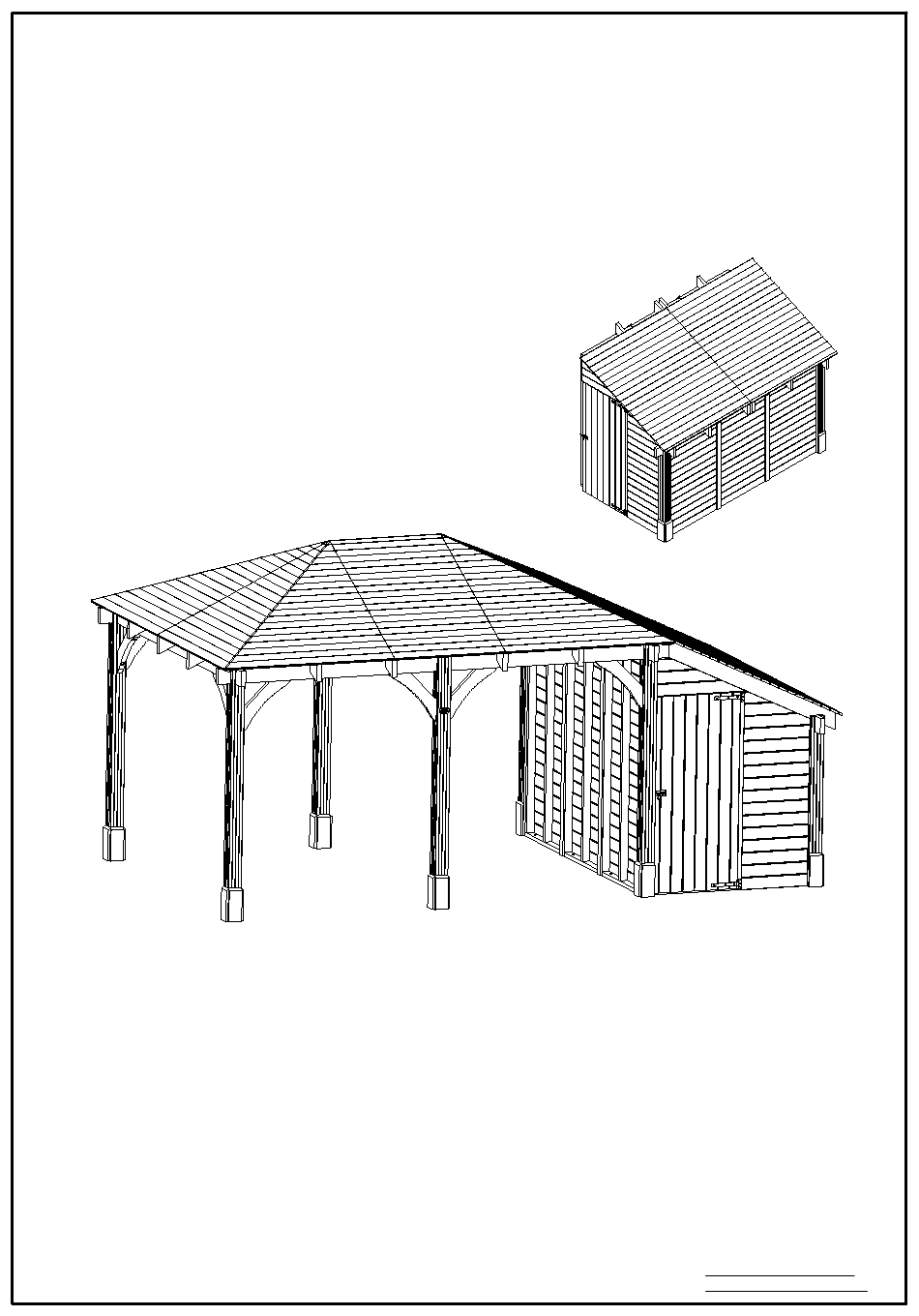

Leviathan SideShed 1.5m x 3.0m
P5-1530SS
Unique Product Reference Number:
__________________________________
Customer Service Department:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Leviathan SideShed P5-1530SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dunster House Leviathan SideShed P5-1530SS

  • Page 1 3. Fixings are supplied with your SideShed. 4. This manual shows installation on the right side of your main gazebo, but can be installed on the left by swapping relevant panels. Unique Product Reference Number: Manufacturer: Dunster House Ltd. Caxton Road __________________________________ Bedford Customer Service Department: Bedfordshire cs@dunsterhouse.co.uk...
  • Page 2 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: Dunster House Ltd, Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England. Our Customer Service department is open 9 a.m. to 5 p.m. Monday to Friday. Please include your Sales Order (SO) number or post code in any correspondence with Customer Service to enable them to locate your file.
  • Page 3 Page 3 Components required for Leviathan SideShed 1.5m x 3.0m LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm MFP- 2400x1200x10 MFP Board 1200 2400 MFP- 2400x305x10 MFP Board 2400 MFP- 1505x390x10 MFP Board 1505 LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm F.1597...
  • Page 4 Page 4 Components required for Leviathan SideShed 1.5m x 3.0m LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm GAZ-PT15351756 1756 LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 15x70x2120 Trim 2120 15x70x1385 Trim 1385 LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 15x70x1803.A...
  • Page 5 Page 5 Components required for Leviathan SideShed 1.5m x 3.0m LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 20x140x618.A Cover Trim LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 20x140x620.B Cover Trim LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 35x35x1470 Bearer 1470...
  • Page 6 Page 6 Components required for Leviathan SideShed 1.5m x 3.0m LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 45x140x1977 Rafter 1977 45x140x1807 Rafter 1807 WIDTH_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 20x120x300.A Post Trim FIXINGS PARTS LIST PART NUMBER DESCRIPTION Nail 40mm Shank Nails...
  • Page 7 Page 7 Components required for Leviathan SideShed 1.5m x 3.0m WIDTH_mm THK_mm WIDTH_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm CP1 - P5 Panel 2120 PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm 84x910x2120 - CP1 - P5 Panel 1385 P5 PANEL 50x908x1385 WIDTH_mm THK_mm...
  • Page 8 Page 8 Components required for Leviathan SideShed 1.5m x 3.0m LNG_mm THK_mm WIDTH_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm CPSS3 P5 Panel LNG_mm THK_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm PART NUMBER DESCRIPTION THK_mm WIDTH_mm LNG_mm CPSS4 P5 Panel CPSS5 P5 Panel 1786...
  • Page 9 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 9 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 1 • Fix 3x CP1-50x908x1385 Panels together as shown in the diagram below, using 60mm screws. Components Required •...
  • Page 10 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 10 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 2 Components Required PART NUMBER CPSS4 CPSS1 CPSS2 CPSS3 FLUSH CPSS4 CPSS2 CPSS5 FLUSH CPSS6 SCREW 60 mm •...
  • Page 11 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 11 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 3 • Position the constructed outer wall using 2x 45x140x1807 outer rafters and loosely fix to the main gazebo Components Required using 100mm screws to hold in place.
  • Page 12 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 12 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 4 • Position and fix the rear wall assembly to the SCREW 60 mm Components Required 120x120 posts and outer rafter as shown, using PART NUMBER 60mm screws.
  • Page 13 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 13 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 5 • Use 20x140 cover trims to correctly position the four central rafters of your SideShed as shown. Components Required PART NUMBER •...
  • Page 14 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 14 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 6 • Fix 2x 35x35x1470 together using 60mm screws evenly spaced. Components Required PART NUMBER • Position and fix your 35x35x1470 and 35x35x1250 bearers as shown in the diagram below, using 1x 35x35x1470 100mm screw per bearer.
  • Page 15 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 15 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 7 CP1 - 84x910x2120 - P5 PANEL Components Required PART NUMBER CP1 - 84x910x2120 - P5 PANEL • Fix 3x CP1 - 84x910x2120 - P5 PANEL as FLUSH shown using 60mm screws.
  • Page 16 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 16 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 8 • Fix the bearer assembly to the wall assembly constructed in the previous step as shown, using 9x 100mm Components Required screws.
  • Page 17 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 17 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 9 • Fix 2x F.371597 flush with the end of the SideShed rafters, shown in the diagram, using 3x 40mm nails Components Required per roof board.
  • Page 18 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 18 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 10 • Fix 2x 20x140x665, 2x 20x140x618.A and 1x 20x140x45 to the SideShed purlin as shown in the Components Required diagram below, using evenly spaced 35mm screws.
  • Page 19 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 19 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 11 Components Required GAZ-PT15351756 PART NUMBER • Fix 1x GAZ-PT15351756 as shown in the diagram, using 4x 35mm screws. CPSS7 GAZ-PT15351756 •...
  • Page 20 Assembly Steps for Leviathan SideShed 1.5m x 3.0m Page 20 ** Avoid splitting timber parts by pre-drilling all screw holes ** Step 12 • Position and fix 2x 15x70x1385 trims to cover panel joins, using 35mm screws. Components Required PART NUMBER •...
