INSTALLATION MANUAL
Please note:
1. This manual is designed for a right handed Gazebo but can be also used to build a left handed version.
2. If you have bought shingles, please use our shingle installation instructions.
3. If you have bought Atlas Single Carport/Garage or wall panel packs for your gazebo, please follow
the instructions provided at the end of these manuals for how to assemble the panels.
4. If you have bought Atlas Single Garage, please refer to the instructions provided with the garage
door pack on how to assemble doors.
5. Fixings are supplied with Gazebo (except for those required to secure Bracket to base)
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF

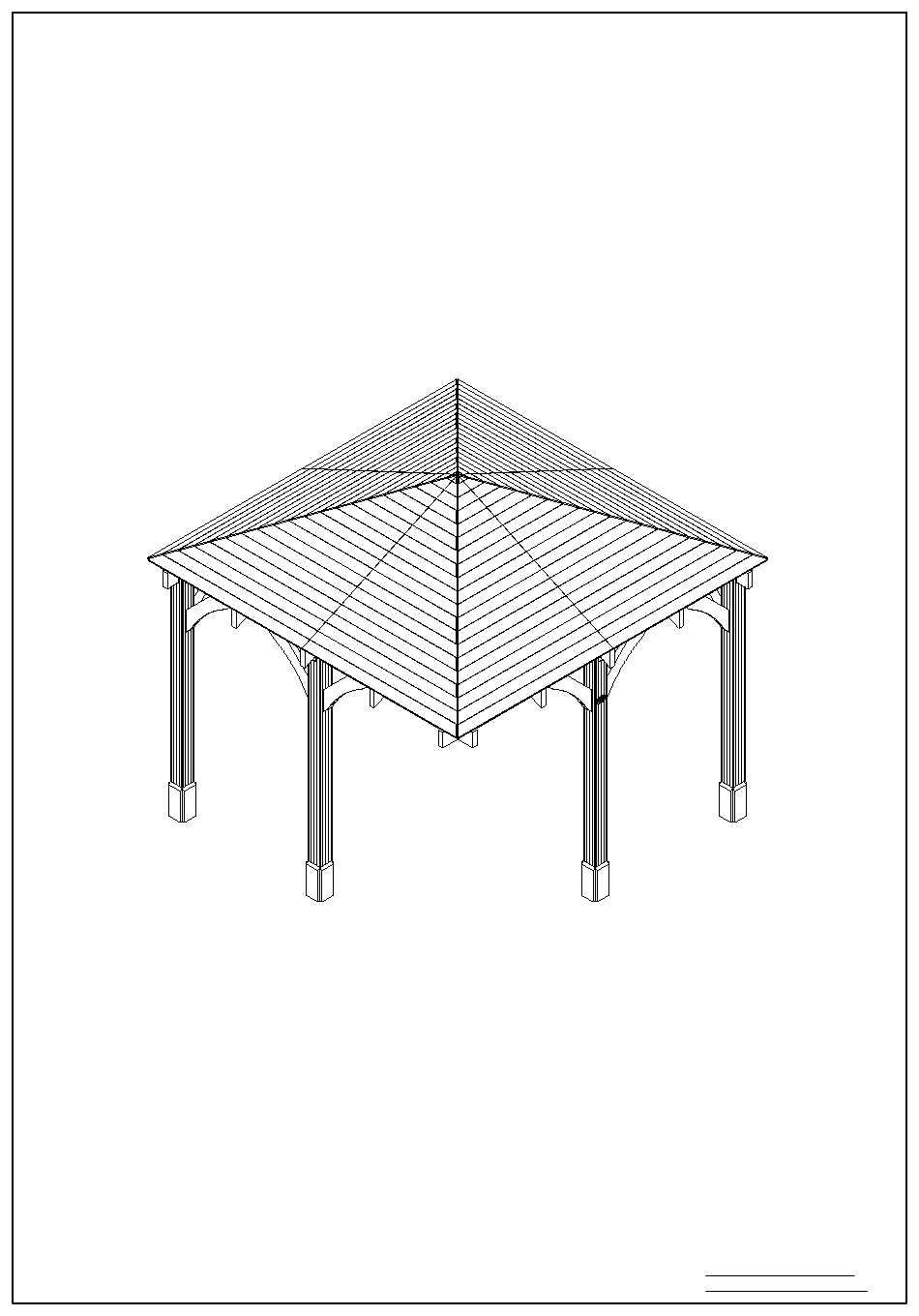

UNICORN CHUNKY CORNER GAZEBO
P5-3030CORGAZ
Unique Product Reference Number:
__________________________________
3m x 3m
V5
Customer Service Department:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dunster House P5-3030CORGAZ
Summary of Contents for Dunster House P5-3030CORGAZ
- Page 1 4. If you have bought Atlas Single Garage, please refer to the instructions provided with the garage door pack on how to assemble doors. 5. Fixings are supplied with Gazebo (except for those required to secure Bracket to base) Unique Product Reference Number: Manufacturer: Dunster House Ltd. Caxton Road __________________________________ Bedford Customer Service Department: Bedfordshire cs@dunsterhouse.co.uk...
- Page 2 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: Dunster House Ltd, Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England. Our Customer Service department is open 9 a.m. to 5 p.m. Monday to Friday. Please include your Sales Order (SO) number or post code in any correspondence with Customer Service to enable them to locate your file.
- Page 3 Components required for Unicorn Chunky Corner Gazebo 3.2m x 3.2m 120x120x2260.A 5x Post (Pressure Treated) 2260 45x140x3200.A 4x Beam (Pressure Treated) 3200 45x140x630.A 10x Brace (Pressure Treated) 45x140x2282.A 4x Rafter (Pressure Treated) 2282 45x140x1785.B 1785 4x Rafter (Pressure Treated) 45x140x1035.A 1035 4x Rafter (Pressure Treated) 45x140x1035.B...
- Page 4 Description - Fixings 120mm Screws for Rafters Bracket LS30 M6x45mm Hex. Head Bolts for SMB014 Brackets 70x70x55mm L Bracket Dunster House Logo M6 Washers for SMB015 Brackets M6 Clave Nuts for SMB015 Brackets Customer Instructions M10x120mm Hex. Head Screws for Braces...
- Page 5 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** - M6x45mm Hex.Head Bolt - M10x120mm Hex, Head Screw - Clave nut (M10, M6) - 35mm, 100mm, 120mm, Screws - Circular Washer - SMB015 Bracket (M10, M6)
- Page 6 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 120x120x2260.A 45x140x3200.A 100mm Screws • Assemble (1x) 120x120x2260.A Posts and 45x140x3200.A Beam as shown in the diagram below. Step 1. •...
- Page 7 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x3200.A 1x 120mm Screw 120x120x2260.A 1x 45x45x2120 100mm Screws • Connect assemblies created in step 1 and 2 using (1x) 45x140x3200.A Beam using (4x) 100mm screws per Step 3.
- Page 8 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x630.A 5x 70x70x55 Bracket M10x120mm Hex Head Screw 20x 35mm Screws M10x28mm Washer Step 5. • Position and fix 10x 45x140x630.A Brace onto the posts. •...
- Page 9 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x1785.B M6x45mm Hex Head Bolt and Washer 16x M6 Clave Nut SMB015 Bracket 35mm Screws 45x45x2830 H2.5 Bracket M6 Washer Step 6.
- Page 10 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x2282.A M6 Washers M6x45mm Hex Head Bolts M6 Clave Nuts 120mm Screw • Once SMB015 Support is in place at correct height, fit 45x140x2282.A Rafters by slotting and bolting them into Step 7.
- Page 11 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x1035.A 45x140x1035.B H2.5 Bracket Bracket LS30 112x 35mm Screws • Fix 4x 45x140x1035.A and 4x 45x140x1035.B rafters to 45x140x2282.A rafters. Step 8.
- Page 12 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 160x Roof Boards 40mm Ring Shank Nail (per roof section) • Start to fix the Roof Boards by positioning the longest board flush to the ends of Rafter and 22mm to the Step 9.
- Page 13 Assembly Steps for Unicorn Chunky Open Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 20x120x300.A 35mm Screw Fix (4x) 20x120x300.A Trim onto each of the Posts using 2x 35mm screws per Trim. Step 12. •...
- Page 14 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m (Felt) Plastic Waterproof Membrane: • Fully cover the roof with the plastic waterproof membrane leaving a minimum of 30mm overhang. • Use a staple gun or tacks to secure the membrane to the roof boards. Felt: •...
- Page 15 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Important: If your shingles have a peelable plastic backing remove this before installing them to the roof. • Felt lap Adhesive is an optional extra. • Membrane: Place membrane over top of roof leaving a 15-20mm overhang on each side. if membrane does not overlap •...
- Page 16 Place further shingles across the top ridge of the gazebo using shingles cut out from the previous step. Secure Step 6: these into place with nails provided. Important: Adhesive layer (Bitumen) on the back of the shingles will adhese the shingles together in warm sunlight. Dunster House Shingles installation video - https://www.youtube.com/watch?v=IFMFYYSUEUI Page 16...
- Page 17 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Important: • If your shingles have a peelable plastic backing remove this before installing them to the roof. • Felt lap Adhesive is an optional extra. Membrane: Place membrane over top of roof leaving a 15-20mm overhang on each side. if membrane does not overlap whole area of roof face overlap a second piece with at least a 20mm overlap.
- Page 18 Place further shingles across the top ridge of the gazebo using shingles cut out from the previous step. Secure Step 6: these into place with nails provided. Important: Adhesive layer (Bitumen) on the back of the shingles will adhese the shingles together in warm sunlight. Dunster House Shingles installation video - https://www.youtube.com/watch?v=IFMFYYSUEUI Page 18...
- Page 19 4. If you have bought Atlas Single Garage, please refer to the instructions provided with the garage door pack on how to assemble doors. 5. Fixings are supplied with Gazebo (except for those required to secure Bracket to base) Unique Product Reference Number: Manufacturer: Dunster House Ltd. Caxton Road __________________________________ Bedford Customer Service Department: Bedfordshire cs@dunsterhouse.co.uk...
- Page 20 Assembly Steps for Unicorn Chunky Open Gazebo 3.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 35x70x1300 35mm Screws 35x35x800 90mm Screws Step 15. • Assemble (2x) balustrades by fixing (2x) 35x70x1300.A Handrails and (6x) 35x35x800 Balustrade. •...
- Page 21 INSTALLATION MANUAL Additional Wall Panels IMPORTANT INFORMATION Please remove component 45x140x630.A (Brace) if components CP1 and or CP8 are being installed. Please note: 1. These instructions will enable you to assemble additional wall panels to your Gazebo. 2. Avoid splitting timber by pre-drilling ALL screw holes...
- Page 22 mponents required for Additional Wall PanelsUnicorn Chunky Corner Gazebo 3.2m x 3.2 Panel CP1 Panel CP2 Pressure Treated Pressure Treated Panel CP8 Pressure Treated Page 22...
- Page 23 Components required for Additional Wall Panels for Atlas Gazebo 15x70x2120 Full Wall Panel Trim (Pressure Treated) 2120 15x70x1065 Half Wall Panel Trim (Pressure Treated) 1065 15x70x1035 Glass Wall Panel Trim (Pressure Treated) 1035 20x100x908 Glass Wall Panel Sill (Pressure Treated) 15x70x1085 Half Wall Panel Trim (Pressure Treated)
- Page 24 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Full height wall panels assembly ** Quantity of components will vary, Panel CP1 M10 Shield Anchors depending on your purchase. 60mm Screws M10x28 Washers M10x110 Bolts Step 1. • Position the Panel CP1 between the Posts as shown in the diagram below. •...
- Page 25 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Full height wall panels assembly 35mm Screws 15x70x2120 Trim Step 2. • Fix 15x70x2120 Trims using (8) 35mm screws per trim on the outside of the wall panels. • Fix 15x70x2120 Trims using (8) 35mm screws per trim on the inside of the wall panels. The Trims will cover the joints between the panels.
- Page 26 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Half height wall panels assembly ** Quantity of components will vary, Panel CP2 M10 Shield Anchors depending on your purchase. M10x28 Washers 60mm Screws M10x110 Bolts Step 1. • Position the Panel CP2 between the Posts as shown in the diagram below. Join two (2) Panel CP2 using (6) 60mm screws.
- Page 27 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Half height wall panels assembly 20x100x908 15x70x1065 and 15x70x1085 35mm Screws Step 2. • Position 20x100x908 Sills on top of Panels CP2 so that they are flush with the panel frame from inside the gazebo.
- Page 28 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m Window panels assembly Panel CP8 60mm Screws **Assemble half height wall panels according to 35mm Screws the instructions given on the previous pages. 15x70x1035 • Remove the beading trims from one side of Panel CP8 frames. Step 1.
- Page 29 Assembly Steps for Unicorn Chunky Corner Gazebo 3.2m x 3.2m 40mm Pin Nail 4x825x960 TGLASS 19x25x840 19x25x915 Step 1: Place silicone around the edge of the frame. Silicone Please note: The glass is a smaller size compared to panel frame to compensate for timbers Silicone Silicone contracting, swelling and glass not being...
