INSTALLATION MANUAL
Please note:
1. If you have bought shingles, please use our shingle installation instructions.
2. If you have bought Atlas Single Carport/Garage or wall panel packs for your gazebo, please follow
the instructions provided at the end of these manuals for how to assemble the panels.
3. If you have bought Atlas Single Garage, please refer to the instructions provided with the garage
door pack on how to assemble doors.
4. Fixings are supplied with Gazebo (except for those required to secure Bracket to base)
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF

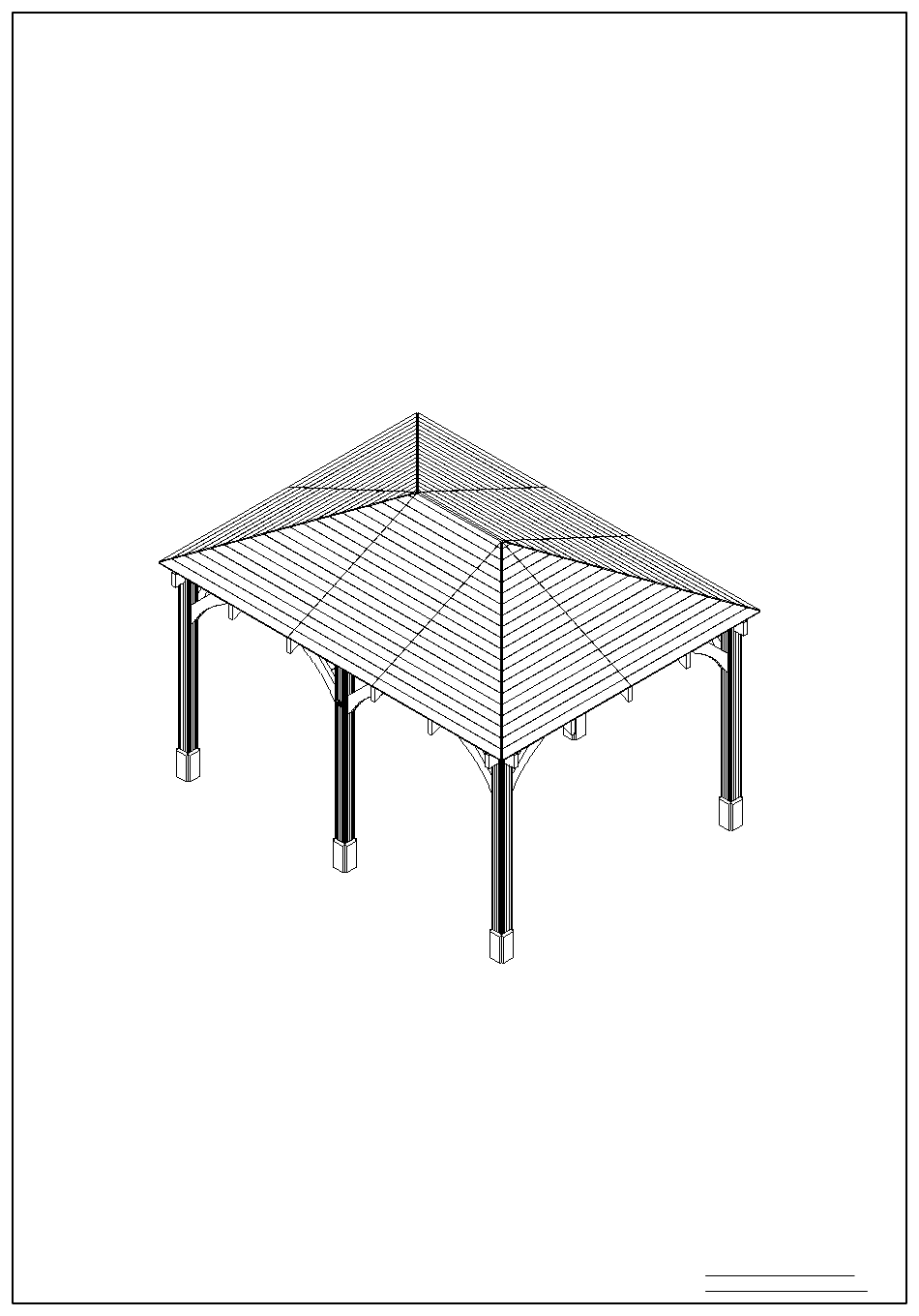

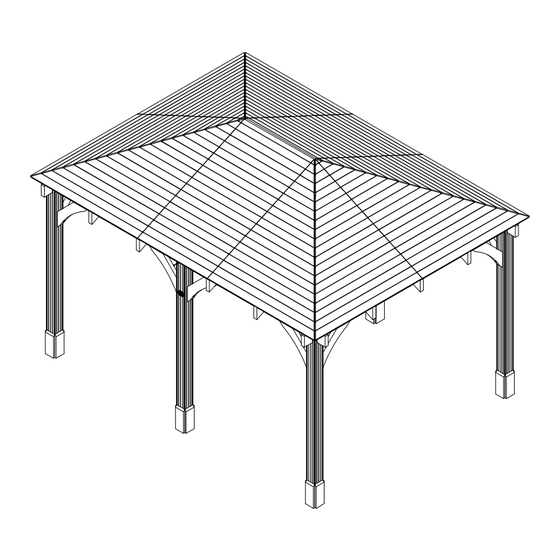

ATLAS OPEN GAZEBO
4.2m x 3.2m
P5-4030GAZAT
Unique Product Reference Number:
__________________________________
V6
Customer Service Department:
cs@dunsterhouse.co.uk
www.dunsterhouse.co.uk
Advertisement
Related Manuals for Dunster House ATLAS P5-4030GAZAT
Summary of Contents for Dunster House ATLAS P5-4030GAZAT
- Page 1 3. If you have bought Atlas Single Garage, please refer to the instructions provided with the garage door pack on how to assemble doors. 4. Fixings are supplied with Gazebo (except for those required to secure Bracket to base) Unique Product Reference Number: Manufacturer: Dunster House Ltd. Caxton Road __________________________________ Bedford Customer Service Department: Bedfordshire cs@dunsterhouse.co.uk...
- Page 2 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: Dunster House Ltd, Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England. Our Customer Service department is open 9 a.m. to 5 p.m. Monday to Friday. Please include your Sales Order (SO) number or post code in any correspondence with Customer Service to enable them to locate your file.
- Page 3 Components required for Atlas Open Gazebo 4.2m x 3.2m 120x120x2260.A 4x Post (Pressure Treated) 2260 120x120x2260.C 2x Post (Pressure Treated) 2260 45x140x3200.A 2x Beam (Pressure Treated) 3200 45x140x2170.A 2x Beam (Pressure Treated) 2170 45x140x2282.A 4x Rafter (Pressure Treated) 2282 45x140x1785.B 6x Rafter (Pressure Treated) 1785 Page 3...
- Page 4 Components required for Atlas Open Gazebo 4.2m x 3.2m 45x140x1035.A 4x Rafter (Pressure Treated) 1035 45x140x1035.B 4x Rafter (Pressure Treated) 1035 45x140x962.A 1x Ridge (Pressure Treated) 45x140x630.A 12x Brace (Pressure Treated) 20x120x300.A 24x Post Trim (Pressure Treated) F.1043.A 2x Roof Board (Pressure Treated) 1043 F.1043 38x Roof Board (Pressure Treated)
- Page 5 DESCRIPTION 40mm Ring Shank Nails Bracket LS30 Simpson Bracket Clave nut M6 Clave Nut DH LOGO METAL Dunster House logo Plate H2.5 Bracket Simpson Bracket IFI 542 - 12 Circular Washer L Bracket - 70x70x55 L Bracket M6 Circular Washer M6 Plain washers - Normal series - Product grade A M6x45mm Hex.Head Bolt...
- Page 6 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** - M6x45mm Hex.Head Bolt - M10x120mm Hex, Head Screw - Clave nut - 35mm, 70mm, 100mm, 120mm, Screws - Circular Washer - SMB015 Bracket - 70x70x55 L Bracket - Bracket LS30...
- Page 7 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 2x 45x140x4245.B 120x120x2260.A 2x 120x120x2260.C 45x145x3200.A 100mm Screws • Prepare 2 assemblies of the Beams and Posts as shown in the diagram below. Step 1.
- Page 8 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x45x630.A 70x70x55 Bracket M10 Washer 45x140x4245.B 100mm Screws 35 mm Screws M10x120mm Hex Head Screws Step 2. Position prepared assemblies and remaining Beams. Join using the same principles as shown in 'Step 1'. •...
- Page 9 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x1785.B SMB014 Bracket Clave Nut 45x140x962.A 35mm Screws H2.5 Bracket 45x45x2830 M6x45mm Hex Head Bolt and Washer Step 3. • Connect (3x) 45x140x1785.B Rafters by sliding onto the chamfered arms of SMB015 Bracket.
- Page 10 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x1785.B 120mm Screws M6x45mm Hex Head Bolt & Wash. 45x140x2282.A 35mm Screws SMB015 Bracket 45x45x2830 Clave Nuts H2.5 Bracket • Lift other set of (3x) Rafters and SMB015 Bracket together and align notches on Beams, Rafters and Ridge.
- Page 11 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 45x140x1035.A 45x140x1035.B 112x 35mm Screws H2.5 Bracket Bracket LS30 Step 5. • Fix remaining Rafters to 45x140x2282.A and Beams using Bracket LS30 and 35mm screws. •...
- Page 12 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** 160x Roof Boards 568x 40mm Ring Shank Nail F.1043 Step 6. • Start to fix the Roof Boards by positioning the longest board flush to the ends of Rafter and 22mm to the centre.
- Page 13 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m ** Avoid splitting timber parts by pre-drilling all screw holes ** F.1043.A 20x120x300.A 35mm Screws 40mm Ring Shank Nail Step 8 • Fix the remaining Roof Boards F.1043.A using ring shank nails. F.1043.A Diagram illustrates F.1043.A being F.1043.A...
- Page 14 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m (Felt) Plastic Waterproof Membrane: • Fully cover the roof with the plastic waterproof membrane leaving a minimum of 30mm overhang. • Use a staple gun or tacks to secure the membrane to the roof boards. Felt: •...
- Page 15 Regular Shingle Installation Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Important: If your shingles have a peelable plastic backing remove this before installing them to the roof. • Felt lap Adhesive is an optional extra. • Membrane: Place membrane over top of roof leaving a 15-20mm overhang on each side. if membrane does not overlap •...
- Page 16 Place further shingles across the top ridge of the gazebo using shingles cut out from the previous step. Secure Step 6: these into place with nails provided. Important: Adhesive layer (Bitumen) on the back of the shingles will adhese the shingles together in warm sunlight. Dunster House Shingles installation video - https://www.youtube.com/watch?v=IFMFYYSUEUI Page 16...
- Page 17 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Hexagon Shingle Installation Important: • If your shingles have a peelable plastic backing remove this before installing them to the roof. • Felt lap Adhesive is an optional extra. Membrane: Place membrane over top of roof leaving a 15-20mm overhang on each side. if membrane does not overlap whole area of roof face overlap a second piece with at least a 20mm overlap.
- Page 18 Place further shingles across the top ridge of the gazebo using shingles cut out from the previous step. Secure Step 6: these into place with nails provided. Important: Adhesive layer (Bitumen) on the back of the shingles will adhese the shingles together in warm sunlight. Dunster House Shingles installation video - https://www.youtube.com/watch?v=IFMFYYSUEUI Page 18...
- Page 19 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m • The guttering pack includes wooden wedges which should be fixed to (Guttering) the eaves edging using one screw per wedge. Fig. A • The outermost wedges should be positioned approximately 200mm from the ends of the eaves edging, Fig.
- Page 20 INSTALLATION MANUAL Additional Wall Panels Atlas Gazebo IMPORTANT INFORMATION Please remove component 45x140x630.A (Brace) if components CP1 and or CP8 are being installed. Please note: 1. These instructions will enable you to assemble additional wall panels to your Gazebo. The configuration of the panels shown on the illustrations may very from the product you have purchased. 2.
- Page 21 Components required for Additional Wall Panels Panel CP1 Panel CP2 Pressure Treated Pressure Treated Panel CP8 Pressure Treated Page 21...
- Page 22 Components required for Additional Wall Panels for Atlas Gazebo 15x70x2120 Full Wall Panel Trim 2120 15x70x1065 1065 Half Wall Panel Trim (Cut from full height trim) 15x70x1035 1035 Glass Wall Panel Trim (Cut from full height trim) 20x100x908 Glass Wall Panel Sill 15x70x1085 Half Wall Panel Trim 1085...
- Page 23 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Full height wall panels assembly ** Quantity of components will vary, Panel CP1 M10 Shield Anchors depending on your purchase. 60mm Screws M10x28 Washers M10x110 Bolts Step 1. • Position the Panel CP1 between the Posts as shown in the diagram below. •...
- Page 24 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Full height wall panels assembly 15x70x2120 Trim 35mm Screws Step 2. • Fix 15x70x2120 Trims using (8) 35mm screws per trim on the outside of the wall panels. • Fix 15x70x2120 Trims using (8) 35mm screws per trim on the inside of the wall panels. •...
- Page 25 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Half height wall panels assembly ** Quantity of components will vary, Panel CP2 M10x110 Bolts depending on your purchase. 60mm Screws M10 Shield Anchors M10x28 Washers Step 1. • Position the Panel CP2 between the Posts as shown in the diagram below. •...
- Page 26 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Half height wall panels assembly 20x100x908 Sills 15x70x1065 Trim 35mm Screws Step 2. • Position 20x100x908 Sills on top of Panels CP2 so that they are flush with the panel frame from inside the gazebo.
- Page 27 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m Window panels assembly Panel CP8 60mm Screws **Assemble half height wall panels according to 35mm Screws the instructions given on the previous pages. 15x70x1035 Trim Remove the beading trims from one side of Panel CP8 frames. Step 1.
- Page 28 Assembly Steps for Atlas Open Gazebo 4.2m x 3.2m 40mm Pin Nail 4x825x960 TGLASS 19x25x840 19x25x915 Step 1: Place silicone around the edge of the frame. Silicone Please note: The glass is a smaller size compared to panel frame to compensate for timbers Silicone Silicone contracting, swelling and glass not being...
