4) DMX512 MODE:
The laser can be controlled by any standard DMX-controller in 2 different DMX-modes.
• Press the FUNC-button until the display shows Ch01 or Ch09
• Use the UP or DOWN buttons to select the DMX mode you want to use
o
Ch01 = for extremely easy setup and use! You can now control the automatic functions of
the unit via just 1 DMX channel
o
Ch09: for full control over all the functions via 9 DMX Channels.
• Press the ENTER-button to confirm your choice.
• "d..." (followed by 3 numbers) starts blinking on the display.
• Use the UP or DOWN buttons to select the DMX address you want to use
• Press the ENTER-button to confirm your choice.
Note: the display blinks when the unit is in DMX-mode and no DMX-signal is detected.
Some more information on DMX512:

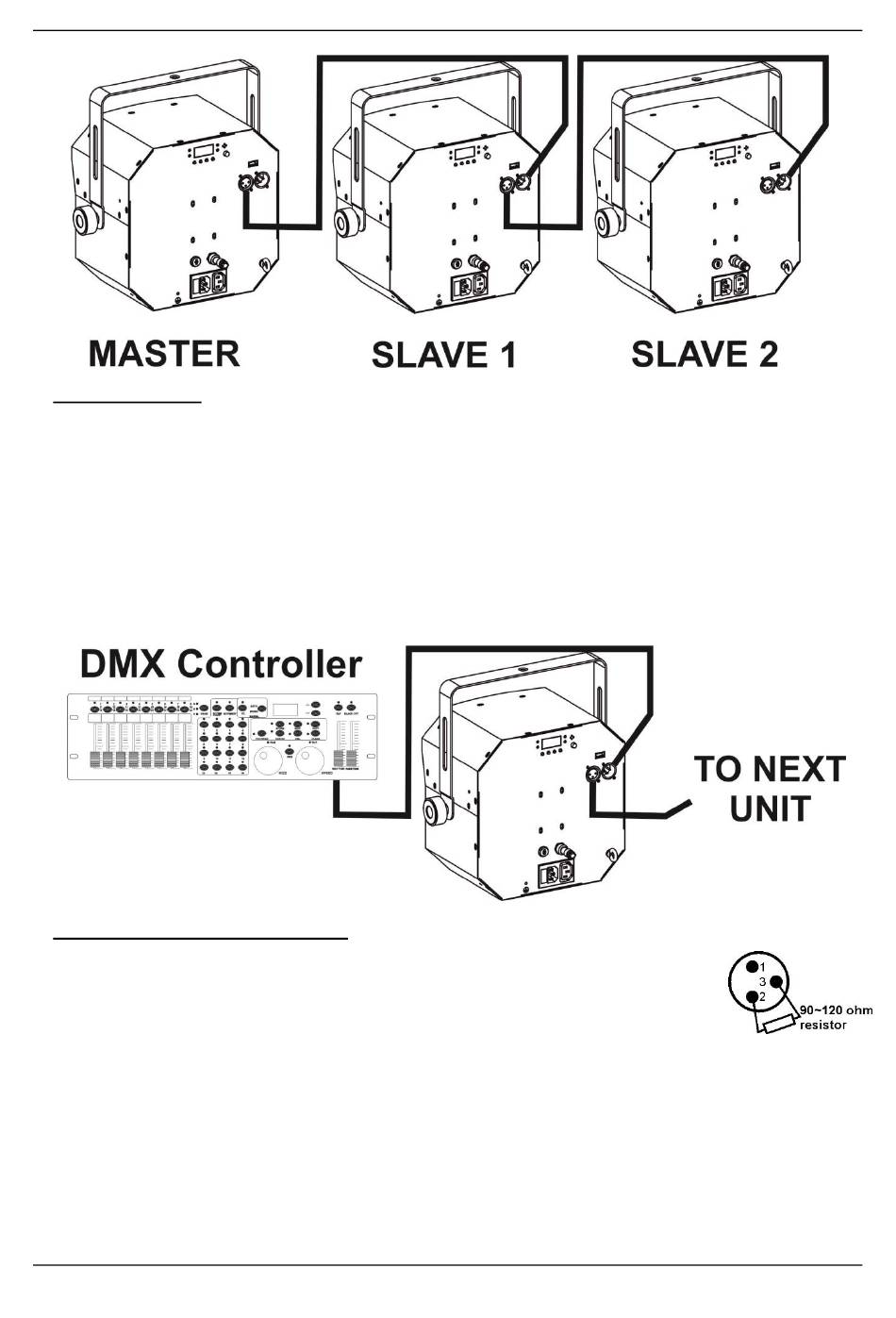

The DMX-protocol is a widely used high speed signal to control intelligent light
equipment. You need to "daisy chain" your DMX controller and all the connected light
effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the
light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of
the chain. Never use Y-splitter cables, this simply won't work!
Each effect in the chain needs to have its proper starting address so it knows which commands from the
controller it has to decode.
