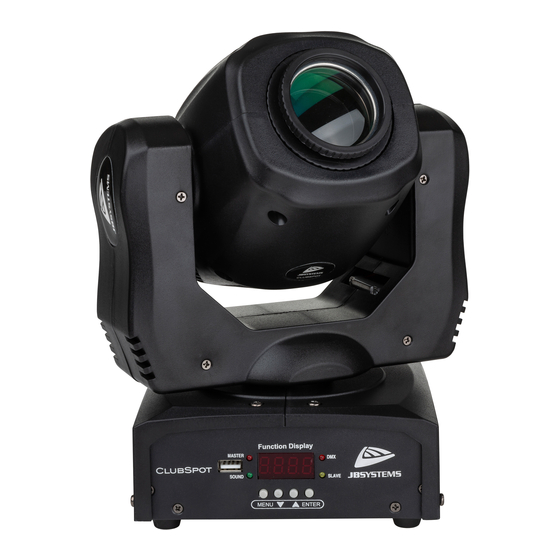

JB Systems CLUBSPOT Operation Manuals
  1. Manuals
  2. Brands
  3. JB Systems Manuals
  4. DJ Equipment
  5. CLUBSPOT
  6. Operation manuals

JB Systems CLUBSPOT Operation Manuals

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for JB Systems CLUBSPOT

Summary of Contents for JB Systems CLUBSPOT

  • Page 3: Before Use

    ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •...

  • Page 4: Safety Instructions

    • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS 2/12 CLUBSPOT ®...

  • Page 5: Overhead Rigging

    . The separate WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: 4645) 3. [SOUND]: This LED reacts to the audio when the CLUBSPOT is in sound mode. [MENU]: press this button to go back to the main menu or to leave submenus.

  • Page 6: Main Menu

    6. [▲] button : press this button to go up in the menu. 7. [ENTER]: press this button to confirm the selected function in the menu 8. [SLAVE]: This LED lits when the CLUBSPOT is in Slave mode. 9. [DMX]: This LED lits when a DMX-signal is present.
  • Page 7 • Once the right mode is shown on the display, press the [ENTER] button to select it. • Press the [MENU] button for about 2 seconds to store the setting and to return to running mode. JB SYSTEMS 5/12 CLUBSPOT...

  • Page 8: Offset Menu

    • Use ▼ and ▲ buttons to adjust the home position • Press the [ENTER] button to select your setting. • Press the [MENU] button for about 2 seconds to store the setting and to return to running mode. JB SYSTEMS 6/12 CLUBSPOT...

  • Page 9: Electrical Installation + Addressing

    So please refer to the user manual of your DMX-controller to find out which starting addresses you must set. JB SYSTEMS 7/12 CLUBSPOT...

  • Page 10: User Manual

    ENGLISH USER MANUAL DMX-CONFIGURATION OF THE CLUBSPOT IN 5, 9 AND 11CH MODE: 5CH Mode : DMX-value function remarks Channel 000-007 Standby 008-255 Dimmer 0 - 100% 000-007 No function 008-131 Strobe (slow - fast) 132-139 Full on 140-181 Close-open Fast ->...
  • Page 11 072-079 Shaking gobo 1 (slow->fast) 080-087 Shaking gobo 2 (slow->fast) 088-095 Shaking gobo 3 (slow->fast) 096-103 Shaking gobo 4 (slow->fast) 104-111 Shaking gobo 5 (slow->fast) 112-119 Shaking gobo 6 (slow->fast) 120-127 Shaking gobo 7 (slow->fast) JB SYSTEMS 9/12 CLUBSPOT ®...
  • Page 12 Split colors 064-071 White/red 072-079 Red/green 080-087 Green/blue 088-095 Blue/yellow 096-103 Yellow/orange 104-111 Orange/blue 112-119 Blue/purple 120-127 Purple/white Rainbow 128-191 Slow -> fast Rainbow reverse 192-255 Slow -> fast 000-007 Gobo Open (white) 008-015 Gobo 1 JB SYSTEMS 10/12 CLUBSPOT ®...

  • Page 13: Maintenance

    • Always dry the parts carefully. • Clean the external optics at least once every 30 days. • Clean the internal optics at least every 90 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! JB SYSTEMS 11/12 CLUBSPOT ®...

  • Page 14: Specifications

    Operating temperature (T 0°C to 40°C Size: see drawings Weight: 3,5 kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS 12/12 CLUBSPOT ®...
