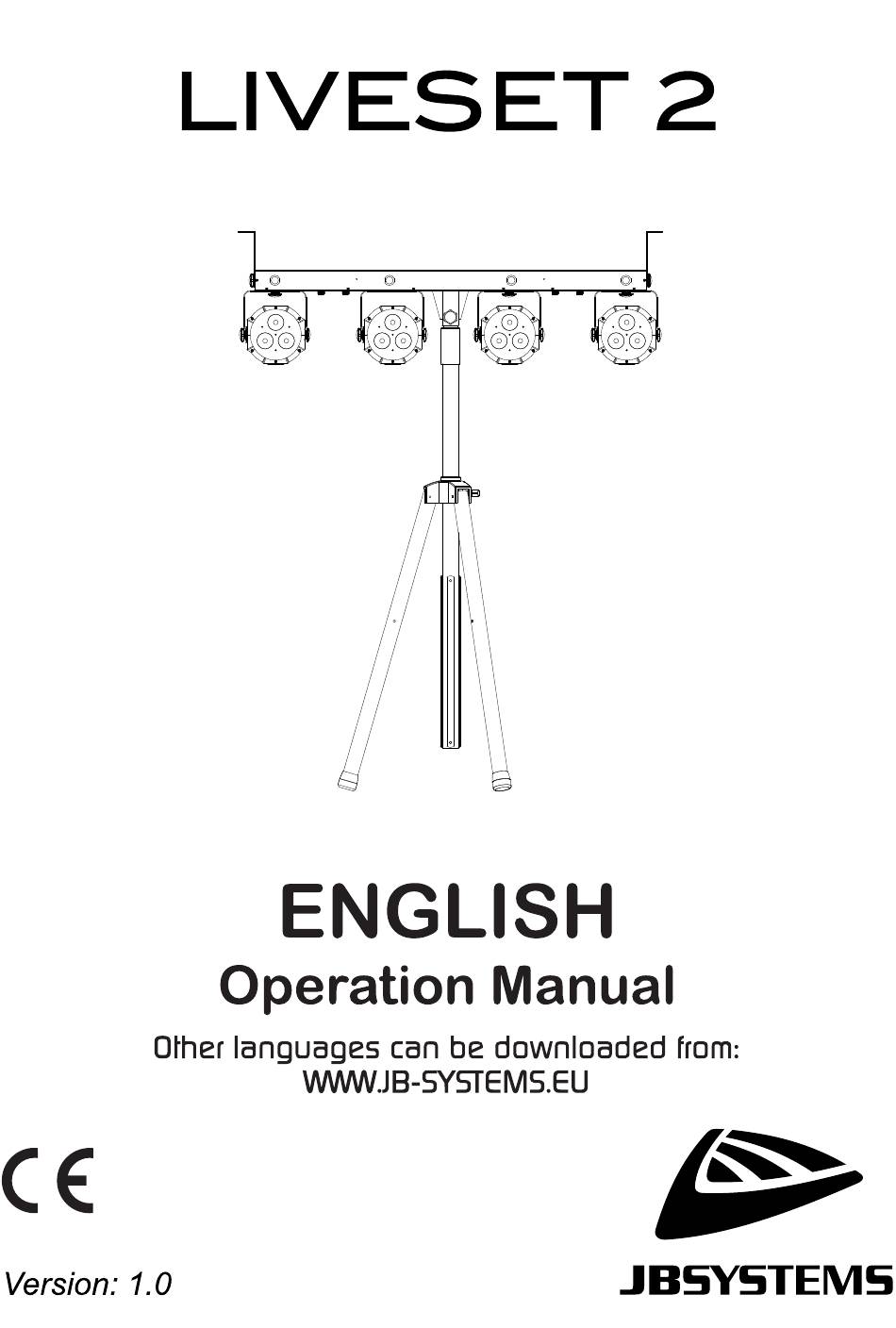

Summary of Contents for JB Systems LIVESET 2

  • Page 3: Before Use

    Check the contents: Check that the packing contains the following items: • Operating instructions • LIVESET 2 light bar + transport bag • Wireless foot controller + 9V battery • Power Cable • Light stand + transport bag • 2 Hanging brackets •...
  • Page 4 • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS 2/13 LIVESET 2 ®...
  • Page 5: Overhead Rigging

    • The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. JB SYSTEMS 3/13 LIVESET 2 ®...
  • Page 6: How To Set Up And Control The Unit

    Press [ENTER] to confirm your setting [SouM] Sound controlled mixed effects show. ▪ Press [ENTER] to select this mode. ▪ Use the [UP] and [DOWN] buttons to select one of the 3 shows [SM01 – SM03] JB SYSTEMS 4/13 LIVESET 2 ®...
  • Page 7 [S008] and slave 2 on address [S020] → The program will start running in the master, then it will go on with the projectors of the slave 1 unit, followed by the projectors of the slave 2 unit. JB SYSTEMS 5/13 LIVESET 2 ®...
  • Page 8 • Now you can use the [UP/DOWN] buttons to set the DMX address. [dxxx] • Press the [ENTER] button to confirm your choice. Note: the display blinks when the unit is in DMX-mode and no DMX-signal is detected. JB SYSTEMS 6/13 LIVESET 2 ®...
  • Page 9 219-237 Show 12 238-255 Show 13 (Random) RGB Automatic Program Speed 000-243 Speed Slow to Fast 244-255 Sound Sound controlled White Led Programs 000-009 Blackout 010-031 Show 1 White Led Shows 032-053 Show 2 JB SYSTEMS 7/13 LIVESET 2 ®...
  • Page 10 No Strobe 010-083 Pulse Closed 084-163 Pulse Open Slow to Fast 164-243 Strobe 244-255 Sound Strobe Sound controlled modulator effect White LED Strobe 000-009 Blackout White LED 1 010-255 Strobe 000-009 Blackout White LED 2 JB SYSTEMS 8/13 LIVESET 2 ®...
  • Page 11 000-255 White Strobe Slow to Fast RGB Automatic Programs 000-009 Blackout 010-028 Show 1 029-047 Show 2 048-066 Show 3 RGB Shows 067-085 Show 4 086-104 Show 5 105-123 Show 6 124-142 Show 7 JB SYSTEMS 9/13 LIVESET 2 ®...
  • Page 12 • If you use the LEDCON-02 in 8CH mode and you want to use the bar for the last 4 channels (second 4-bar) you have to select DMX address 017 • Press the [ENTER] button to confirm your choice. Note: the display blinks when the unit is in DMX-mode and no DMX-signal is detected. JB SYSTEMS 10/13 LIVESET 2 ®...
  • Page 13 • Now you can use the [UP/DOWN] buttons to set the DMX address. [dxxx] • If you use the LEDCON-XL in 4CH mode you have to select DMX address 001 (also select this mode and channel if you are using only 1 light bar) JB SYSTEMS 11/13 LIVESET 2 ®...
  • Page 14 • Press the [ENTER] button to enter this option • Use the [UP/DOWN] buttons to select [rSEt] • Press the [ENTER] button to execute the reset. • The firware version will shortly appear on the display JB SYSTEMS 12/13 LIVESET 2 ®...
  • Page 15: Maintenance

    1032 x 71 x 235mm Weight of the Liveset: 10.2 kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS 13/13 LIVESET 2 ®...
