Summary of Contents for Robustel EG5200

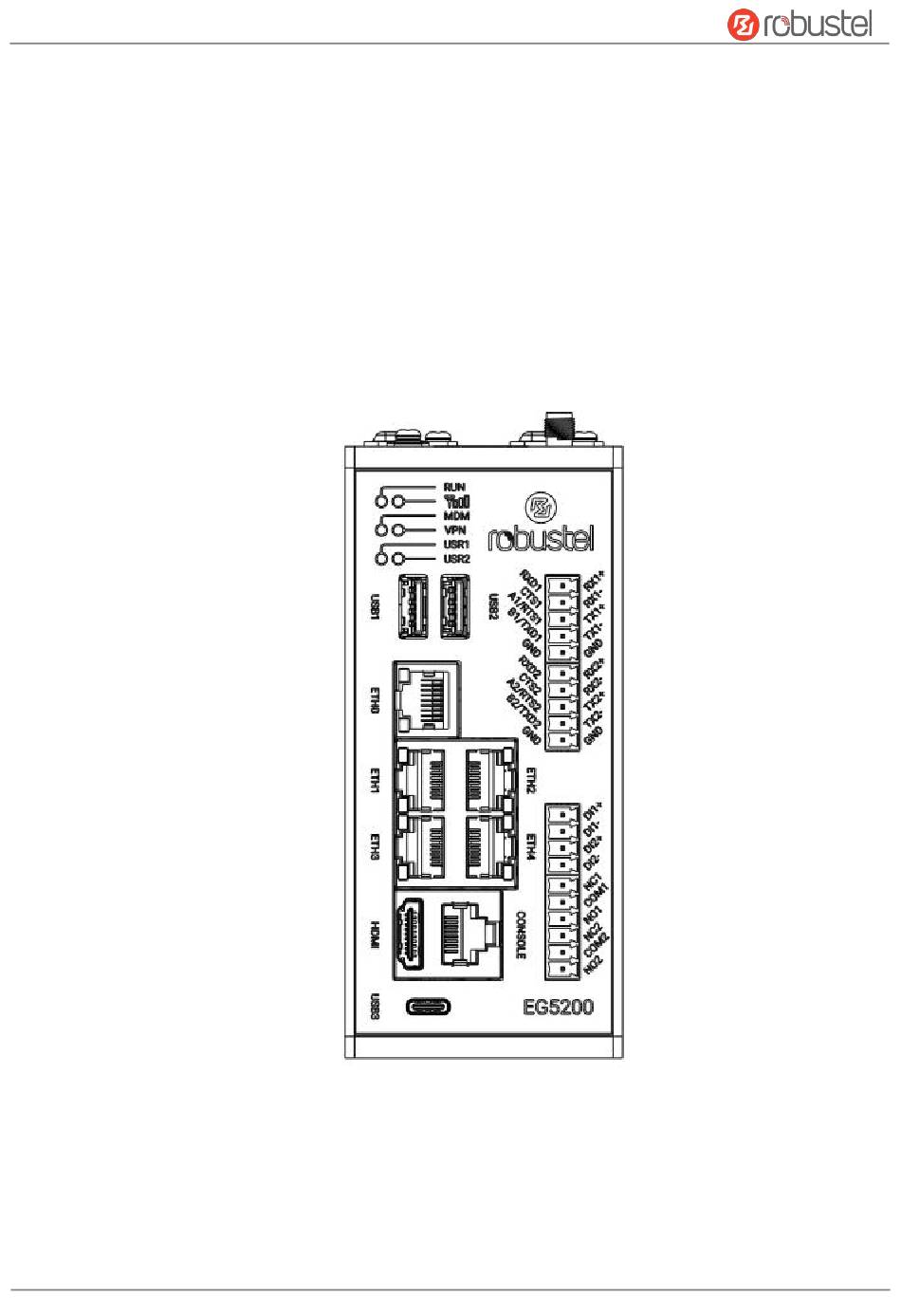

- Page 1 Robustel EG5200 Hardware Manual EG5200 Hardware Manual Version: 1.0.0 Date: Jun. 27, 2023 RT120_HM_EG5200 1/12...
- Page 2 Robustel EG5200 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel EG5200 Hardware Manual May vary on difference models. Note: Operation of 5150 ~ 5250 MHz frequency range is restricted to indoor use only. 電波法の規定により 5GHz 帯は屋内使用に限ります。 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 5 Robustel EG5200 Hardware Manual Related download link Find more product documents or tools at: www.robustel.com/documentation/ Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions.

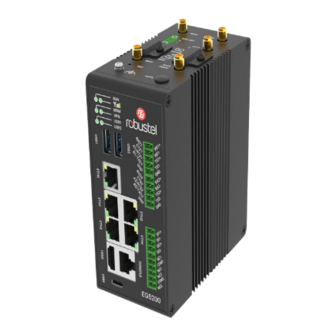

- Page 6 Robustel EG5200 Hardware Manual Overview EG5200 is a new generation of industrial edge computing gateway, supporting global 4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian 11(bullseye) based operating system able to support thousands of existing or new ARMv8 (Raspberry Pi compatible) based applications.
- Page 7 Robustel EG5200 Hardware Manual Panel Layout (May vary on different models, please refer to Table1) Top View Front View Bottom View Table1 Model Cellular Antenna Port WIFI/BLE Antenna Port GNSS Antenna Port EG5200-A5ZAZ-NU B120001 EG5200-A5CAZ-NU B120002 EG5200-A5AAZ-4L-A06GL_EG25-G B120004 EG5200-A5BAZ-4L-A06GL_EG25-G B120006...
- Page 8 Robustel EG5200 Hardware Manual Interface Descriptions Serial Ports. Two software configurable serial ports, could be configured as RS232 or RS485 or RS422. Name RS232 Mode RS485 Mode RS422 Mode RXD1 or RX1+ data receiving data receiving positive CTS1 or RX1-...
- Page 9 Robustel EG5200 Hardware Manual Digital Input and Relay Output. Two sets of digital inputs. Some applications for reference are as below: Note: The external power supply DC voltage range is 5V~30V, 0.1A max. Name Type Description DI1+ Digital Input positive...
- Page 10 Robustel EG5200 Hardware Manual Hardware Installation 1. SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. 2. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Rubber Antenna Installation 3.
- Page 11 Robustel EG5200 Hardware Manual 4. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector. 5. DIN Rail Mounting. Use 2 M3 screws to fix the DIN rail to the device, then hang the DIN rail on the mounting bracket.
- Page 12 Robustel EG5200 Hardware Manual Login to the Device After logging in, the home page of the web Connect the gateway’s Ethernet port to a PC with interface is displayed, then you can view system a standard Ethernet cable. information and perform configuration on the device.
