- Page 1 Robustel EV8100 Hardware Manual EV8100 Hardware Manual Version: 1.0.0 Date: Oct. 18, 2023 RT126_HM_EV8100 1/11...
- Page 2 Robustel EV8100 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel EV8100 Hardware Manual Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules.
- Page 4 Robustel EV8100 Hardware Manual Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 5 Robustel EV8100 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description Oct. 18, 2023 2.1.1.3...

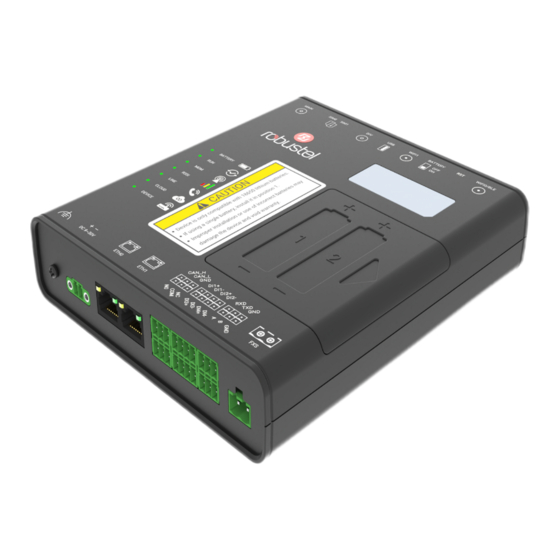

- Page 6 Robustel EV8100 Hardware Manual Overview EV8100 is an advanced elevator voice gateway that supports voice transmission over VoIP and VoLTE, enabling seamless communication between a cellular network and the elevator's intercom system, with latest Linux Debian bullseye based router OS with enhanced cybersecurity, advanced GUI and a myriad of software features.

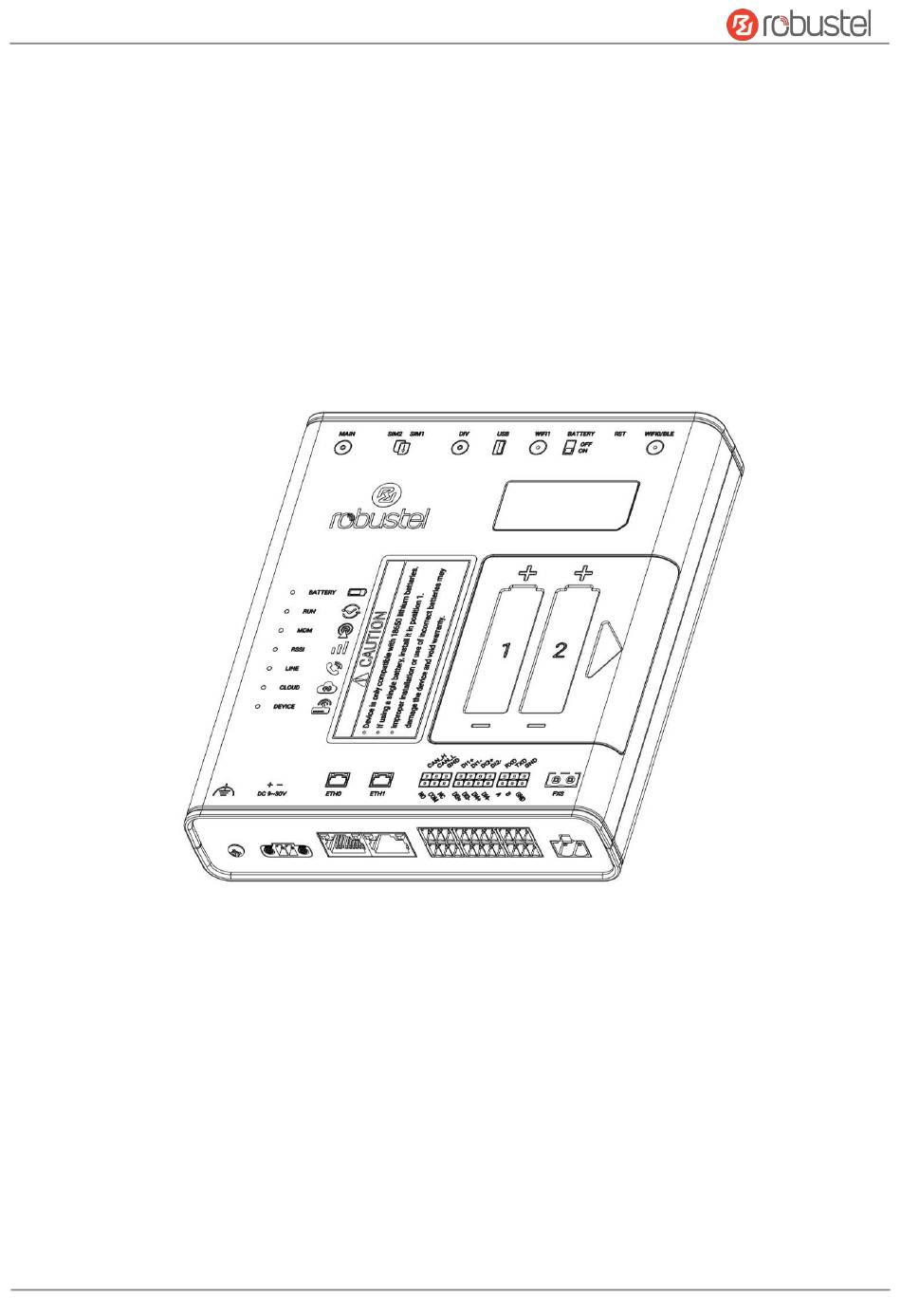

- Page 7 Robustel EV8100 Hardware Manual Panel Layout Top View Front View Bottom View RT126_HM_EV8100 7/11...
- Page 8 Robustel EV8100 Hardware Manual Interface Descriptions Serial Ports. Name Description CANL For transmitting low-level signals CANH For transmitting high-level signals Ground Note: When the relay is off, NC is connected to COM, and NO is Name RS232 Mode RS485 Mode disconnected.
-
Page 9: Hardware Installation
Robustel EV8100 Hardware Manual Lithium-ion Battery Instructions Device is only compatible with 18650 lithium batteries. If using a single battery, install it in position 1. Improper installation or use of incorrect batteries may damage the device and void warranty. Hardware Installation SIM Card Installation. - Page 10 Robustel EV8100 Hardware Manual DIN Rail Mounting. Use 2 M3 screws to fix the DIN rail to the device, then hang the DIN rail on the mounting bracket. Wall Mounting. Use 4 M3 screws to fix the Wall mounting to the device.
- Page 11 Robustel EV8100 Hardware Manual Login to the Device Connect the gateway’s Ethernet port to a PC with After logging in, the home page of the web a standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
