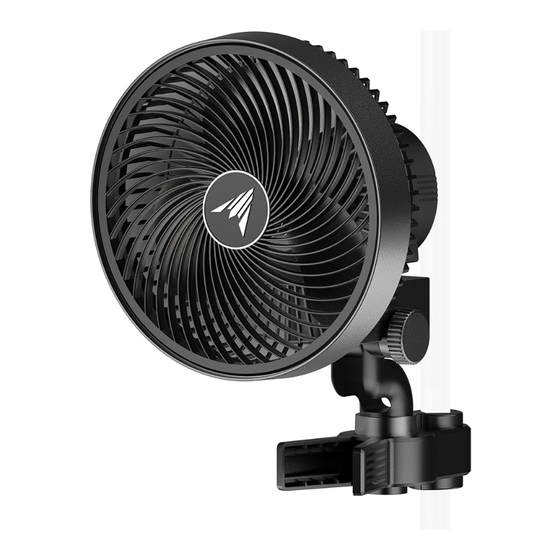

- Page 1 CLOUDRAY CIRCULATION FAN SYSTEM USER MANUAL USER MANUAL...
- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
- Page 4 MANUAL CODE CR2310X1 PRODUCT MODEL UPC-A CLOUDRAY A6 AC-CCA6 819137022416 CLOUDRAY A9 AC-CCA9 819137022454 CLOUDRAY S6 AC-CCS6 819137022423 CLOUDRAY S9 AC-CCS9 819137022461...
-
Page 5: Manual Index
Page 9 Powering and Setup ..............Page 11 Cleaning ..................Page 12 Platform ................Page 14 Connecting to Controllers .............. Page 15 Programming ................. Page 16 ....................Page 21 Other AC Infinity Products ............. Page 22 Warranty ..................Page 23... -
Page 6: Product Warning
PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation. -
Page 7: Key Features
KEY FEATURES ADVANCED EC MOTOR PWM CONTROL NATURAL AIRFLOW Digitally controlled to enable Includes a custom fan Cutting-edge motor delivers a quieter and more energy efficient 10 speed and oscillation* mode featuring variable performance than AC motors for levels for unmatched airflow fan speeds to simulate the a longer, more effective lifespan. -
Page 8: Product Contents
PRODUCT CONTENTS CIRCULATION GRIP EXTENSION CABLE CABLE CLIP CORD MOUNT (x1) (x1) (x1) (x4) (x1) -
Page 9: Installation
INSTALLATION STEP 1 Twist to remove the knob piece from the grip clip. STEP 2 Slide the swivel into the grip clip. You may need to pull its clamps apart for it to fit over the swivel. This tightness ensures your fan will not tilt downwards on its own. - Page 10 INSTALLATION STEP 3 Replace the knob of the mounting point as desired. STEP 4 Clamp your clip fan onto a pole or post.
- Page 11 POWERING AND SETUP STEP 1 Plug your clip fan's power cord into an AC power outlet to power it. STEP 2 You may cable manage the cords using the included cable ties or cable mounting set. Adhere the tie mount onto a clean surface. Loop the wire tie into the mount and around the cables.
- Page 12 CLEANING STEP 1 Unplug your clip fan. STEP 2 Unscrew the bottom of the front grille using a screwdriver. Removing the front grille to clean the fan blades will not void your warranty.
- Page 13 CLEANING STEP 3 Twist the grille counter-clockwise and pull to remove it. STEP 4 Wipe off any dust and debris from the grille and fan blades using a damp cloth. Set aside to dry as needed. STEP 5 Realign the grille over your clip fan, twist clockwise, then screw the grille back on to lock it in place.
- Page 14 By creating this fully integrated system, you can power and program all your devices together or separately for optimized grow tent management. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data.
- Page 15 CONNECTING TO CONTROLLERS The CLOUDRAY circulation fan can connect with select smart controllers as part of an integrated system using the included UIS cable. Please see below for limitations. STEP 1 — CONNECT TO DEVICE Plug the UIS connector with the gasket end into your clip fan.
- Page 16 PROGRAMMING A-SERIES POWERING ON/OFF Press the power button to turn your clip fan OFF. Pressing it again from OFF will turn your fan ON at its last speed setting. Power Button FAN SPEED ADJUSTING The speed button cycles through fan speed levels 1-10, indicated by the row of white LED lights.
- Page 17 PROGRAMMING A-SERIES ADVANCED NATURAL WIND MODE This mode will alternate speeds between levels 1-10 to simulate a natural breeze. STEP 1 Set the fan speed to your desired maximum level using the speed button. We do not recommend setting your max speed level to level 1;...
- Page 18 PROGRAMMING S-SERIES POWERING ON/OFF Press the speed button to turn your clip fan ON. Cycling past Advanced Natural Wind Mode will turn your clip fan OFF. Speed Button FAN SPEED ADJUSTING The speed button cycles through OFF, fan speeds 1-10, indicated by the row of white LED lights.
- Page 19 PROGRAMMING S-SERIES ADVANCED NATURAL WIND MODE This mode will alternate speeds between levels 1-10 to simulate a natural breeze. STEP 1 Set the fan speed to your desired maximum level using the speed button. We do not recommend setting your max speed level to level 1;...
- Page 20 PROGRAMMING S-SERIES OSCILLATION In addition to the standard features, S-Series models can oscillate to provide airflow at a wide angle. The oscillation function is manually activated using the oscillation button and cannot be controlled using external UIS programming. Oscillation Button If set to OFF, your clip fan will not oscillate regardless of any external programs.
- Page 21 CLOUDRAY FAQ Can I mount this clip fan upside down? No. We do not recommend mounting the fan upside down. Will I be able to hardwire this clip fan to my own controller or thermostat? We do not recommend hardwiring or splicing our fan's power wires. Such modifications may compromise electrical safety and will void this product's warranty.
- Page 22 AC INFINITY PRODUCTS Inline Duct Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects. Features a thermal controller with intelligent programming that will automatically adjust duct fan speeds in response to changing temperatures.
-
Page 23: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 24 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
