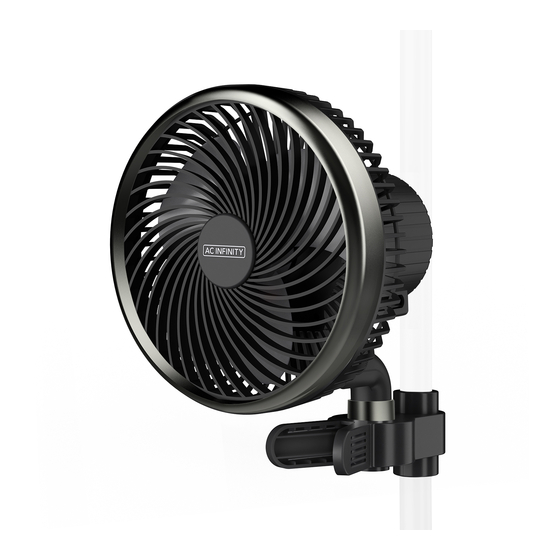

AC Infinity CLOUDRAY Series User Manual

Circulation fan system
Hide thumbs Also See for CLOUDRAY Series:
Table of Contents

Advertisement

Quick Links

CLOUDRAY
CIRCULATION FAN SYSTEM
USER MANUAL
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLOUDRAY Series and is the answer not in the manual?

Questions and answers

Related Manuals for AC Infinity CLOUDRAY Series

Summary of Contents for AC Infinity CLOUDRAY Series

  • Page 1 CLOUDRAY CIRCULATION FAN SYSTEM USER MANUAL USER MANUAL...
  • Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
  • Page 4 MANUAL CODE CC2209X1 PRODUCT MODEL UPC-A CLOUDRAY A6 AC-CCA6 819137022416 CLOUDRAY S6 AC-CCS6 819137022423 CLOUDRAY T6 AC-CCT6 819137022447 CLOUDRAY A9 AC-CCA9 819137022454 CLOUDRAY S9 AC-CCS9 819137022461 CLOUDRAY T9 AC-CCT9 819137022478...

  • Page 5: Manual Index

    Powering and Setup ..............Page 12 Cleaning ..................Page 13 Platform ................Page 15 Connecting to Controllers .............. Page 16 Programming ................. Page 17 Frequently Asked Questions ............Page 19 Other AC Infinity Products ............. Page 20 Warranty ..................Page 21...

  • Page 6: Product Warning

    PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation.

  • Page 7: Recommended Usage

    RECOMMENDED USAGE REDUCING CORD TENSION Please make sure to provide enough slack for the power cord and the extension cord. The fan should be able to oscillate freely without tugging on its cords. MAXIMIZING LIFESPAN This fan utilizes the latest in step motor 6 hr.

  • Page 8: Key Features

    KEY FEATURES EC MOTOR PWM CONTROL COMPACT BASE Next generation motor runs Digitally controlled to Shallower motor base quieter, is more energy enable a range of 10 fan allows for closer mounting efficient, and has a longer speeds and 10 oscillation to poles to maximize lifespan than AC motors.

  • Page 9: Product Contents

    PRODUCT CONTENTS CIRCULATION GRIP ADAPTER EXTENSION CLIP DONGLE CORD (x1) (x1) (x1) (x1) CABLE CABLE MOUNT (x4) (x1)

  • Page 10: Installation

    INSTALLATION STEP 1 Twist to remove the bigger knob piece from the grip clip. Pull the smaller button piece from the vice grip. STEP 2 Slide the grip clip into the swivel. You may need to pull its clamps apart for it to fit over the swivel.
  • Page 11 INSTALLATION STEP 3 Replace the knob and button on either side of the mounting point as desired. STEP 4 Clamp your clip fan onto a pole or post.
  • Page 12 POWERING AND SETUP STEP 1 Plug your clip fan's power cord into an AC power outlet to power it. STEP 2 You may cable manage the cords using the included cable ties or cable mounting set. Adhere the tie mount onto a clean surface. Loop the wire tie into the mount and around the cables.
  • Page 13 CLEANING STEP 1 Unplug your clip fan. STEP 2 Remove the front grille by twisting the grille counter-clockwise and pulling it off. Removing the front grille to clean the fan blades will not void your warranty.
  • Page 14 CLEANING STEP 3 Wipe off any dust and debris from the grille and fan blades using a damp cloth. Set aside to dry as needed. STEP 4 Realign the grille over your clip fan and twist clockwise to lock it in place.
  • Page 15 By creating this fully integrated system, you can power and program all your devices together or separately for optimized grow tent management. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data.
  • Page 16 CONNECTING TO CONTROLLERS The CLOUDRAY circulation fan can connect with select smart controllers as part of an integrated system using the included UIS cable. Please see below for limitations. CONNECTORS To connect to the latest gen controllers such as CONTROLLER 69 PRO (sold separately), use the included UIS extension cord to directly connect the CLOUDRAY fan’s UIS port to the controller’s UIS port.
  • Page 17 PROGRAMMING A-SERIES FAN SPEED ADJUSTING Your clip fan features a single button that cycles through the fan speed from 0-10, indicated by the ring of LED lights. Press the speed button to increase the fan speed level by one. Pressing the button past speed 10 will cycle the fan speed back to 0.
  • Page 18 PROGRAMMING S-SERIES OSCILLATION In addition to the standard features, S-Series models can oscillate to provide airflow at a wide angle. The oscillation function is manually activated using the oscillation button and cannot Oscillation be controlled using external UIS programming. Levels Indicator If set to off, your clip fan will not oscillate regardless of any external programs.
  • Page 19 CLOUDRAY FAQ Can I mount this clip fan upside down? Yes. The CLOUDRAY can be mounted rightside up or upside down. Will I be able to hardwire this clip fan to my own controller or thermostat? We do not recommend hardwiring or splicing our fan's power wires. Such modifications may compromise electrical safety and will void this product's warranty.
  • Page 20 AC INFINITY PRODUCTS Inline Duct Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects. Features a thermal controller with intelligent programming that will automatically adjust duct fan speeds in response to changing temperatures.

  • Page 21: Warranty

    WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
  • Page 22 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
  • Page 24 www.acinfinity.com...

This manual is also suitable for:

Cloudray a6Cloudray s6Cloudray t6Cloudray a9Cloudray s9Cloudray t9 ... Show all
