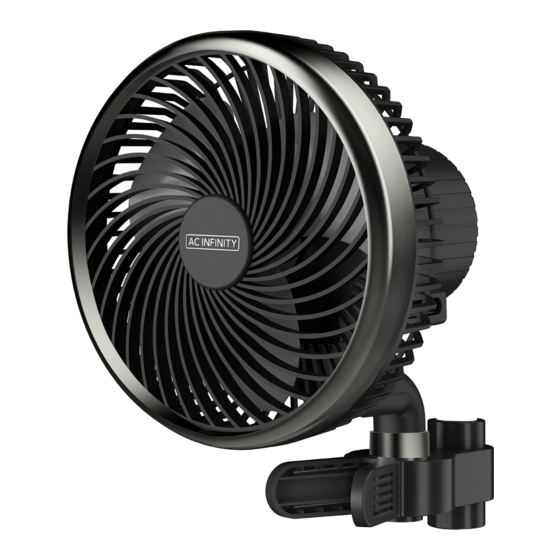

- Page 1 CLOUDRAY CIRCULATION FAN SYSTEM USER MANUAL USER MANUAL...
- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
- Page 4 MANUAL CODE CC2111X1 PRODUCT MODEL UPC-A CLOUDRAY A6 AC-CCA6 819137022416 CLOUDRAY S6 AC-CCS6 819137022423 CLOUDRAY T6 AC-CCT6 819137022447 CLOUDRAY A9 AC-CCA9 819137022454 CLOUDRAY S9 AC-CCS9 819137022461 CLOUDRAY T9 AC-CCT9 819137022478...
-
Page 5: Manual Index
................Page 9 Installation ..................Page 10 Powering and Setup ..............Page 12 Universal Infinity System ............... Page 13 Connecting to Controllers .............. Page 14 Programming ................Page 15 Other AC Infinity Products ............. Page 17 Warranty ..................Page 18... -
Page 6: Product Warning
PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation. -
Page 7: Recommended Usage
RECOMMENDED USAGE MAXIMIZING LIFESPAN To maximize the fan's lifespan, we do not 6 hr. recommend having it oscillate nonstop for more 18 hr. than 18 hours per day. This will preserve the motor by passively keeping it cool to prevent it from wearing down. -
Page 8: Key Features
KEY FEATURES EC MOTOR PWM SPEED CONTROL COMPACT BASE Next generation motor runs Digitally controlled to enable low Shallower motor base quieter, is more energy speeds for gentler airflow while allows for closer mounting efficient, and has a longer expanding maximum level range to poles to maximize lifespan than AC motors. -
Page 9: Product Contents
PRODUCT CONTENTS CIRCULATION GRIP ADAPTER EXTENSION CLIP DONGLE CORD (x1) (x1) (x1) (x1) CABLE CABLE MOUNT (x4) (x1) -
Page 10: Installation
INSTALLATION STEP 1 Twist to remove the bigger knob piece from the grip clip. Pull the smaller button piece from the vice grip. STEP 2 Slide the grip clip into the swivel. You may need to pull its clamps apart for it to fit over the swivel. - Page 11 INSTALLATION STEP 3 Replace the knob and button on either side of the mounting point as desired. STEP 4 Clamp the fan onto a pole or post.
- Page 12 POWERING AND SETUP STEP 1 Plug the fan's power cord into an AC power outlet to power the fan. STEP 2 You may cable manage the cords using the included cable ties or cable mounting set. Adhere the tie mount onto a clean surface. Loop the zip tie into the mount and around the cables.
- Page 13 Advance UIS controllers can provide each connected UIS device with their own automated programming like temperature, humidity, cycles, schedules, and dynamic levels, while also pairing with the AC Infinity app.
- Page 14 CONNECTING TO CONTROLLERS The CLOUDRAY circulation fan can connect with select smart controllers as part of an integrated system using the included UIS cable. Please see below for limitations. UIS CONNECTORS To connect to the latest gen controllers such as CONTROLLER 69, please use the included UIS extension cord to directly connect the CLOUDRAY fan’s UIS port to the controller’s...
- Page 15 PROGRAMMING A-SERIES FAN SPEED ADJUSTING The clip fan features a single button that cycles through the fan speed from 0-10, indicated by the ring of LED lights below. Press the speed button to increase the fan speed level by one. Pressing the button past speed 10 will cycle the fan speed back to 0.
- Page 16 PROGRAMMING S-SERIES OSCILLATION In addition to the standard features, S-Series models can oscillate to provide airflow at a wider angle. Press the swivel button to activate the clip fan's oscillation. The oscillation function is manually activated using the button as indicated here and cannot be controlled using external UIS programming.
- Page 17 AC INFINITY PRODUCTS Inline Duct Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects. Features a thermal controller with intelligent programming that will automatically adjust duct fan speeds in response to changing temperatures.
-
Page 18: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 19 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
