2. Insert the sensor cable into the mixed air chamber, stringing the cable to cover the air path, and secure as
needed.
NOTE: The flexible cable can be easily shaped to fit any duct size but observe a minimum bend radius of
two inches to prevent damage to wires or sensors.
3. Fasten the enclosure to the unit by drilling holes in the side of the unit and threading screws through the
mounting holes in the case.
4. For the cable leading to the AFMS controller, attach conduit to the 1/2" NPT threaded connection hole at
the bottom of the enclosure as needed.
5. Open the cover by pulling slightly on the latch on the right side of the enclosure while pulling on the cover.

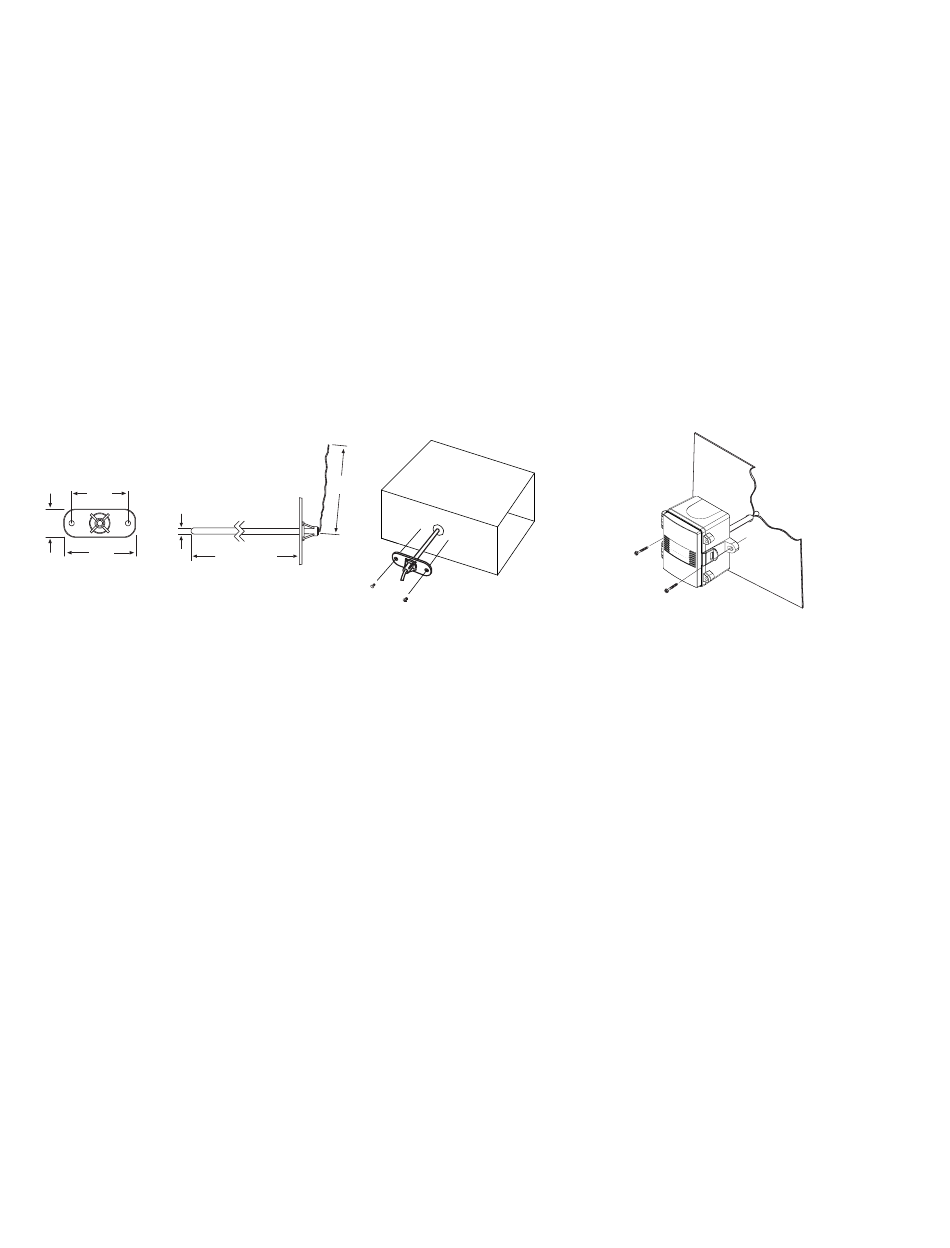

STE-1404/05 Rigid Steel Probe
Use a rigid probe for the return air duct. A rigid probe may also be used for the outside air duct, but only if the
unit does not have an easily-accessible outside air hood.
2.20" STE-1401/1405
63.5 mm
1.10"
27.9 mm 0.25"
6.35 mm
2.80"
71.1 mm
1. Locate the sensor in a straight section of duct, away from heating, cooling, or humidifier sources.
2. Cut a 1/4-inch hole for the probe in the side of the duct as well as smaller holes for screws at the
appropriate locations.
3. Insert the probe and fasten the assembly to the duct using screws threaded through the mounting holes in
the housing.
4. Open the sensor cover (STE-1404 only) by pulling slightly on the latch on the right side of the enclosure
while pulling on the cover.
5. For the cable leading to the AFMS controller, attach conduit to the 1/2" NPT threaded connection hole at
the bottom of the enclosure as needed.
TrueFit Airflow Measurement System Installation Guide
10'
3.05 m
(No Enclosure)
Various Probe Lengths
