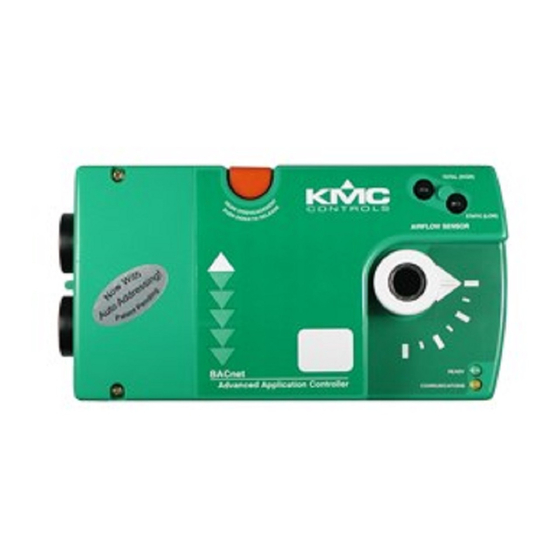

KMC Controls BAC-7003 Installation Manual

These are brief instructions for installing a BAC‑7000
series VAV controller. For more detailed instructions,
review the document Installation, Operation, and
Application Guide for BAC-7000 Series VAV Controllers.
www.kmccontrols.com/ag/bac‑7003
Mounting
Refer to "Illustration 1—Mounting the BAC‑7000
VAV controllers" when mounting the controllers on
a VAV terminal unit.
Set the rotation limits
Before mounting the controller, set the rotational
limits with the two supplied stop pins. These settings
limit the shaft rotation in the clockwise (CW) and
counterclockwise (CCW) directions.
Anti rotation
bracket
Notch and
lock tab
BAC-7003 and BAC-7053 VAV controllers
Installation Guide
Gear clutch button

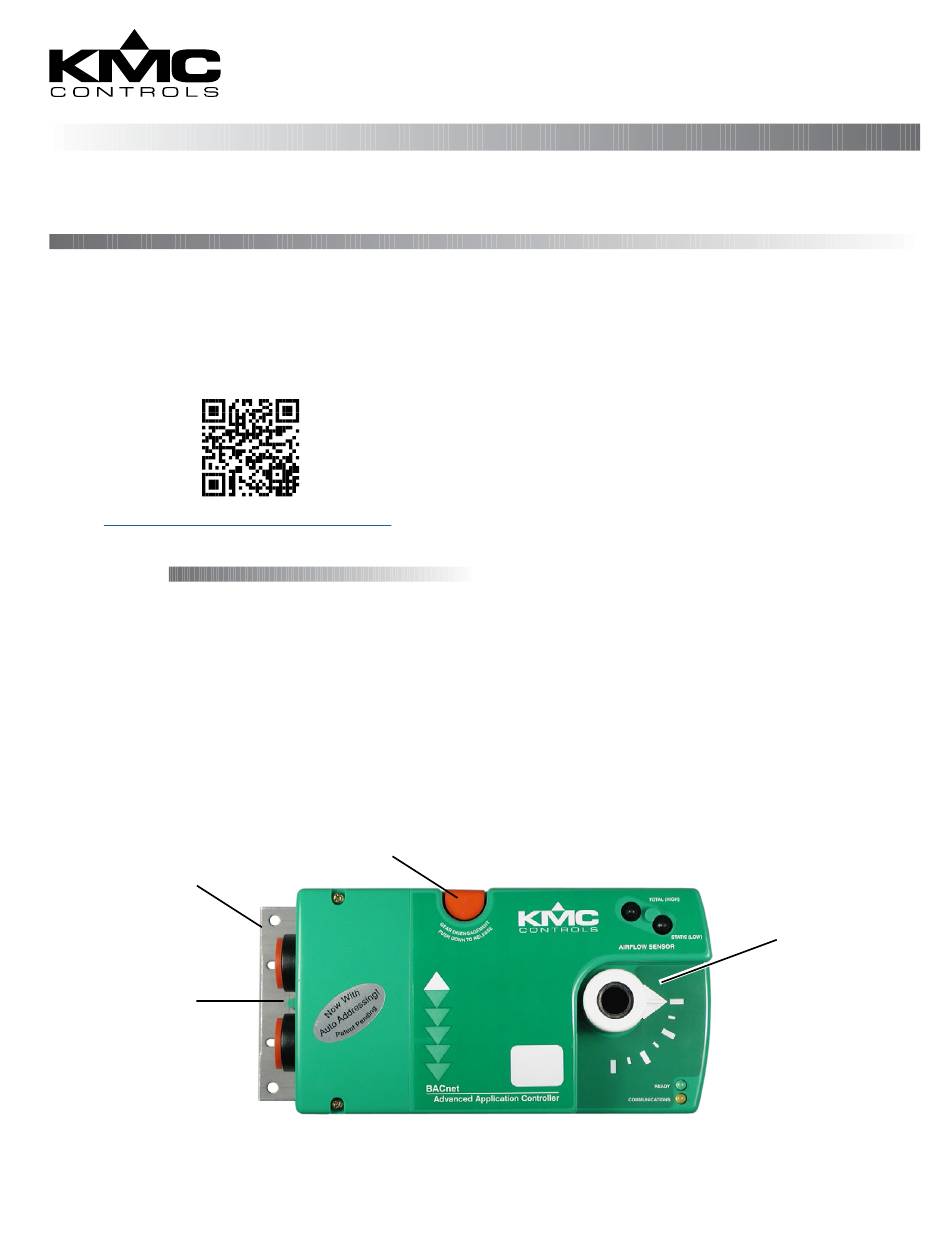

Illustration 1—Mounting the BAC-7000 VAV controllers
Mount the controller
1. Back the set screws out of the drive hub until the
shaft can fit through the collar.
2. Place the controller on the damper shaft in the
approximate final position.
3. Position the anti‑rotation bracket and fasten it
using #8 or #10 self‑tapping screws. Verify the
notch in the bracket securely engages the lock tab
on the controller.
4. Manually position the VAV damper in the fully
open position.
5. Press the gear clutch button and rotate the
drive hub in the same direction that opened the
damper. Turn the hub until it reaches a rotation
limit.
6. Tighten the two set screws in the drive hub to
approximately 50–inch pounds (5.65 N•m) to
lock the hub to the shaft.
1
BACnet VAV controllers
BAC-7003 and BAC-7053
Drive hub
Installation Guide
