Mounting
1.563
(39.7)
Connections
for 1/4" FR
Removeable Conduit Fitting
with 1/2" NPS Threaded Hole
NOTE: For VAV applications with the analog
CTE-5202 thermostat, see the
Applications
controller applications, see the
4702 Static Pressure (Bypass) Control
Application
The CSP-4702 mounts directly to 1/4- to 5/8-inch (6 to
16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm)
square shafts.
1. Ensure the damper can move freely through its
entire range of motion, and fix any binding before
installing the actuator. Turn the damper blade to
its fully closed position.
2. Press (to the right) and hold the gear disengage-
ment lever (see Illustration 1), rotate the actuator
to the fully closed position, and release the lever.
NOTE: Depending on the damper-seal design,
backing the actuator off its stop

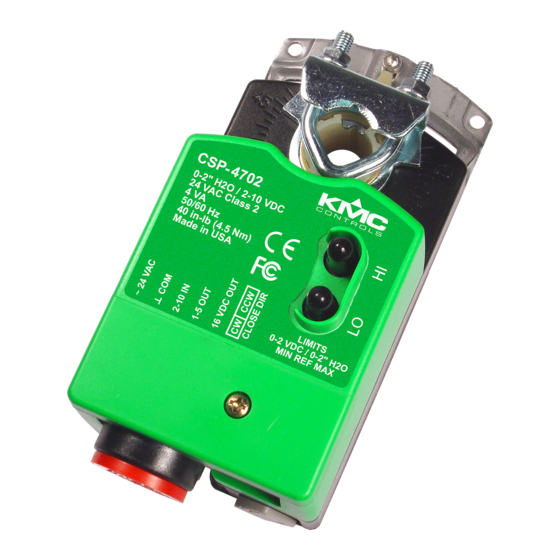

CSP-4702
Analog Differential-Pressure VAV Controller/Actuator
Installation Guide
∆P Ports
Barbed
Tubing
5.312
(134.9)

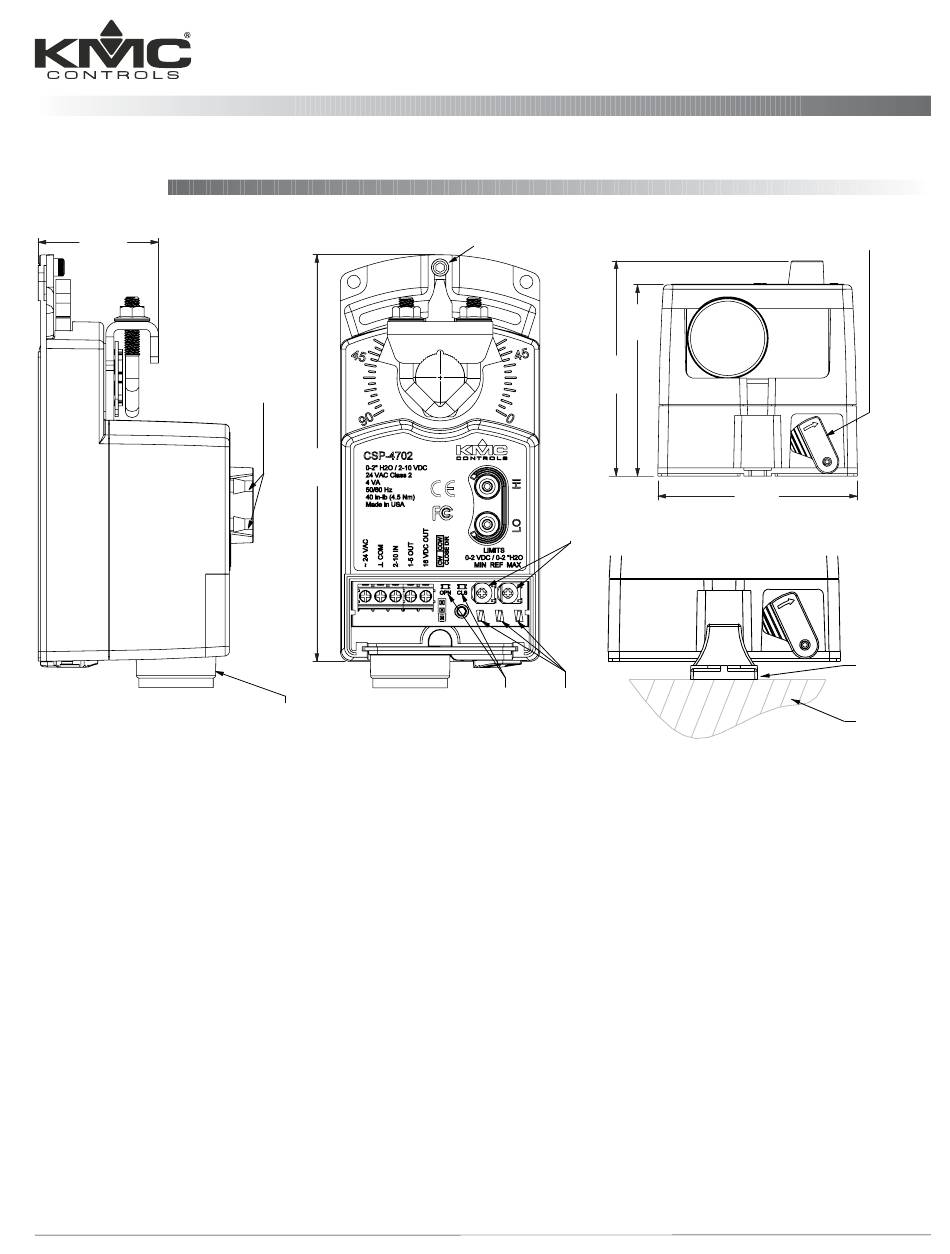

Illustration 1—Overview (Direct-Coupled Mounting)
CTE-5202
Guide. For static pressure
CSP-
Guide.
Adjustable Stop
2.50
(63.5)
2.812
(71.4)
Min/Max
Flow
Setting
Pots
Open &
Min/Max
Close
Flow Limit
LEDs
Meter Taps
approximately 5° may provide tight
damper shut-off.
3. Align the actuator and slide it onto the shaft.
4. Leaving a small gap between the actuator and
mounting surface to prevent any binding, finger-
tighten the nuts on the V-bolt.
5. Insert the provided (HMO-4002) non-rotation
bracket into the slot at the base of the actuator
and secure the non-rotation bracket with two #8
or #10 self-tapping screws.
6. Evenly tighten the V-bolt nuts (30–35 in-lb.).
7. If desired, use a 7/64-inch hex key wrench to
loosen and position the end-stop screw.
NOTE: The two holes at the top of the actuator
are NOT for use in direct-coupled
applications. (They are for remote
mounting, such as with the optional HLO-
4001 Crank Arm Kit.)
1
CSP-4702
Gear
Disengagement Lever
2.60
(66.0)
HMO-4002
Non-Rotation
Bracket
Mounting
Surface
Installation Guide
Advertisement
Related Manuals for KMC Controls CSP-4702
Summary of Contents for KMC Controls CSP-4702
- Page 1 Application Guide. tighten the nuts on the V-bolt. The CSP-4702 mounts directly to 1/4- to 5/8-inch (6 to 5. Insert the provided (HMO-4002) non-rotation 16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm) bracket into the slot at the base of the actuator square shafts.
- Page 2 Wiring Connections Air Pressure Connection 1. Loosen the screw on the conduit fitting and lift up Connect the CSP-4702 to a differential pressure flow to remove the fitting. sensor with 1/4-inch OD x 0.040-inch wall FR instru- ment and control tubing: 2.
- Page 3 1.5 VDC. should go to full closed unless the minimum limit was set at the CSP-4702, and then the damper will 6. Reinstall the conduit fitting and tighten the screw. only go to the minimum setting. If the damper...
- Page 4 Static Pressure Control Troubleshooting Besides VAV applications, the CSP-4702 can also act No Rotation as a static pressure controller in such applications as NOTE: For about 15 seconds after power is applied, AHU or RTU bypass control. It is not then connected no rotation occurs and one or both of the to a thermostat.
