CONTENTS
Introduction ............................................ 1
Mount Controller ..................................... 1
Connect Power ........................................ 3
Sample (BAC-9311ACE) Wiring ............... 6
Replacement Parts .................................. 9
Important Notices ................................... 9

INTRODUCTION

Complete the following steps to install a KMC Conquestâ„¢
BAC-9300ACE Series Unitary Controller. For controller
specifications, see the
data sheet
com. For additional information, see the
Controller Application
Guide.

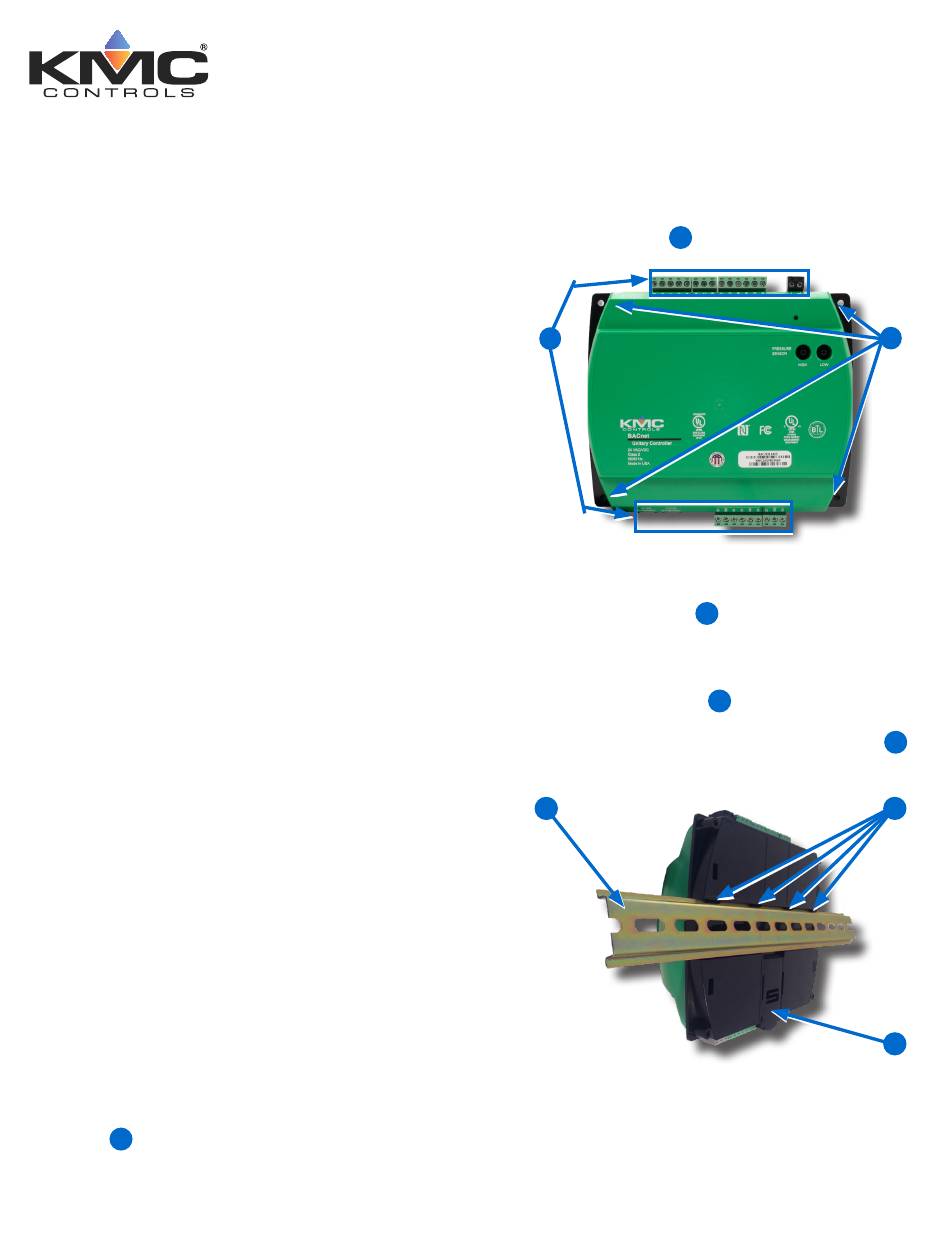

MOUNT CONTROLLER

NOTE: Mount the controller inside a metal
enclosure for RF shielding and physical
protection.
NOTE: To mount the controller with screws on a
flat surface, complete the steps in
Flat Surface on page
controller on a 35 mm DIN rail (such as
integrated in an
complete the steps in
1.
On a Flat Surface
1. Position the controller so the color-coded terminal
blocks
are easy to access for wiring.
1
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
BAC-9300ACE Series Controller
at
kmccontrols.
KMC Conquest
On a
1. Or to mount the
HCO-1103
enclosure),
On a DIN Rail on page
NOTE: The black terminals are for power. The green
terminals are for inputs and outputs. .
2. Screw a #6 sheet metal screw through each corner
of the controller
1
On a DIN Rail
1. Position the DIN rail
is installed the color-coded terminal blocks are easy
to access for wiring.
2. Pull out the DIN Latch
3. Position the controller so that the top four tabs
of the back channel rest on the DIN rail.
3
4. Lower the controller against the DIN rail.
/
877.444.5622
/
Fax: 574.831.5252
Installation Guide
.
2
so that when the controller
3
until it clicks once.
4
/
www.kmccontrols.com
2
5
5
4

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAC-9300ACE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KMC Controls BAC-9300ACE Series

  • Page 1: Table Of Contents

    On a Flat Surface 4. Lower the controller against the DIN rail. 1. Position the controller so the color-coded terminal blocks are easy to access for wiring. KMC Controls, 19476 Industrial Drive, New Paris, IN 46553 877.444.5622 Fax: 574.831.5252 www.kmccontrols.com...
  • Page 2: Connect Sensors And Equipment

    5. Push in the DIN Latch to engage the DIN rail. NOTE: To remove the controller, pull the DIN Latch until it clicks once and lift the controller off the DIN rail. 1. Plug an Ethernet patch cable connected to an STE-9000 Series or STE-6010/6014/6017 sensor into the (yellow) ROOM SENSOR port of the...
  • Page 3: Connect (Opt.) Pressure Flow Sensor

    CONNECT (OPT.) ETHERNET NETWORK 1. For BAC-93x1ACE models, connect an Ethernet patch cable to the 10/100 ETHERNET port. CAUTION On Conquest “E” models, do NOT plug a On Conquest “E” models, do NOT plug a cable meant for Ethernet communications cable meant for Ethernet communications into the Room Sensor port! The Room Sensor into the Room Sensor port! The Room Sensor...
  • Page 4: Power And Communication Status

    (powered) controller is communicating with the network at only 10 Mbps (instead of 100 Mbps). NOTE: If both the green and amber Ethernet LEDs remain OFF, check the power and network cable connections. BAC-9300ACE Series Controller Installation Guide 925-019-08B...
  • Page 5: Configure/Program The Controller

    CONFIGURE/PROGRAM THE CONTROLLER SETUP PROCESS CONTROLS See the table for the most relevant KMC Controls tool for Configu- Programming Web Page TOOL configuring, programming, and/or creating graphics for ration (Control Basic) Graphics* the controller. See the documents or Help systems for Conquest Net- ...
  • Page 6: Sample (Bac-9311Ace) Wiring

    SAMPLE (BAC-9311ACE) WIRING (Single Duct VAV, Series Fan Powered with Modulating Reheat and Vent Control) Line Voltage Damper Primary Start Reheat Speed Actuator MEP-4001/ MEP-4013 – – CCW COM – Neutral Phase 24 VAC STE-9521 NOTE: Connect the STE-9xxx (or STE-6010/6014/6017 with no ventilation control) sensor to the Room Sensor port...
  • Page 7: Input/Output Objects/Connections

    Fan Start - Stop Fan Start - Stop Stage 1 Compressor Stage 1 Compressor Stage 2 Compressor Stage 2 Compressor Reversing Valve Reversing Valve Auxiliary Heat Auxiliary Heat Binary Output #6 Binary Output #6 BAC-9300ACE Series Controller Installation Guide 925-019-08B...
  • Page 8 SC terminals instead of GND AO8/UO8 Fan Speed terminals. AO9/UO9 Analog Output #9 AO10/UO10 Analog Output #10 Heating Stage 1 Heating Stage 2 Heating Stage3 Primary Damper CW Primary Damper CCW BAC-9300ACE Series Controller Installation Guide 925-019-08B...
  • Page 9: Replacement Parts

    Terminal Blocks DIN Clips this document. (1) Black 2 Position (2) Small The KMC logo is a registered trademark of KMC Controls, (2) Grey 3 Position (1) Large Inc. All rights reserved. (2) Green 3 Position (4) Green 4 Position The KMC Connect Lite™...
