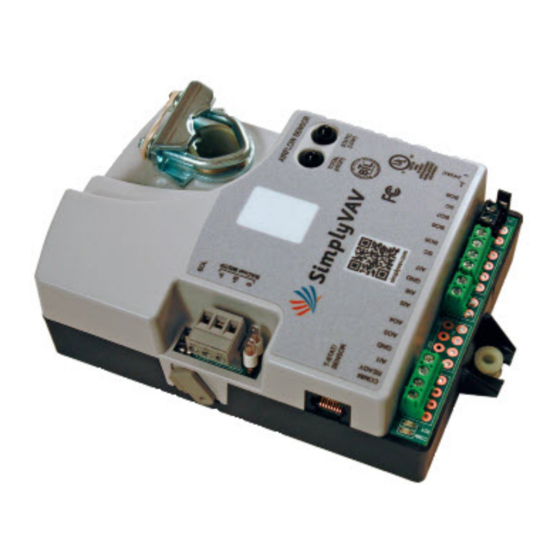

KMC Controls SimplyVAV BAC-8001 Application And Installation Manual

Hide thumbs Also See for SimplyVAV BAC-8001:

Installation manual (21 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the SimplyVAV BAC-8001 and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls SimplyVAV BAC-8001

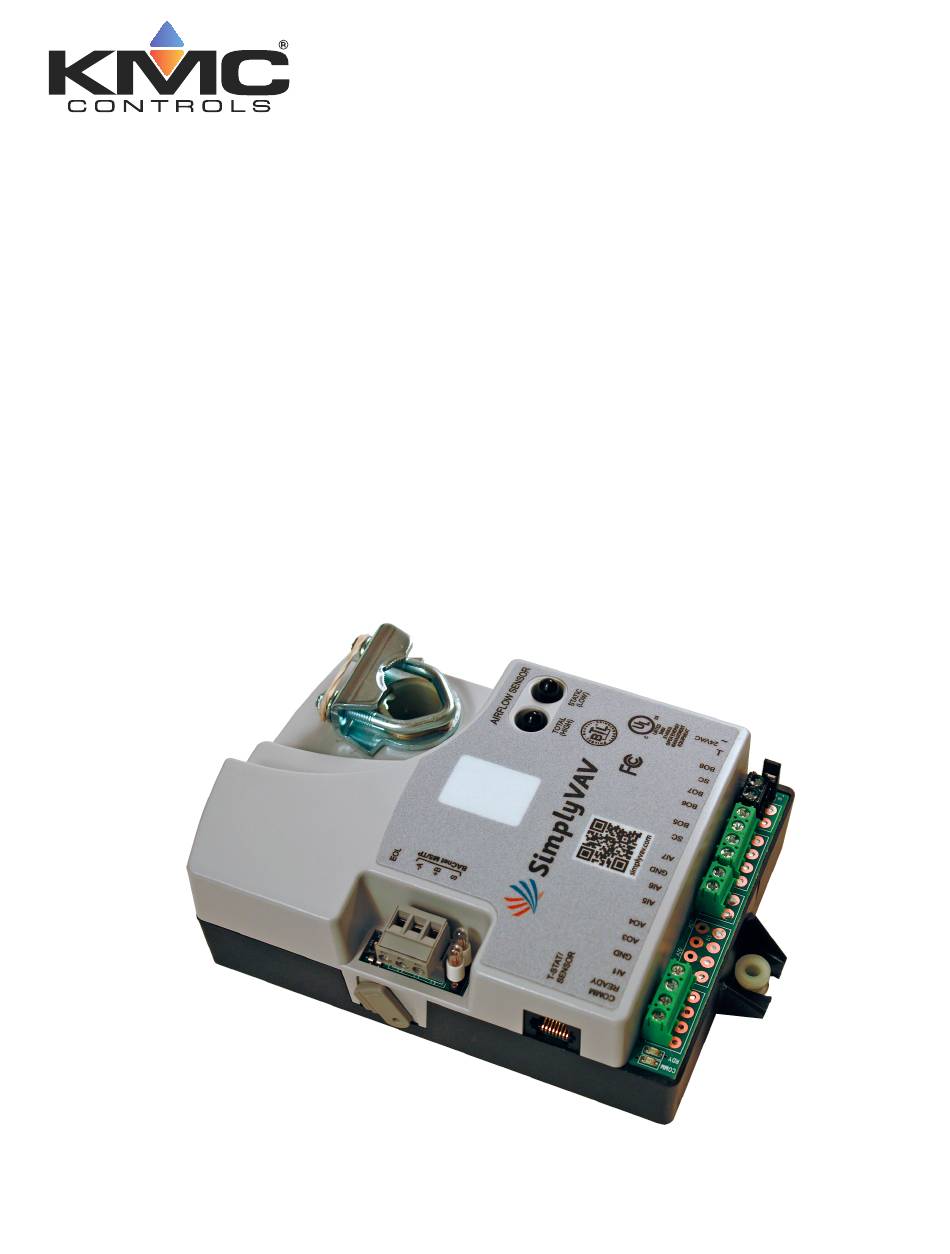

Page 1 SimplyVAV Application and Installation Guide Revision H...
Page 2 KMC Controls, Inc. makes no representations or warranties with respect to this manual. In no event shall KMC Controls, Inc. be liable for any damages, direct or incidental, arising out of or related to the use of this manual.
Page 3: Table Of Contents
SimplyVAV Contents C o n t e n t s Contents Section 1: About the controllers Specifications Accessories and replacement parts Available models Safety considerations Section 2: Installing the controllers Setting the rotation limits Mounting on a VAV terminal box Connecting an airflow sensor Connecting inputs and outputs Connecting room temperature sensors...
Page 4 Contents KMC Controls, Inc. System diagnostic indicators NEED AHU (BV1) NEED COLDER SUPPLY (BV2) NEED MORE STATIC (BV3) NEED HOTTER SUPPLY (BV7) Damper operation Fan operation Series Fan Parallel Fan Reheat sequence Modulating reheat Staged reheat Time proportioned reheat Floating reheat...
Page 5 SimplyVAV Se c t i o n 1: A b o u t t h e c o n t r o l l e r s This section provides a description of the SimplyVAV series of controllers. It also introduces safety information.
Page 6: Section 1: About The Controllers
Section 1: About the controllers KMC Controls, Inc. BAC-8007 Model BAC-8007 is supplied with inputs, outputs, and sequences of operation for the following functions. Dual-duct VAV heating and cooling Occupancy setback—requires STE-8201 System diagnostic indicators Airflow balancing Additional topics in this section...
Page 7 SimplyVAV Section 1: About the controllers Binary outputs Binary outputs are configured to represent BACnet binary output objects. No field configuration is required. For details on application specific output connections see the section Application drawings on page Key features Optically isolated triac output Connector Screw terminals for wire size 12-26 AWG Output range...
Page 8 Section 1: About the controllers KMC Controls, Inc. Regulatory UL 916 Energy Management Equipment BACnet Testing Laboratory listed as an application specific controller (ASC). CE compliant FCC Class B, Part 15, Subpart B and complies with Canadian ICES-003 Class B This device complies with part 15 of the FCC Rules.
Page 9: Accessories And Replacement Parts
2.14 in. 54 mm 1.92 in. 49 mm Accessories and replacement parts The following accessories and replacement parts are available from KMC Controls, Inc. Power transformer XEE-6111-50 Transformer, 120-to-24 VAC, 50 VA, single-hub XEE-6112-50 Transformer, 120-to-24 VAC, 50 VA, dual-hub...
Page 10: Available Models
Safety considerations KMC Controls assumes the responsibility for providing you a safe product and safety guidelines during its use. Safety means protection to all individuals who install, operate, and service the equipment as well as protection of the equipment itself. To promote safety, we use hazard alert labeling in this manual.
Page 11 SimplyVAV Section 1: About the controllers Danger represents the most severe hazard alert. Bodily harm or death will occur if danger guidelines are not followed. Danger Warning represents hazards that could result in severe injury or death. Warning Caution indicates potential personal injury or equipment or property damage if instructions are not followed.
Page 12 Section 1: About the controllers KMC Controls, Inc. Revision H...
Page 13: Section 2: Installing The Controllers
SimplyVAV Se c t i o n 2: In s t al l i n g t h e c o n t r o l l e r s This section provides important instructions and guidelines for installing the SimplyVAV controllers.
Page 14: Mounting On A Vav Terminal Box
Section 2: Installing the controllers KMC Controls, Inc. To set the rotational limits, do the following Turn the controller over so you have access to the back. Manually rotate the actuator fully clockwise as viewed from the back. Remove the stop screw from its storage location and clean any debris from the threads.
Page 15: Connecting An Airflow Sensor
SimplyVAV Section 2: Installing the controllers Connecting an airflow sensor An airflow sensor is incorporated as one of the inputs to the controller. Remove the plugs and connect the tubing from the pitot assembly to the airflow sensor inputs next to the drive hub.
Page 16: Connecting A Dat Sensor
Section 2: Installing the controllers KMC Controls, Inc. Connect the controller to sensors with standard Ethernet cables up to 75 feet long. See the installation guide supplied with the sensors for sensor installation instructions. Illustration 2–4 Connecting to a sensor...
Page 17: Connecting Power
Use a Class–2 transformer of the appropriate size to supply power to the controller. KMC Controls recommends powering only one controller from each transformer. Do not run 24 volt, AC power from within an enclosure to external controllers.
Page 18: Maintenance
Section 2: Installing the controllers KMC Controls, Inc. Maintenance SimplyVAV controllers require no routine maintenance. If necessary, clean with a damp cloth and mild soap. Revision H...
Page 19: Section 3: Changing The Room Setpoint
SimplyVAV Se c t i o n 3: C h an g i n g t h e r o o m s e t p o i n t This section covers topics for the end user in a facility. Changing the SimplyVAV user functions with an STE-8001 or STE-8201 are limited to changing the active setpoints in a room.
Page 20 Section 3: Changing the room setpoint KMC Controls, Inc. Changing room setpoints (continued) Procedure Steps Sensor display Set the active cooling setpoint. 1. Press the buttons to change the cooling setpoint temperature. The setpoint changes in increments of 0.5 degrees.
Page 21: Section 4: Configuring The Controllers
SimplyVAV Se c t i o n 4: C o n f i g u r i n g t h e c o n t r o l l e r s This topics in this section are advanced topics for control technicians and engineers. The configuration functions that are accessible through an STE-8000 series digital sensor are all of the values and settings that are entered during the installation and commissioning of a VAV terminal unit.
Page 22 Section 4: Configuring the controllers KMC Controls, Inc. Enter the configuration mode Procedure Detailed steps Sensor display Starting display 1. Start at the temperature display. 3 2. Press the buttons together. If Password 2 is not required, the display changes to CNFG If required, enter Password 2.
Page 23: Entering System Temperature Setpoints And Limits
SimplyVAV Section 4: Configuring the controllers Entering system temperature setpoints and limits The system temperature setpoints set the operational parameters and limits for the VAV terminal unit. The temperature setpoints include the following items. Minimum cooling and maximum heating setpoints Occupied and unoccupied cooling setpoints Occupied and unoccupied heating setpoints Changeover differential setpoint...
Page 24: Setpoint On Page
Section 4: Configuring the controllers KMC Controls, Inc. Procedure to set the temperature setpoints (continued) Procedure Detailed steps Sensor display 1. Press the buttons to set the minimum cooling setpoint. The setpoint will change in 0.5° increments. 2. Press the...
Page 25 SimplyVAV Section 4: Configuring the controllers Procedure to set the temperature setpoints (continued) Procedure Detailed steps Sensor display Set the unoccupied cooling This setpoint is used as the active setpoint when the UNCL setpoint. space is unoccupied. 1. Press the buttons to set the unoccupied cooling setpoint.
Page 26 Section 4: Configuring the controllers KMC Controls, Inc. Procedure to set the temperature setpoints (continued) Procedure Detailed steps Sensor display 1. Press the buttons to select one of the Select a new configuration STPT function or exit. following: , or...
Page 27: Configuring The Vav Box Options
SimplyVAV Section 4: Configuring the controllers Configuring the VAV Box options The box options set the controller for the specific mechanical installation of the VAV terminal unit. The box options include the following items. The K-factor for the VAV terminal unit. If the K-factor is not available, see the topic K-factors on page Reheat configuration (optional) Fan configuration (optional)
Page 28 Section 4: Configuring the controllers KMC Controls, Inc. Procedure to set the box functions (continued) Procedure Detailed steps Sensor display 1. Press the buttons to set the primary K- factor. 2. Press the button to save the entry and advance to Point the next function.
Page 29: Set The Airflow Setpoints
SimplyVAV Section 4: Configuring the controllers Procedure to set the box functions (continued) Procedure Detailed steps Sensor display 1. Press the buttons to which direction to Set the damper direction to DDIR close. damper moves to close. CCW—The actuator turns counterclockwise to close the damper.
Page 30 Section 4: Configuring the controllers KMC Controls, Inc. Procedure to set the airflow setpoints Procedure Detailed steps Sensor display Starting display 1. Start at the temperature display. 3 2. Press the buttons together. 237 If Password 2 is not required, the display...
Page 31 SimplyVAV Section 4: Configuring the controllers Procedure to set the airflow setpoints (continued) Procedure Detailed steps Sensor display 1. Press the buttons to set a value for the auxillary airflow. The setpoint changes in 1 CFM increments. 2. Press the button to save the setpoint and advance Point to the next function.
Page 32 Section 4: Configuring the controllers KMC Controls, Inc. Procedure to set the airflow setpoints (continued) Procedure Detailed steps Sensor display 1. Press the buttons to select one of the Select a new configuration FLOW function or exit. following: , or...
Page 33: Advanced Options
SimplyVAV Section 4: Configuring the controllers Advanced options The advanced options set up passwords and special features in the controller. Establish or change Password 1 and Password 2 Set timers for standby and override (optional) Enable automatic occupancy (optional) Enable discharge air temperature control (optional) Calibrate the sensor Setting the advance options requires entering Password 2 which is described in the topic Getting started with configuration on page...
Page 34 Section 4: Configuring the controllers KMC Controls, Inc. Procedure to set the advanced options (continued) Procedure Steps Sensor display 3. When the button is pressed for the last digit, the Point new password is saved and the display advances. Change Password 2.
Page 35: Restore Application
SimplyVAV Section 4: Configuring the controllers Procedure to set the advanced options (continued) Procedure Steps Sensor display 1. Press the buttons to set the calibration Set the temperature sensor calibration constant. constant. The setpoint will change in 0.1 minute increments. CALIB For a low input reading enter a positive correction value.
Page 36 Section 4: Configuring the controllers KMC Controls, Inc. Procedure to restore application Procedure Detailed steps Sensor display Starting display 1. Start at the temperature display. 3 2. Press the buttons together. 237 If Password 2 is not required, the display...
Page 37: Section 5: Balancing Airflow
SimplyVAV Se c t i o n 5: B al an c i n g ai r f l o w Topics in this section are for control technicians or engineers who will be balancing the airflow in the controllers. The airflow balancing procedure described in this section requires the following items.
Page 38 Section 5: Balancing airflow KMC Controls, Inc. The airflow balancing procedure (continued) Procedure Steps Sensor display 1. From the display, press the buttons to Select the CNFG display. CNFG CNFG advance to and the display. COMM BLNC COMM BLNC 2. Press the button to select .
Page 39 SimplyVAV Section 5: Balancing airflow The airflow balancing procedure (continued) Procedure Steps Sensor display Note: The airflow will attempt to stabilize on the lowest value for either the cooling or heating minimum airflow even if only one mode is operational. Note: The airflow displayed by the digital sensor in this step is the actual, uncorrected airflow.
Page 40 Section 5: Balancing airflow KMC Controls, Inc. The airflow balancing procedure (continued) Procedure Steps Sensor display Measure and enter the actual The display begins flashing and also displays the SMIN SMIN minimum secondary airflow actual airflow at the bottom. Note: The airflow displayed by the digital sensor in this step is the actual, uncorrected airflow.
Page 41: Section 6: Application Drawings
SimplyVAV Se c t i o n 6: A p p l i c at i o n d r awi n g s This section covers the drawings, materials, and instructions for specific VAV applications. Each SimplyVAV model is designed for a specific set of applications. The following topics are for control technicians and engineers that will plan for and install controllers for SimplyVAV applications.
Page 42: Cooling Or Heating Without Reheat
Section 6: Application drawings KMC Controls, Inc. Cooling or heating without reheat The BAC-8001 is configured for single-duct cooling VAV control without reheat. Connect the controller as shown in the illustration Cooling or heating application drawing on page A BAC-8005 or BAC-8205 may also be used for this application.
Page 43: Staged Reheat
SimplyVAV Section 6: Application drawings Staged reheat The staged reheat application is for BAC-8005 or BAC-8205 controllers. The controllers are configured to switch reheat units that are controlled with 24 volts AC. Reheat units with up to three stages of reheat can be controlled by these controllers. For one-stage, electric reheat or hot water reheat with an on/off valve, use only output terminal BO6.
Page 44: Modulating Reheat
Section 6: Application drawings KMC Controls, Inc. Modulating reheat The modulating reheat application is for a BAC-8005 or BAC-8205 controller. The modulating option for reheat can control either an electric reheat unit with an analog input or a modulating hot water valve. The analog reheat output at output terminal AO3 varies between 0 and 10 volts DC.
Page 45: Time Proportional Reheat
SimplyVAV Section 6: Application drawings Time proportional reheat The time proportional reheat application is for BAC-8005 or BAC-8205 controllers. This application is typically used in hydronic systems with a hot water reheat coil and a wax top control valve. The reheat output is a triac that can switch up to 1 ampere at 24 volts AC. For cooling and heating, a duct temperature sensor is required for Discharge Air Temperature limiting and automatic changeover.
Page 46: Floating Reheat
Section 6: Application drawings KMC Controls, Inc. Floating reheat The floating reheat application is for BAC-8005 or BAC-8205 controllers. Use this application in hydronic systems that are controlled by an actuator with tri-state inputs. The reheat outputs are triacs that can switch up to 1 ampere at 24 volts AC.
Page 47: Dual-Duct Application
SimplyVAV Section 6: Application drawings Dual-duct application The dual-duct application is for a BAC-8007 controller. Dual-duct VAV requires a TSP-8001 actuator to be used with the BC-8007 as shown in the illustration Dual-duct wiring diagram on page Submittal sheets for several variations of this application are available from the BAC-8000 series page at KMCControls.com.
Page 48 Section 6: Application drawings KMC Controls, Inc. Revision H...
Page 49: Section 7: Sequences Of Operation
SimplyVAV Se c t i o n 7: Se q u e n c e s o f o p e r at i o n Topics in this section cover the sequences of operation for the SimplyVAV controllers. These are advanced topics for control technicians and engineers. These sequences of operation are descriptions of each major component of the SimplyVAV programming.
Page 50: Occupancy Sequence
Section 7: Sequences of operation KMC Controls, Inc. STE-6000 series discreet temperature sensors—There are three models of the STE-6000 series sensors compatible with the SimplyVAV controllers. If one of the three sensors is detected, the sensor's temperature is mapped to the Space Temperature Reference value object as the temperature input value.
Page 51: Unoccupied
SimplyVAV Section 7: Sequences of operation Controllers with a connected motion sensor change to Occupied upon the detection of primary airflow and motion in the space. The unit will remain in the OCCUPIED state as long as periodic motion is detected and primary airflow continues. If motion stops, the controller changes to STANDBY.
Page 52: Setpoint Limits
Section 7: Sequences of operation KMC Controls, Inc. Active setpoint—The active setpoint is the current setpoint. The active setpoint is determined by the following. If the space is occupied, the controller uses the occupied setpoint as the active setpoint. If an STE-6014 and STE-6017 is connected, the Active setpoint is set by the dial to be a few degrees above or below the Occupied setpoint.
Page 53: Airflow Setpoints Sequence
SimplyVAV Section 7: Sequences of operation The SimplyVAV controllers use up to three PID loops. The heating PID loop. The cooling PID loop. The discharge air temperature (DAT) loop. For SimplyVAV controllers, the output of either the cooling and heating PID loop is used to calculate the position of the damper.
Page 54: System Diagnostic Indicators
Section 7: Sequences of operation KMC Controls, Inc. enabled, the VAV terminal will be controlled by the DAT loop. The unit will also limit the Discharge Air Temperature to within 15° F of the Space Temp Reference. When there is a call for heat and the primary air is cool air, the reheat outputs are directly controlled by the DAT Loop and the DAT Setpoint reset based on the output of the Heating loop.
Page 55: Need Ahu (Bv1)
SimplyVAV Section 7: Sequences of operation NEED AHU (BV1) The Need AHU Start value object is set to TRUE (1) for any of the following conditions. The system mode is UNOCCUPIED and the Cooling loop or the Heating loop is greater than 100% for longer than 10 minutes.
Page 56: Fan Operation
Section 7: Sequences of operation KMC Controls, Inc. Fan operation The SimplyVAV controllers support both series and parallel fan powered VAV units. For either type of fan operation, the fan is controlled through the following terminals. A binary output triac controls a 24-volt fan starting circuit. See the topic...
Page 57: Reheat Sequence
SimplyVAV Section 7: Sequences of operation When the unit Occupancy state is UNOCCUPIED, the fan starts and runs at minimum speed only on a call for heating. The fan starts when the Heating loop is greater than 5% and stops when the Heating loop is less than 1%. Illustration 7–3 Parallel fan operation MAX FAN SPEED OCCUPIED...
Page 58: Modulating Reheat
Section 7: Sequences of operation KMC Controls, Inc. Modulating reheat If the controller is configured for modulating reheat, it controls an analog reheat unit with 0- 10 volts DC at the analog reheat output. On a call for reheat, the reheat output is modulated over the span of the Reheat loop.
Page 59: Time Proportioned Reheat
SimplyVAV Section 7: Sequences of operation Time proportioned reheat For controllers configured for time proportional reheat, the duty cycle of a binary triac output varies over a 10 second period. For example, if the Reheat loop is at 50%, the reheat output is ON for 5 seconds and OFF for 5 seconds.
Page 60: Balancing Airflow Sequence
Section 7: Sequences of operation KMC Controls, Inc. Balancing airflow sequence Balancing airflow is the process of calibrating the internal airflow sensor to a known standard. In the field, airflow is measured with an airflow hood or other measuring instrument and then compared to the airflow measurements from the sensor in the controller.
Page 61: Dual Duct
SimplyVAV Section 7: Sequences of operation Dual duct A dual duct installation consists of separate primary heating and cooling ducts, both with control dampers and airflow monitoring. For this type of installation a SimplyVAV BAC-8007 controls the cooling air (primary) damper and a TSP-8001 actuator controls the heating air (secondary) damper.
Page 62 Section 7: Sequences of operation KMC Controls, Inc. Revision H...
Page 63: Section 8: System Integration And Networking
SimplyVAV Se c t i o n 8: Sy s t e m i n t e g r at i o n an d n e t wo r ki n g Topics in this section cover integrating the controllers into a building automation network. These are advanced reference topics for control technicians and engineers.
Page 64: Connections And Wiring
Section 8: System integration and networking KMC Controls, Inc. Connections and wiring Use the following principles when connecting a controller to an MS/TP network: Connect no more than 128 addressable BACnet devices to one MS/TP network. The devices can be any mix of controllers or routers.
Page 65: Setting Up Network Communications
SimplyVAV Section 8: System integration and networking Bulbs are open If one or both bulbs are open—as tested with an ohm meter—it indicates the voltage or current on the network exceeded safe levels. Correct the conditions and replace the bulbs. Bulbs not inserted correctly One lead from one or both of the bulbs are not inserted into the socket.
Page 66 Section 8: System integration and networking KMC Controls, Inc. Procedure to set up network communications (continued) Procedure Detailed steps Sensor display 1. Press the buttons to select a new baud. Enter the baud BAUD 2. Press the button is save the selected baud.
Page 67: Bacnet Objects
SimplyVAV Section 8: System integration and networking BACnet objects The SimplyVAV controllers are BACnet Application Specific Controller (ASC) that are composed of standard BACnet objects. This section lists the objects that are likely to be monitored by a standard BACnet operator workstation to verify system operation. Changing the configuration of any object may result in unpredictable operation of a controller and damage to equipment that is under control of a SimplyVAV controller.
Page 68: Value Objects
Section 8: System integration and networking KMC Controls, Inc. Value objects BACnet value objects represent setpoints or other operational conditions in the controller. Note: Not all objects are present in every model. Table 8–4 Analog value objects Object Name Description...
Page 69 SimplyVAV Section 8: System integration and networking Analog value objects (continued) Object Name Description AV36 DAT STPT Discharge Air Temp Setpoint AV37 SAT CHANGEOVER SAT Changeover Temperature AV38 LOCAL OVRD TIME Local Override Timer AV39 STANDBY TIME Standby Timer (motion) AV40 STANDBY TRIGGER Standby Trigger...
Page 70: Loop Objects
Section 8: System integration and networking KMC Controls, Inc. Binary value objcts (continued) Object Name Description BV12 BALANCE MODE Balance Mode BV13 DAT SENSOR DAT Sensor Present BV14 PRI BAL TRIGGER Primary Balance Trigger Table 8–6 Multistate value objects Object...
Page 71: Appendix A: K-Factors
SimplyVAV A p p e n d i x A : K - f ac t o r s To set up a VAV controller, a K-factor must be entered into the controller. Typically, this is part of the airflow chart that the manufacturer places on the VAV unit. If this information is missing and not available from the manufacturer, use the K-factor in the following chart.
Page 72 Appendix A: K-factors KMC Controls, Inc. Revision H...
Page 73: Index
SimplyVAV bulbs I n d e x network 63 replacement 9 accessories 9 calibration actuator airflow 37 mounting 14 sensors 33 rotation limits 13 Celsius display 35 shaft size 6 changeover sequence 53 specifications 6 configuration 21 speed 6 connecting airflow airflow sensor 15 balancing 37...
Page 74 KMC Controls, Inc. Password 2 21 PID loops inputs as BACnet objects 70 as BACnet objects 67 sequence of operation 52 connecting 15 DAT sensor 16 room sensors 15 reheat specifications 6 configuration 27 installing the controller 13 floating 46...
Page 75 SimplyVAV setting changeover 23 limits 23 occupied 23 room 19 standby 23 shaft size for actuator 6 specifications 6 standby sequence 50 setting timer 33 submittal sheets 41 system diagnostic indicators 54 three-stage reheat 43 time proportional reheat 45 timers, setting 33 transformer wiring 17 tri-state reheat 46 two-stage reheat 43...
