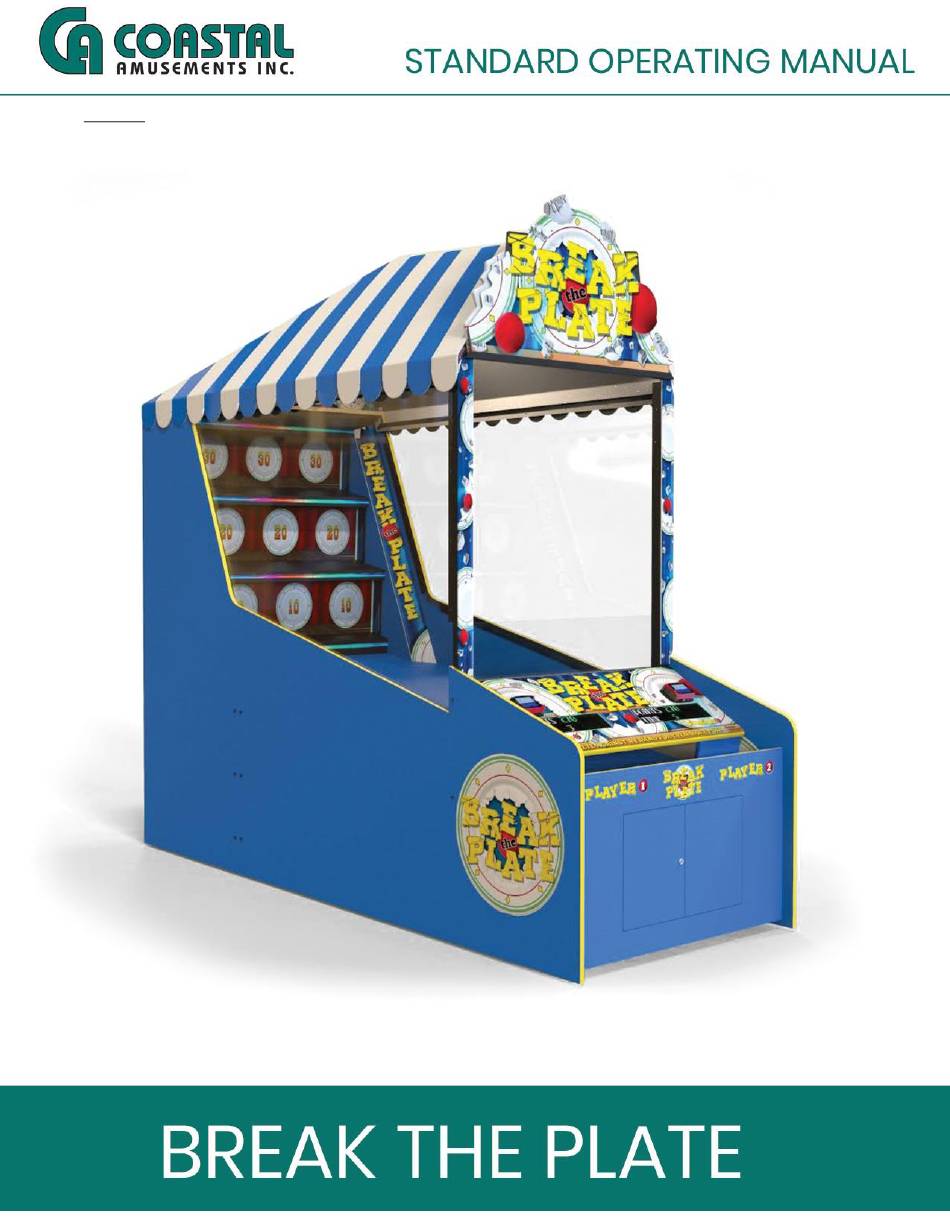

  • Page 1 Version: BTP 2.1.2 ST...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ...................... 3 SAFETY NOTICES ..................... 3 INSTALLATION ......................4 INTERNET OPTIONS INSTRUCTIONS ................ 5 MENU OPTIONS ...................... 8 EXPLODED DIAGRAMS ..................13 SCHEMATICS ......................20 FACTORY WARRANTY .................... 25 Coastal Amusements Inc. | Break the Plate...

  • Page 3: Introduction

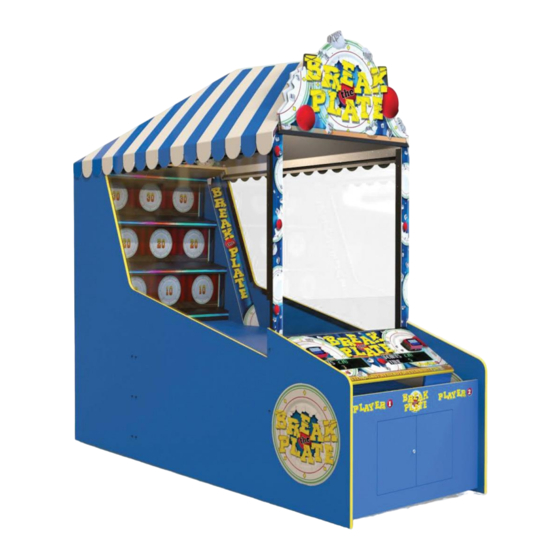

    INTRODUCTION Break the Plate is a 1 or 2 player amusement redemption game where the player throws balls at a video screen in an effort to ‘break’ the plates to score points. The game has 3 video monitors stacked vertically, each stepped back from the other. Tickets are awarded based on the number of points scored.

  • Page 4: Installation

    12 volt @ 10 ampere/5 volt @ 20 ampere supply. Both supplies are UL rated and run on 110v or 220v 50/60 Hz mains. However, the operating voltage must be switched manually. Coastal Amusements Inc. | Break the Plate...

  • Page 5: Internet Options Instructions

    ‘TAB’ until the ‘Scan’ button is highlighted in yellow and then press space. (If you ever need to ‘TAB’ back to a previous item, hold down ‘SHIFT’ when you press ‘TAB’). You will then see a screen similar to the following: Coastal Amusements Inc. | Break the Plate...
  • Page 6 8.8.8.8 or 8.8.4.4 to use Google’s DNS servers or find another public DNS server on the web. When all fields are correctly filled out, tab down to the ‘Save’ button and press the spacebar. You will then see the following screen: Coastal Amusements Inc. | Break the Plate...
  • Page 7 You can now remove the keyboard and reboot the game. Upon reboot, the game will then attempt to make an initial contact with our server. If you have any questions, call Coastal Amusements at +1 (732) 905-6662. Support is available from 08:00 to 16:30 PM EST, Monday through Friday.

  • Page 8: Menu Options

    $1.00 Set this option to the monetary value of one credit for accurate bookkeeping stats. Note: This setting must be accurate in order to correctly calculate the overall percentage payout of the game. Coastal Amusements Inc. | Break the Plate...
  • Page 9 (by 10s) threshold is on. DYNAMIC THRESHOLD ON/OFF Setting this option to ON will enable the options on the right side of the screen to dynamically control the points needed to win the bonus. Coastal Amusements Inc. | Break the Plate...
  • Page 10 PAGE 1 PAID PLAYS PAGE 1 TOTAL GAMES PLAYED PAGE 1 GAME TICKETS PAGE 2 COMPETITION TICKETS PAGE 2 BONUS TICKETS PAGE 2 BONUS TICKETS % PAGE 2 0.00% 0.00% TOTAL TICKETS PAGE 2 Coastal Amusements Inc. | Break the Plate...
  • Page 11 This screen will show all bookkeeping information. Pressing RESET on this screen will clear the current audits. A screen will appear asking to confirm that you want to do this. Press ATTENDANT for previous screen Press MENU for next screen There are 4 pages of audits. Coastal Amusements Inc. | Break the Plate...
  • Page 12 Save any changes made and exit the EXIT AND SAVE menu. If you have any questions or comments, please call our service department at +1 732 905 6662. We are open Monday through Friday 08:00 – 16:30 EST (USA). Coastal Amusements Inc. | Break the Plate...

  • Page 13: Exploded Diagrams

    EXPLODED DIAGRAMS Coastal Amusements Inc. | Break the Plate...
  • Page 14 Coastal Amusements Inc. | Break the Plate...
  • Page 15 Coastal Amusements Inc. | Break the Plate...
  • Page 16 Coastal Amusements Inc. | Break the Plate...
  • Page 17 Coastal Amusements Inc. | Break the Plate...
  • Page 18 Coastal Amusements Inc. | Break the Plate...
  • Page 19 Coastal Amusements Inc. | Break the Plate...

  • Page 20: Schematics

    SCHEMATICS Coastal Amusements Inc. | Break the Plate...
  • Page 21 Coastal Amusements Inc. | Break the Plate...
  • Page 22 Coastal Amusements Inc. | Break the Plate...
  • Page 23 Coastal Amusements Inc. | Break the Plate...
  • Page 24 Coastal Amusements Inc. | Break the Plate...

  • Page 25: Factory Warranty

    FACTORY WARRANTY Coastal Amusements, Inc. warranties all parts and components in new games. All parts and components are warranted against material defects and workmanship as follows: • Proprietary Electronic Hardware: 180 days • Monitors: 180 days • Other (non-proprietary) Electronic Hardware: 90 days •...
