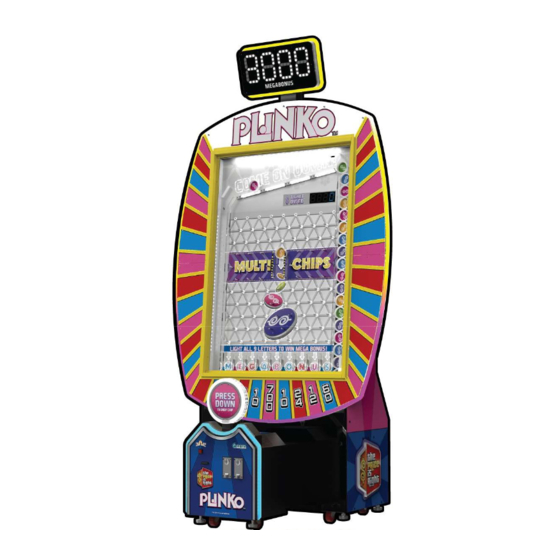

Coastal Amusements Plinko Operating Manual
  1. Manuals
  2. Brands
  3. Coastal Amusements Manuals
  4. Arcade Game Machines
  5. Plinko
  6. Operating manual

Coastal Amusements Plinko Operating Manual

Hide thumbs Also See for Plinko:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Plinko and is the answer not in the manual?

Questions and answers

Russ Price
March 27, 2025

There’s a delay when pushing the plunger down and the levers opening to drop the coin. Sometimes you have to push the the plunger down multiple times before it works. I’ve cleaned all the sensors and there’s no error codes.

0
1 comments:
Mr. Anderson
March 27, 2025

A delay in the plunger response and levers opening on a Coastal Amusements Plinko machine could be caused by sensor or motor errors. Specifically, the following error codes may indicate issues:

- Er-1: Chip Out Sensor – if the Play Sensor isn’t detected.
- Er-3: Win Time Sensor – if the Win Sensor isn’t detected after a chip has dropped.
- Er-4: Supply Sensor – if the Chip Supply Sensor isn’t detected.
- Er-5: Door Motor Sensor – error on Door Motor.
- Er-6: E/V Motor Sensor – error on Chip Supplying E/V motor.
- Er-7: Multi Chip Sensor – error on Multi Chip Sensor or solenoid.

These errors could interfere with the proper timing and function of the plunger and levers.

This answer is automatically generated

0
Tizoc Rodriguez
July 8, 2025

When I work at my arcade, Plinko errors out at most 3-4 times. It throws an Er-03, but turning the power off and on does the job until it errors out.

0
