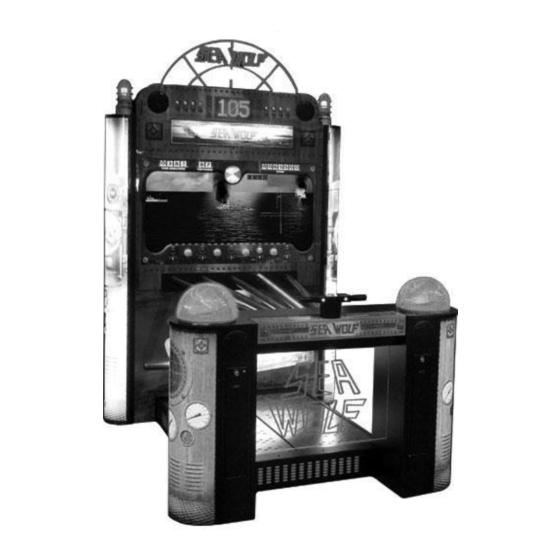

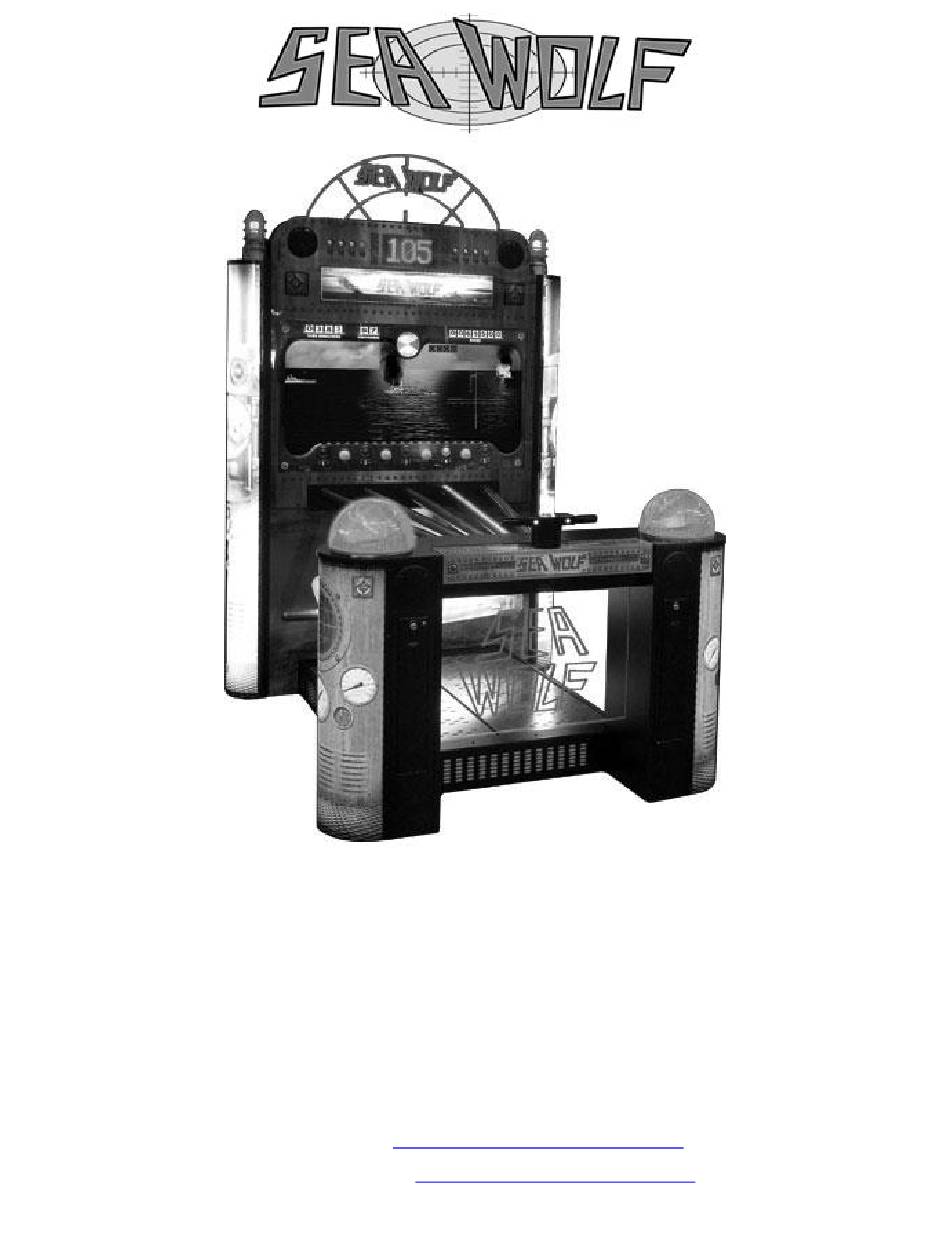

- Page 1 A VIDEO REDEMPTION/AMUSEMENT GAME (Revision: 11-12-12) COASTAL AMUSEMENTS, INC. 1950 SWARTHMORE AVE LAKEWOOD, NJ 08701 (USA) TEL: 01-732-905-6662 FAX: 01-732-905-6815 E-MAIL: sales@coastalamusements.com WEB SITE: www.coastalamusements.com...
- Page 2 TABLE OF CONTENTS SAFETY & PRECAUTIONS .................. 4 ELECTRICAL CONNECTION ................4 GAME LOCATION ....................4 GAME DESCRIPTION ................... 5 REDEMPTION ......................5 LINK SYSTEM ......................5 OPTIONAL FEATURES ..................5 SETTINGS AND ACCOUNTING ................5 MAIN MENU OPTIONS ..................6 VOLUME .........................
-
Page 3: Table Of Contents
TICKET MENU ..................... 8 TICKET DISPENSE ....................8 FLAT TICKET PAYOUT ..................8 POINTS PER TICKET..................... 8 MINIMUM (MERCY) TICKETS ................8 MAXIMUM TICKETS .................... 8 DISPENSE DURING PLAY ................... 8 AUDITS ........................9 GAME SETTINGS ..................... 10 GAME TIME ......................10 MAX. -
Page 4: Safety & Precautions
GAME LOCATION When you first receive your Sea Wolf, carefully remove all packaging material and place the unit on a flat and level floor. It should be handled carefully during installation and when changing it’s location to avoid damage to equipment and possible personal injury. -
Page 5: Game Description
Different point values are awarded depending on the type and size of the ship, as well as its position in the water. In addition to the normal game play, Sea Wolf is equipped with a dot-matrix display that can be used as a progressive bonus. -
Page 6: Main Menu Options
MAIN MENU OPTIONS VOLUME Sets the volume level for the game. Range from 0 to 100. PRICING Adjust coin options and free play. TICKETS Adjust ticket pay out (including progressive bonus tickets). AUDITS Records coins in, tickets out, bonus jackpot pay out, as well as other information GAME SETTINGS Adjust game time, number of torpedoes, and game difficulty BONUS SETTINGS... -
Page 7: Pricing Menu
PRICING MENU FREE PLAY Turn free play on or off. Default Value: OFF (Options: ON / OFF) CREDITS TO START Numbers of credits needed to start game. Default Value: 1 (Options: 1-10) COIN CHUTE 1 CREDITS Numbers of credits given for coin deposited in coin mechanism 1. Default Value: 1 (Options: OFF, 1-10) COIN CHUTE 2 CREDITS... -
Page 8: Ticket Menu
TICKET MENU TICKET DISPENSE Controls the options of “Ticket Redemption” and “Amusement Only”. If set to “OFF”, Sea Wolf will play as an amusement only video game (no tickets), allowing the player to enter initials in a “Hi-Score” screen. The game will also display a “Continue Feature”... -
Page 9: Audits
AUDITS (Sample Screen) CURRENT LIFETIME COIN CHUTE 1 COIN CHUTE 2 COIN CHUTE 3 (DBV) TOTAL COINS FREE PLAY STARTS GAMES PLAYED TICKETS DISPENSED 3210 TICKETS ATTENDANT PAID TICKETS WON (INC. BONUS) 3210 AVERAGE TICKETS TICKET PAY OUT VALUE AVERAGE SCORE 32745 28683 BONUSES WON... -
Page 10: Game Settings
GAME SETTINGS GAME TIME Length of time for game play (seconds). Default Value: 30 seconds (Options: 30-120 seconds) MAX. TORPEDOES The maximum number of torpedoes allowed per game play. Default Value: 20 (Options: 5-50) DIFFICULTY Sets the difficulty level of the game. Default Value: Easy (Options: Easy, Med./Easy, Med., Med./Hard, Hard) ATTRACT SOUND... -
Page 11: Bonus Settings
BONUS SETTINGS ALLOW BONUS If set to “ON”, sign will display a point value (see settings below). If set to “Off”, display will read “FIRE”, and the “Bonus Ship” will pay a flat ticket value as set in “Bonus Ship Value”, explained above. -
Page 12: Bonus Attendant Pay
(Options: OFF, MASTER, 2-10) This feature allows the linking of multiple Sea Wolf games in your location, to create even more excitement by rapidly building the Progressive Bonus value. You may link two (2) games directly with a crossover cable, or link up to 10 games using Ethernet cabling and a network switch. -
Page 13: Diagnostics
DIAGNOSTICS SWITCHES Use this option to test the fire buttons, reset switches, and coin switches. VIDEO Use these screens to adjust monitor color and position if necessary. AUDIO Use these options to test speaker setup. TICKETS Left FIRE button will dispense ticket. Right FIRE button will increment meter. I/O BOARD This screen shows the I/O board firmware revision number, and any communication errors. - Page 14 2) Check 3.5 mm cable from motherboard to the amplifier. 3) Check speaker connections. Voltage spike or surge Game will not power up. See instructions for: “SEA WOLF MAIN POWER ON PROCEDURES”. Ticket Error 1) Check 12 VDC to ticket dispenser 2) Check I/O board connections...
- Page 15 Executive Vice President RoHS CERTIFICATION Coastal Amusements, Inc. certifies that no components used in the manufacture or assembly of the above captioned product contains any material restricted by “Directive 2002/95/EC of the European Parliament and of the Council of January 27, 2003 on the Restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment”...
- Page 17 SEA WOLF MAIN BOARD POWER ON PROCEDURES Occasionally during shipment or other movement of the game, power to the motherboard may be interrupted, causing the “Bios” to become corrupted. Re-starting the motherboard is a simple task, as outlined below. This procedure is required only when power to the motherboard has been interrupted, or the power supply is inoperative.
