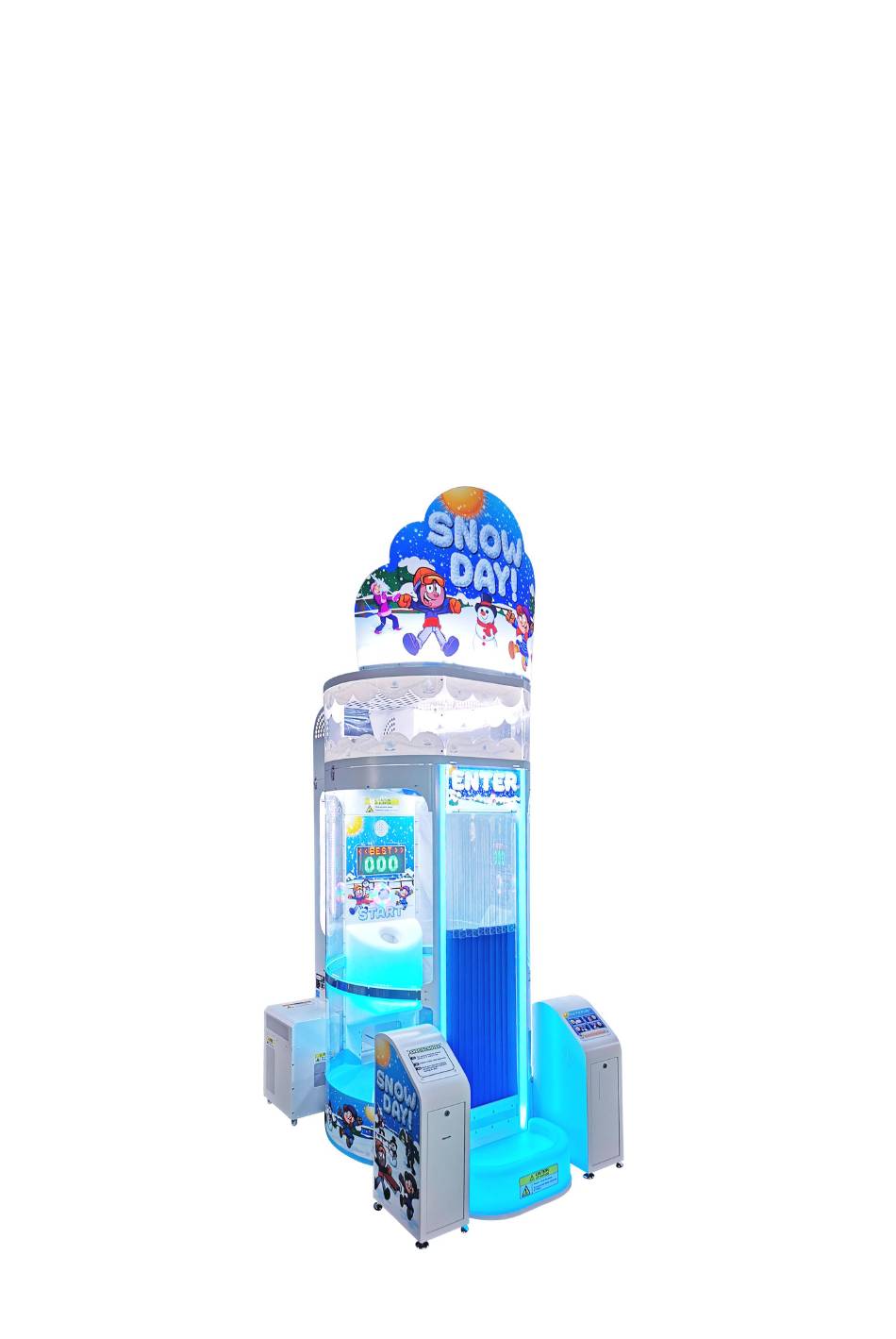

- Page 1 SNOW DAY Operator Manual V1.2...
-
Page 2: Table Of Contents
SNOW DAY -US Operator Manual V1.2 Contents 1. Machine instructions..............2 2. Machine setting & Test instructions..........11 3. Fault & Resolution...............18 4. Machine maintenance..............21 5. Wiring schematic................. 23... -
Page 3: Machine Instructions
SNOW DAY -US Operator Manual V1.2 1. Machine instructions 1.1.Specification and Parameter 1.Voltage： AC110V 50/60Hz 2.Dimension： W1100×D1620×H2985mm（Assembly） 3.Weight： About 210 Kg 4.Power： 795W 1.2.Considerations 1.Suitable for indoor environment 2.Please do not placed in the tilted position, so as to avoid accidents 3.Please do not use it in the following places：... - Page 4 SNOW DAY -US Operator Manual V1.2 1.3.Installation notes Packaging List 1.3.1. Description Code Unit Main cabinet Coin cabinet Ticket cabinet Step assembly Power cabinet The top signboard Balls Cross head screw M4x8 Cross head screw M5x12 Socket hexagon head screw...
- Page 5 SNOW DAY -US Operator Manual V1.2 The top signboard Balls Keys Screws M5x12/11PCS Manual Screws M5x10 /4PCS Screws M4x8 /6PCS Power cord Inside the Accessories Box Install the power cabinet to the Main cabinet as below. 1.3.3. 1. Connect the connection between the blower assembly and the Main cabinet.
- Page 6 SNOW DAY -US Operator Manual V1.2 2. Mount the power cabinet on the side of the Main cabinet, and lock the two buckles. 3. Double lock this buckle by screw or lock for safety. Move the Main cabinet to a suitable position, then unscrew the 6 feet of 1.3.4.
- Page 7 SNOW DAY -US Operator Manual V1.2 Install the Step assembly, Ticket cabinet and Coin cabinet to the Main 1.3.5. cabinet by bolts. Tighten the screws M5x12; 5pcs Tighten the screws Tighten the screws M5x12; 3pcs M5x12; 3pcs Take out two Harness of Ticket...
- Page 8 SNOW DAY -US Operator Manual V1.2 Tighten the screws M5x10; 4pcs Install the top signboard with main cabinet by bolts. 1.3.6. Tighten the screws M4x8; 6pcs...
- Page 9 SNOW DAY -US Operator Manual V1.2 1.4.How to play Game construction: Signboard ball storehouse Ball release port Elastic curtain screen Start button The ball goal Entrance Ball recycling entrance Coin selector Ticket dispenser Ball pipe Power inlet Maintenance door /Main power switch...
- Page 10 SNOW DAY -US Operator Manual V1.2 How to play the game: 1. Insert the coins, the machine will be ready soon. 2. Open the curtain and enter game house carefully. 3. When display screen show “DOWN ARROW”, Press “START BUTTON” to start the game.
- Page 11 SNOW DAY -US Operator Manual V1.2 1.6.Game considerations 1. This game is only suitable for children standing at 80-130cm. 2. Children need to be accompanied by adults to play games. 3. Don't let the child get into the back of the recycling ball. Don't put your hand into the goal.
-
Page 12: Machine Setting & Test Instructions
SNOW DAY -US Operator Manual V1.2 2. Machine setting & Test instructions 2.1.DIP switch setting The DIP switches on the machine board : SW1： Drop time Game time Item Coins (The time of the ball (Total game time) felling.) Free... - Page 13 SNOW DAY -US Operator Manual V1.2 SW2： Item Item Score Fixed Ticket No Ticket 1 Score/ball (Regular ticket) 2 Score/ball 1 Ticket/Game 3 Score/ball 2 Tickets/Game 4 Score/ball 3 Tickets/Game 5 Score/ball 4 Tickets/Game 6 Score/ball 5 Tickets/Game 7 Score/ball...
- Page 14 SNOW DAY -US Operator Manual V1.2 SW3： Item Regular ticket Save Standby Clean ball No Ticket 1 Score/Ticket 2 Score/Ticket 3 Score/Ticket 5 Score/Ticket 10 Score/Ticket 20 Score/Ticket 30 Score/Ticket Not save coin and ticket Save coin and ticket No demo...
- Page 15 SNOW DAY -US Operator Manual V1.2 2.2.Test instructions Setting Panel Description Up(test)：Click to enter the test mode when standby, Turn up in the test mode. Down(service)：Click to free game once when standby, Turn down in the test mode. Enter：Click to select or determine.
- Page 16 SNOW DAY -US Operator Manual V1.2 Blower test 2.2.3. > Press "TEST",and press“DOWN”to enter the blower test, as the picture shown in the right. > Press "Enter"button, the screen <OFF> turns <ON>, the blower starts to work, Press "Enter" again, the blower stops.
- Page 17 SNOW DAY -US Operator Manual V1.2 Ticket Counter Test 2.2.8. > Press "TEST",and press“DOWN”to enter the Ticket Counter test, as the picture shown in the right. > Press the "Enter" key, the screen will shows "TCNT:on" 0.5 second,And the Ticket Counter count 1.
- Page 18 SNOW DAY -US Operator Manual V1.2 2.2.13. DIP Switch Test > Press "TEST",and press“DOWN”to enter the DIP Switch test, as the picture shown in the right. > Each letter represents an input signal, by manually touching a signal's switch or sensor, to observe whether the corresponding letter on the screen changes, you can check whether the switch work is normal.
-
Page 19: Fault & Resolution
SNOW DAY -US Operator Manual V1.2 3. Fault & Resolution 3.1.Fault code description and fault handling ERROR ERROR FAULT ANALYSIS AND TREATMENT CODE DESCRIPTION The Program version has been changed. Error 1 Program updated Reboot to remove the alarm. Save data error. - Page 20 SNOW DAY -US Operator Manual V1.2 1、Check if there is any foreign matter stuck in the ball pipe and remove it. Ball chute / ball 2、 Empty the ball pipe ,enter the “browse all inputs” test,check whether there are Error 10 pipe jam green items in L、M、N, and change the corresponding sensor if there are.
- Page 21 SNOW DAY -US Operator Manual V1.2 Top door components： 3.3.2. Transmission Belt Transmission pulley Coupling Top door Motor Rotary Door Bracket "Closed" sensor Sheet metal for sensor "Opened" sensor (on Rotary Door) Rotary Door LED Light Bottom door Components： 3.3.3.
- Page 22 SNOW DAY -US Operator Manual V1.2 Power components: 3.3.4. Main power Supply Screen power Supply Blower Relay Power inlet Socket Fuse Power switch Power supply assembly Blower...
-
Page 23: Machine Maintenance
SNOW DAY -US Operator Manual V1.2 4. Machine maintenance Even if the machine works properly, in order to allow the machine to operate at its best, and for a longer period of time, check and maintain the following daily: 1、Check if the foot seat is normal to support the machine. -
Page 24: Wiring Schematic
SNOW DAY -US Operator Manual V1.2 5. Wiring schematic... - Page 25 SNOW DAY -US Operator Manual V1.2...
