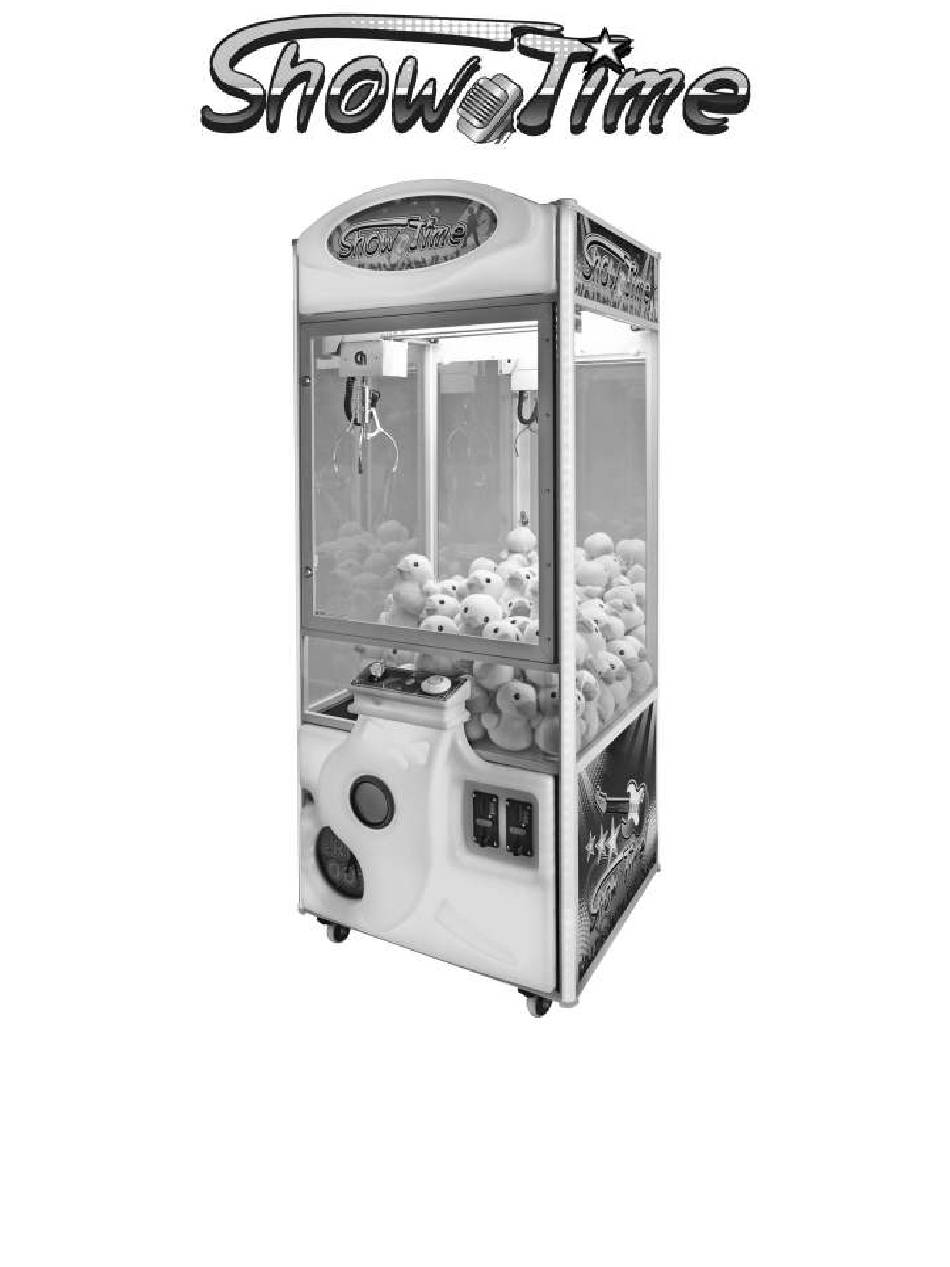

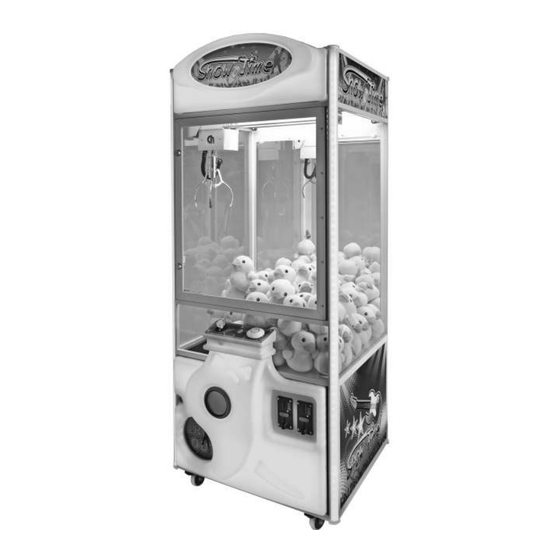

- Page 1 Coastal Amusements Inc. 1950 Swarthmore Ave. Lakewood, NJ 08701 Tel: (732) 905-6662 Fax: (732) 905-6815 http://www.coastalamusements.com...
-
Page 2: Table Of Contents
CONTENT OPERATION ............................3 How to Play ........................3 Game Rules ........................3 DEMO ..........................3 Coin In ............................3 Shaking Machine ..........................3 DIP SW Setting ........................4 DIP SW1 ..........................4 DIP SW2 ..........................5 Ability to change the Inner-Values ..................5 MAINTENANCE .......................... -
Page 3: Operation
OPERATION How to Play 1. Insert coins/tokens into coin slot, the display will show credits and the crane starts game music. 2. Use the joystick to move claw above your selected object. When you move the joystick, the game time counts down, and【DESCEND】button light is flashing. 3. -
Page 4: Dip Sw Setting
DIP SW Setting DIP SW1 VR1 Adj. of Power When the DIP SW2 PIN #6 is setup on "Play till you win", the claw strength voltage +48V Claws lower down Position where claws then release object open at the exit Claws release object at the top position Coin 1 &... -
Page 5: Dip Sw2
DIP SW2 8 : 1 Coin1 setup 6 : 1 (Number of coins 4 : 1 per play) 2 : 1 OFF OFF 4 : 1 Coin2 setup 3 : 1 (Bill Acceptor 2 : 1 pulses per play) 1 : 1 OFF OFF Free Play Play till you win... -
Page 6: Maintenance
MAINTENANCE TEST System Test: COIN1 NC +COIN2 NC+POWER ON (or Service NC+POWER ON) Enter the system Test, DISPLAY shows 0~3, then press button to confirm. 0 EXIT 1 Claw Setting (COIN1 NC +POWER ON can also test Claw Setting) 2 Gantry Test (COIN2 NC +POWER ON can also test Gantry) 3 System Test F0 EXIT F 1 DISPLAY and Light Test... -
Page 7: Bonus Play Table
Bonus Play Table CREDIT PLAYS... - Page 8 Internal setting： ： ： ： TIEM Description Instruction COIN1 – quantity of pay-out tickets after inserting coins (coin selector 1) COIN2 – quantity of pay-out tickets after inserting coins (coin selector 2) COIN1 – quantity of Inserted coins (coin selector 1) COIN1 –...
-
Page 9: Error Code
ERROR CODE Error Code Description Appearance Trouble shooting When switch on 1. Change U1 CPU Er 00 CPU Error the machine 2. PCB is out of service. Check if the up-stop SW is loose 1. When switch on Error while Check if up-stop SW is out of work the machine Er 01... -
Page 10: Trouble Shooting
TROUBLE SHOOTING Items Description Check and Maintenance Coin No credit after coin in 1. Check if the Coins vs. Plays is correct. 2. If Coins vs. Plays can’t be adjusted, it’s possible main board problem. Please send the main board back for repair. Coins/tokens cannot Comparative Coin Mech: be inserted into coin... - Page 11 Does not move to left 1. Check if the left/right motor fuse (LR) at the fuse board is and/or right by burned? joystick operation 2. Check if left and/or right SW is out of function or if their wires are properly connected. 3.
-
Page 12: Wiring Diagram
WIRING DIAGRAM MAIN BOARD W150104 Main board CONNECTOR position... - Page 13 W150104 3.96mm (JP1) POWER SUPPLY +12V +12V +24V +24V +48V W150104 2.54mm (J11) W9833 JP3 EN04 EN05 W150104 2.54mm (J5) VR23 VR13 VR11 VR12 VR21 VR22 Voltmeter + Voltmeter - W150104 2.54mm (J14) W040316 JP1 W150104 2.54mm (J6) Speaker VR 1 W150104 2.54mm (J10) PRIZE SENSOR SINGAL...
- Page 14 COIN1 Meter Prize Meter COIN2 Meter W150104 2.54mm (J1) Joystick -- Front SW(N.O.) Joystick -- Back SW (N.O.) Joystick -- Right SW (N.O.) Joystick -- Left SW (N.O.) Descend SW (N.O.) Descend button lamp lamp 2 W150104 2.54mm (J2) W991907 JP1 W150104 2.54mm (J8) TILT SW (N.O.) DOOR TEST...
-
Page 15: Display W991907
Coin Inhibit input + Coin Inhibit input - W150104 2.54mm (J4) Forward/Back Motor + Forward/Back Motor - Left/Right Motor - Left/Right Motor + Up Down Motor - Up Down + Claw Power+ Claw Power - STOP FORWARD/BACK Stop-Left / Right SW (N.O.) Stop-UP SW (N.C.) Stop-Down SW (N.O.) - Page 16 RGB Control Board CONNECTOR color +12V NO 1 Black GND NO 2 NO 3 color NO 4 color Reseverd color color Black G Black Brown R Brown Orange GND Orange GND color color Black G Black Brown R Brown Orange GND Orange GND...
- Page 17 SECTION 4. W141243WIRING DIAGRAM CONNECTOR color color Brown R Brown Black G Black Orange GND Orange GND...
- Page 18 SECTION 5. W141242 WIRING DIAGRAM CONNECTOR color color Brown R Brown Black G Black Orange GND Orange GND color color SP + Brown R SP - Black G Orange GND...
- Page 19 SECTION 6. W141241 WIRING DIAGRAM CONNECTOR color color Brown R Brown Black G Black Orange GND Orange GND color color Brown R Brown Black G Black Orange GND Orange GND...
