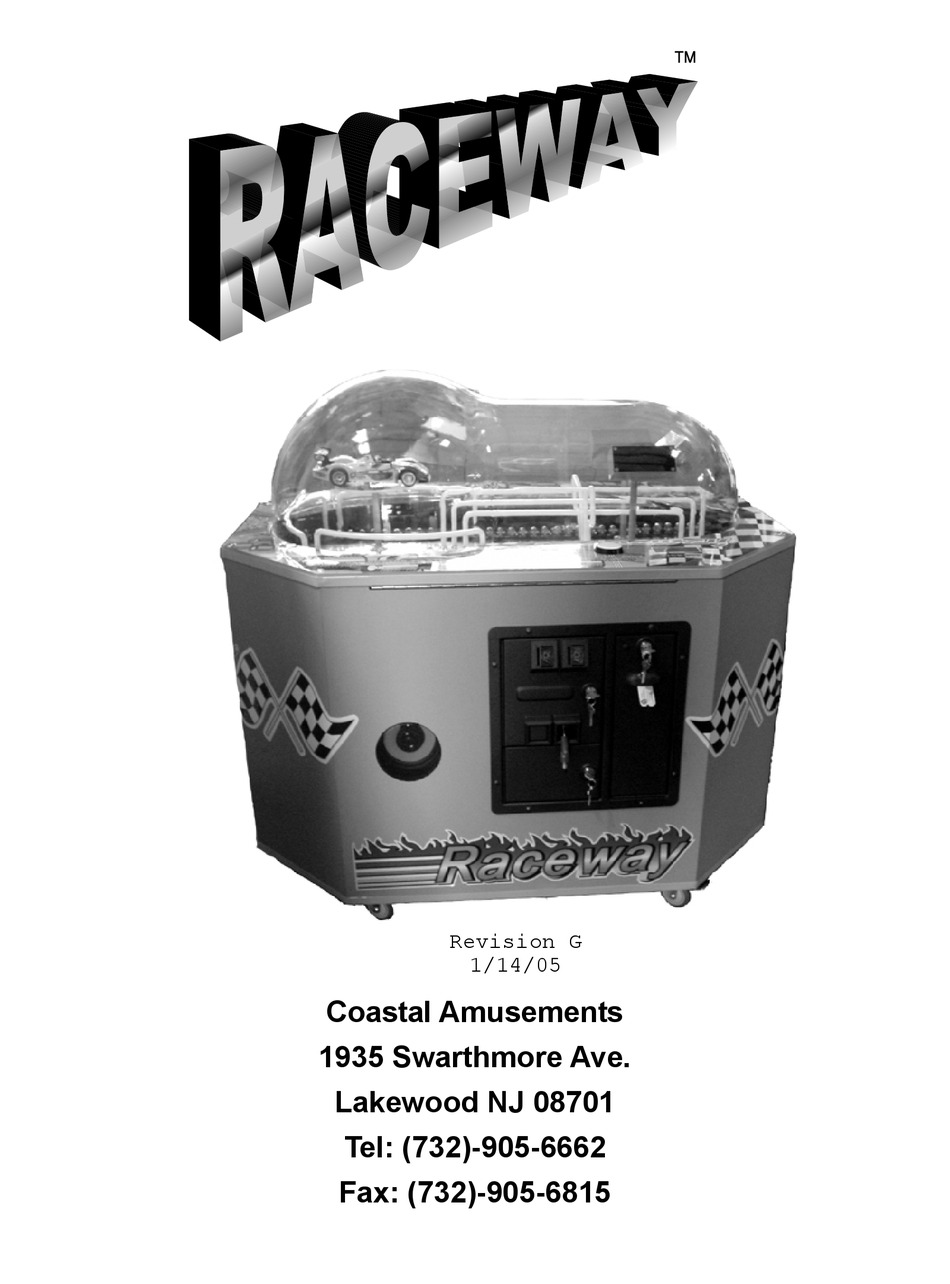

- Page 1 Revision G 1/14/05 Coastal Amusements 1935 Swarthmore Ave. Lakewood NJ 08701 Tel: (732)-905-6662 Fax: (732)-905-6815...
-
Page 2: Table Of Contents
Table of Contents Introduction Game Setup Game Play Maintenance Glossary of Terms DIP Switch Settings Ticket Payout Tables Diagrams Test Mode Troubleshooting... -
Page 3: Introduction
INTRODUCTION Raceway is a fun, simple, and low maintenance game. The simplicity of play and lack of mechanical moving parts allows many hours of carefree operation. Game play is simple, the player inserts the required number of coins or tokens and game play proceeds automatically. -
Page 4: Glossary Of Terms
GLOSSARY OF TERMS DIP SWITCH 1 COINS PER GAME – Allows you to select the number of coins from one credit per game up to four credits per game. HOLD JACKPOT – Lets you to decide whether to allow jackpot values to be kept at power off or to reset each time the game is powered up JACKPOT SELECT –... - Page 5 DIP SWITCH 3 JACKPOT INCREASE RATE – Select from eight different levels of jackpot increase including no accumulation. TICKET LIMIT – You can choose from three different levels at which the machine allows an attendant to record the jackpot and push a switch located below the ticket dispenser to clear the jackpot, or you can allow the machine to directly payout tickets.
-
Page 6: Dip Switch Settings
DIP SWITCH SETTINGS * After changing DIP switch settings, the machine must be turned off and then back on for the new settings to take effect. * Software: 810-R2E DIP SW 1 Credits per Game Keeps Hold Jackpot Jackpot after power off Skill 10 ~ 50... - Page 7 DIP SW2 RESERVED Slow (0.05S) LIGHT Moderate RACING (0.04S) SPEED Fast (0.03S) Random Easy (20%) JACKPOT Moderate INDICATES % OF LIGHT RACING SPEED (15%) DIFFICULTY Difficult (Normal Mode Only) (10%) Random Factory Default Settings OFF OFF OFF ON OFF ON DIP SW3 NONE JACKPOT...
- Page 8 DIP SW4 30 SEC GAME TIME 10 SEC ATTRACT MODE RESERVED TABLE 8 TABLE 7 TABLE 6 PAYOUT TABLE 5 TABLE TABLE 4 TABLE 3 TABLE 2 TABLE 1 Factory Default settings OFF OFF OFF OFF...
-
Page 9: Ticket Payout Tables
TICKET PAYOUT TABLES Ticket Payout Ticket Payout Ticket Payout Table #1 Table #2 Table #3 Lamp # Tickets Lamp # Tickets Lamp # Tickets... - Page 10 Ticket Payout Ticket Payout Ticket Payout Table #4 Table #5 Table #6 Lamp # Tickets Lamp # Tickets Lamp # Tickets...
- Page 11 Ticket Payout Ticket Payout Table #7 Table #8 Lamp # Tickets Lamp # Tickets...
-
Page 12: Diagrams
Main Board W030724 connector layout JP10 JP14 JP22 JP20 JP16 JP13 JP25 U2 ROM U7 VOC1 U24 VOC2 JP19 JP15 JP23 JP18 JP11 JP21 JP12 JP24 JP17... - Page 13 Color CONNECTIONS JP10 Color CONNECTIONS 14PIN connector To 1P TICKET display 14PIN connector To 2P TICKET display JP23 Color CONNECTIONS JP22 Color CONNECTIONS +12V +12V 1P Ticket 2P Ticket White Ticket IN White Ticket IN dispenser dispenser Blue Ticket OUT Blue Ticket OUT black...
- Page 14 JP13 Color CONNECTIONS JP14 Color CONNECTIONS Red/white +12V Red/white +12V Green/white COIN A meter Green/white COIN A meter Grey/black COIN B meter Grey/black COIN B meter pink/blue Ticket meter pink/blue Ticket meter JP17 Color CONNECTIONS JP18 Color CONNECTIONS RESERVED RESERVED JP12 Color CONNECTIONS...
- Page 15 AMP board wiring diagram AC IN: transformer 24V AC IN: transformer 24V Red Red Red Red G … …1P&2P speaker- black L-OUT 1Pspeaker orange L-IN … …1P volumeVR PIN2 white G … … main board JP12 PIN3 black R-IN … …2P volume VR PIN2 red R-OUT 2P speaker brown Lamp board W030726 wiring diagram...
- Page 16 Color CONNECTIONS Color CONNECTIONS Blue AC IN transformer 18V 3A 20PIN To JP4 blue AC IN transformer 18V 3A Color CONNECTIONS Color CONNECTIONS Black LCM1 Brown/white LCM5 Brown Red/white Orange/white Orange Yellow/green Yellow Green/white To Lamp Board 1P To Lamp Board 2P Green Blue/white No.1~18...
- Page 17 JP11 Color CONNECTIONS Color CONNECTIONS Black +12V Black A neon light Brown Black A neon light Orange Color CONNECTIONS Yellow Brown B neon light Green Brown B neon light Blue Purple Color CONNECTIONS Grey C neon light To main board JP5 White C neon light Brown/white...
-
Page 18: Test Mode
Neon lights position sketch G neon light C neon light D neon light B neon light F neon light H neon light E neon light A neon light Test Mode Press the left button. You will enter test phase #1. The following will occur: TEST 1. -
Page 19: Troubleshooting
Non-operative lights “individual” – replace any bulbs that fail to light on the “raceway”. Caution must be used when working on the neon tube lighting as it is powered with HIGH VOLTAGE please allow only fully qualified personnel to work on the unit to avoid unnecessary damage or injury.
