Summary of Contents for Coastal Amusements BLACK HOLE

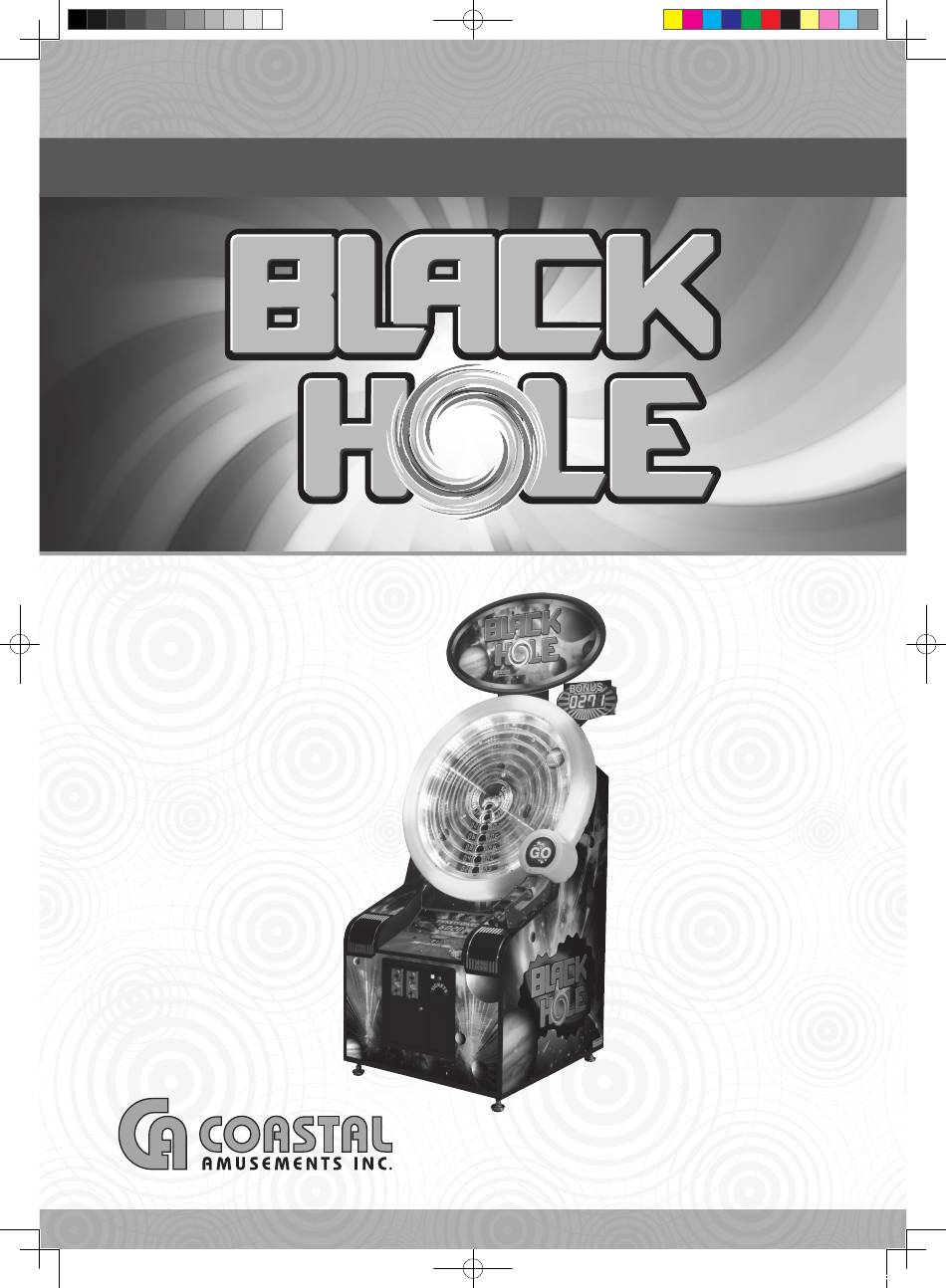

- Page 1 Operator Manual Coastal Amusements, Inc. 1950 Swarthmore Ave. Lakewood, NJ 08701 +1 (732) 905-6662 sales@coastalamusements.com http://www.coastalamusements.com Black Hole_Manul.indd 1 2014-12-23 오전 11:45:48...
-
Page 2: For Safety
BLACK HOLE FOR SAFETY ￭ Setting up Be sure to consult an industry specialist when setting up, moving or transporting this product ￭ This product should not be set up, moved or transported by anyone other than an industry specialist. - Page 3 BLACK HOLE Do not exert excessive force when moving the machine. For proper ventilation, keep the game machine 100mm (4") away from the walls. Do not alter the system related dip switch settings. ￭ Operation If there is any abnormality such as smoke or abnormal noise being emitted from the machine, immediately turn OFF the main power switch and unplug the power cord from the receptacle.
- Page 4 BLACK HOLE To clean the game machine, wipe with a soft cloth dampened with a neutral non-abrasive detergent. ￭ Using thinner of other organic solvent or alcohol may damage the material. ￭ Electrical shock or equipment failure could be caused by water entering the inside of the machine.
-
Page 5: Table Of Contents
BLACK HOLE CONTENTS FOR SAFETY COMPONENTS 1. ABOUT GAME 1-1. GAME DESCRIPTION 1-2. DIMENSIONS 1-3. SPECIFICATION 2. NAME OF PARTS 2-1. NAME OF PARTS 2-2. BILLBOARD TITLE ASSEMBLY 3. GAME SETUP & TEST MODE 3-1. CONTROL PANEL 3-2. SETUP MODE 4. -
Page 6: Components
BLACK HOLE COMPONENTS Figure Part Name 6001 KEY 2 EA (COIN BOX) 7001 KEY 2 EA MANUAL 1 EA HEX WRENCH METRIC 2 EA (2.5mm) / (4mm) COIN DOOR 1 EA COVER AC CORD 1 EA... -
Page 7: About Game

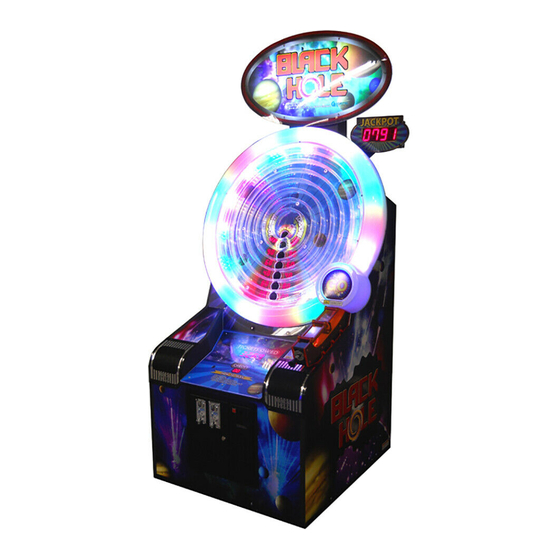

BLACK HOLE 1. ABOUT GAME 1-1. GAME DESCRIPTION Black hole is a true skill based ticket redemption game. The player pulls the plunger and shoots the ball to win the jackpot. 1-2. DIMENSIONS 1-3. SPECIFICATION DIMENSIONS W1066 x D940 x H2346 (mm) -
Page 8: Name Of Parts
BLACK HOLE 2. NAME OF PARTS 2-1. NAME OF PARTS... -
Page 9: Billboard Title Assembly
BLACK HOLE 2-2. BILLBOARD TITLE ASSEMBLY... -
Page 10: Game Setup & Test Mode
BLACK HOLE 3. GAME SETUP & TEST MODE 3-1. CONTROL PANEL ■ CONTROL PANEL SWITCH VOLUME : SOUND VOLUME S/W 1 : GET INTO SETUP MODE SELECT SETUP MODE (NEXT) S/W 2 : SELECT SETUP MODE (PREVIOUS) S/W 3 : INCREASE SETUP VALUE... - Page 11 (1 COIN 1 PLAY ~ 10 COINS 1 PLAY & 1 COIN 1~10 PLAYS) Push S/W3 & S/W4 for list BK 0 SC 0 (BLACK HOLE COUNT / SCORE AMOUNT) JP 0 SC 0 (JACKPOT COUNT / SCORE AMOUNT) H2 0...
- Page 12 BLACK HOLE 15. Score_Setup_6 - HOLE SCORE ‘6’ VALUE (1-99) VALUE= 0002 * Bottom hole value is fixed 16. LED_TEST_MODE - Push S/W3 & S/W4 to test led lighting colors. (1~7) 00000 * Test by switching the LED colors 17. THE_END...
-
Page 13: Error & Trouble Shooting
BLACK HOLE 4. ERROR & TROUBLE SHOOTING ■ ERROR CODES [TICKET OWED FND] - BALL LOADING ERROR - TICKET ERROR 4-1. TROUBLE SHOOTING: ERROR ■ ERROR - 01 First step of trouble shooting Err1: • Motor does not work, follow next step. -
Page 14: Troubleshooting: Ticket Error
BLACK HOLE 4-2. TROUBLE SHOOTING: TICKET ERROR ■ TICKER ERROR – HELP First step of trouble shooting ticket error: If ticket box is empty, load new tickets to ticket dispenser and push ticket button. • • If ticket button does not work, test ticket dispenser & ticket lamp •... -
Page 15: Troubleshooting: Sensor Error
BLACK HOLE 4-3. TROUBLESHOOTING: SENSOR ERROR ■ GAME START OR SCORE CHECK ERROR • Start sound or lighting animation does not work, follow next step. Check connectors & harness. Replace start sensor PCB. Replace main board. • Machine does not check score while game playing, follow next step. -
Page 16: Spring Replacement Instruction
BLACK HOLE 4-4. SPRING REPLACEMENT INSTRUCTION Caution! The spring may pop up to you. 1. Unscrew the 4 bolts with 4mm wrench Must direct the head to ground and release enclosed and separate the plunger Assy’. the knob with pressing housing area. -
Page 17: How To Set Psu Switch
BLACK HOLE 4-5. HOW TO SET PSU SWITCH... -
Page 18: Wiring Diagram
BLACK HOLE 5. WIRING DIAGRAM BLACK HOLE WIRE DIAGRAM Specifica tlons for regions using 110/220 voltage area. 1/2 D72141101B NOISE FILTER CIRCUIT PROTECTOR SUB SWITCH MG620005-1P MG620005-1P MG620005-1P POWER CORD EARTH MG620005-1P "FG" EARTH MG610004-1P 3191-3R 3191-3P POWER BOX EARTH... - Page 19 BLACK HOLE D72141102B BLACK HOLE WIRE DIAGRAM Specifica tlons for regions using 110/220 voltage area. 2/2 FND BOX COIN MACHINE H4P-SHF-AA CODE COLOR CODE COLOR FCON27 FCON28 35155-5P 35155-5P FCON23 FCON24 BLACK BLUE BROWN PURPLE 5557-4P H4P-SHF-AA GRAY ORANGE WHITE...
