1/3" Sony High Density CCD (960H) with 700 TV Lines
•
Minimum Illumination of 0.2 Lux / 0.1 Lux
•
Pinhole 3.7mm / F2.0 Lens Included
•
NC/N/NO Alarm Output
•
Working 100' Motion Detection Using 58 Beams Within 3
layers (35' x 35' Coverage Area)

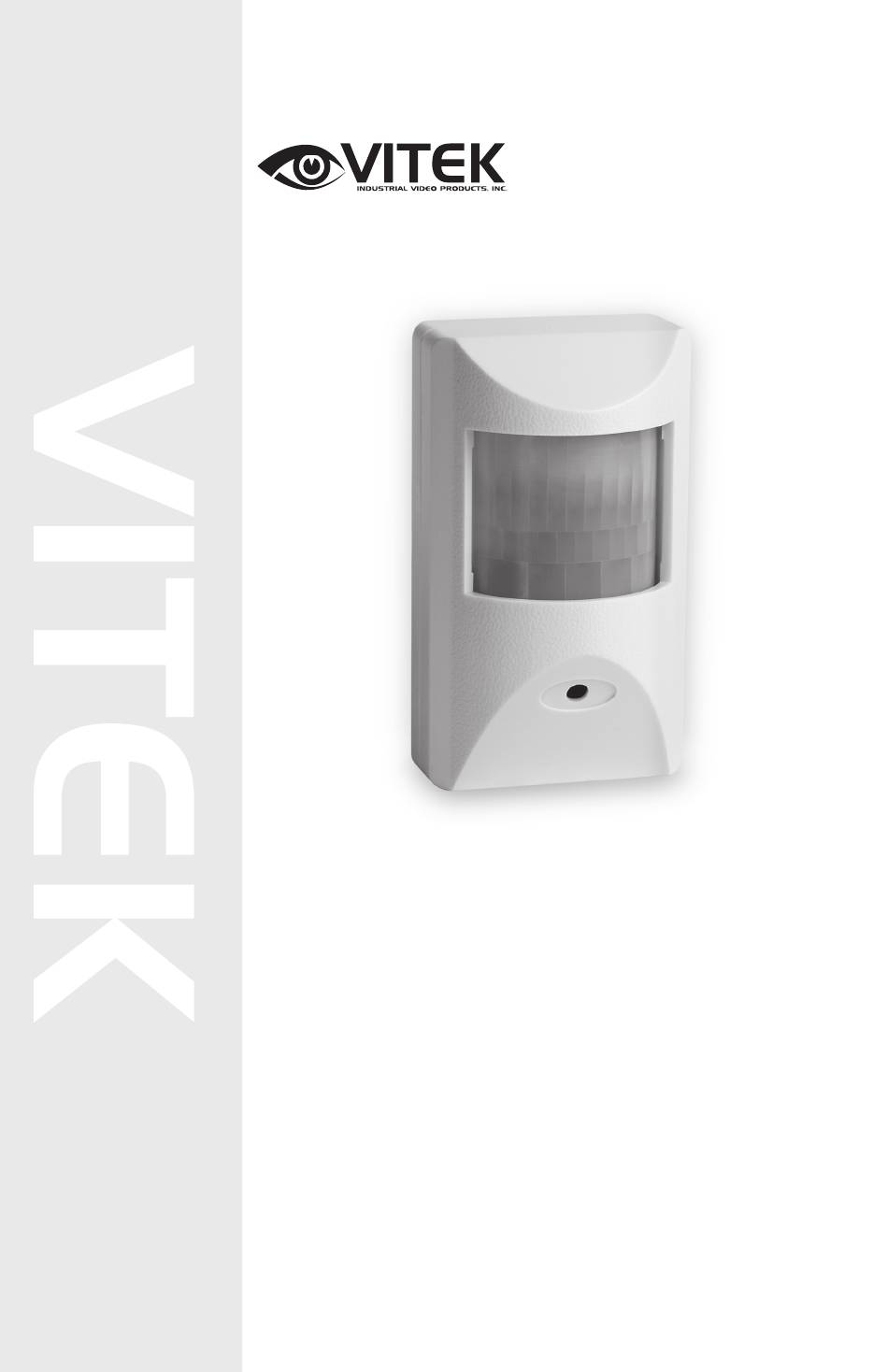

VT-PIRC2/H
Color PIR Cameras
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-PIRC2/H
Summary of Contents for Vitek VT-PIRC2/H
- Page 1 VT-PIRC2/H Color PIR Cameras • 1/3” Sony High Density CCD (960H) with 700 TV Lines • Minimum Illumination of 0.2 Lux / 0.1 Lux • Pinhole 3.7mm / F2.0 Lens Included • NC/N/NO Alarm Output • Working 100’ Motion Detection Using 58 Beams Within 3...
- Page 2 PIR BOARD LAYOUT 1. LED: When an intrusion is detected, the LED will activate. 2. JP1: Pulse count setting. 1-2 short: Relay will activate when an intrusion is detected once. (For stable environments or high risk operating environments) 2-3 short: Relay will activate when an intrusion is detected twice within 15 seconds. (For harsh environments) 3.
- Page 3 SPECIFICATIONS VT-PIRC2/H 1/3” Sony High Density CCD (960H) Image Device 1020 x 508 Effective Pixels 700 TV Lines Resolution 0.1 Lux Minimum Illumination S/N Ratio More Than 48dB 1/60 to 1/100,000 sec. Electronic Shutter >18Db Internal Sync. Sync. Mode 2:1 Interlace Scanning System 0.45...
- Page 4 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
