Summary of Contents for Fluidwell F093

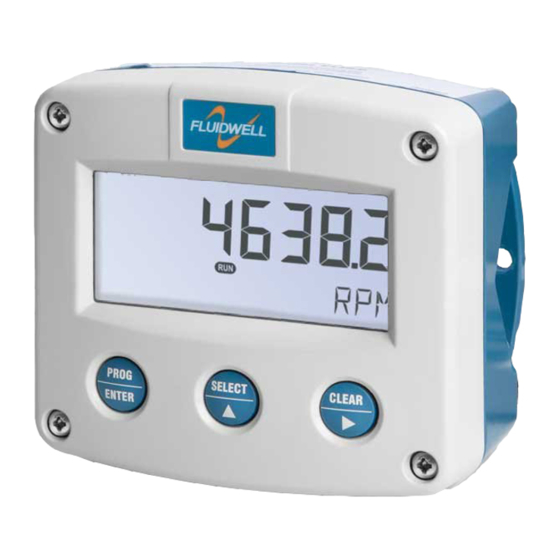

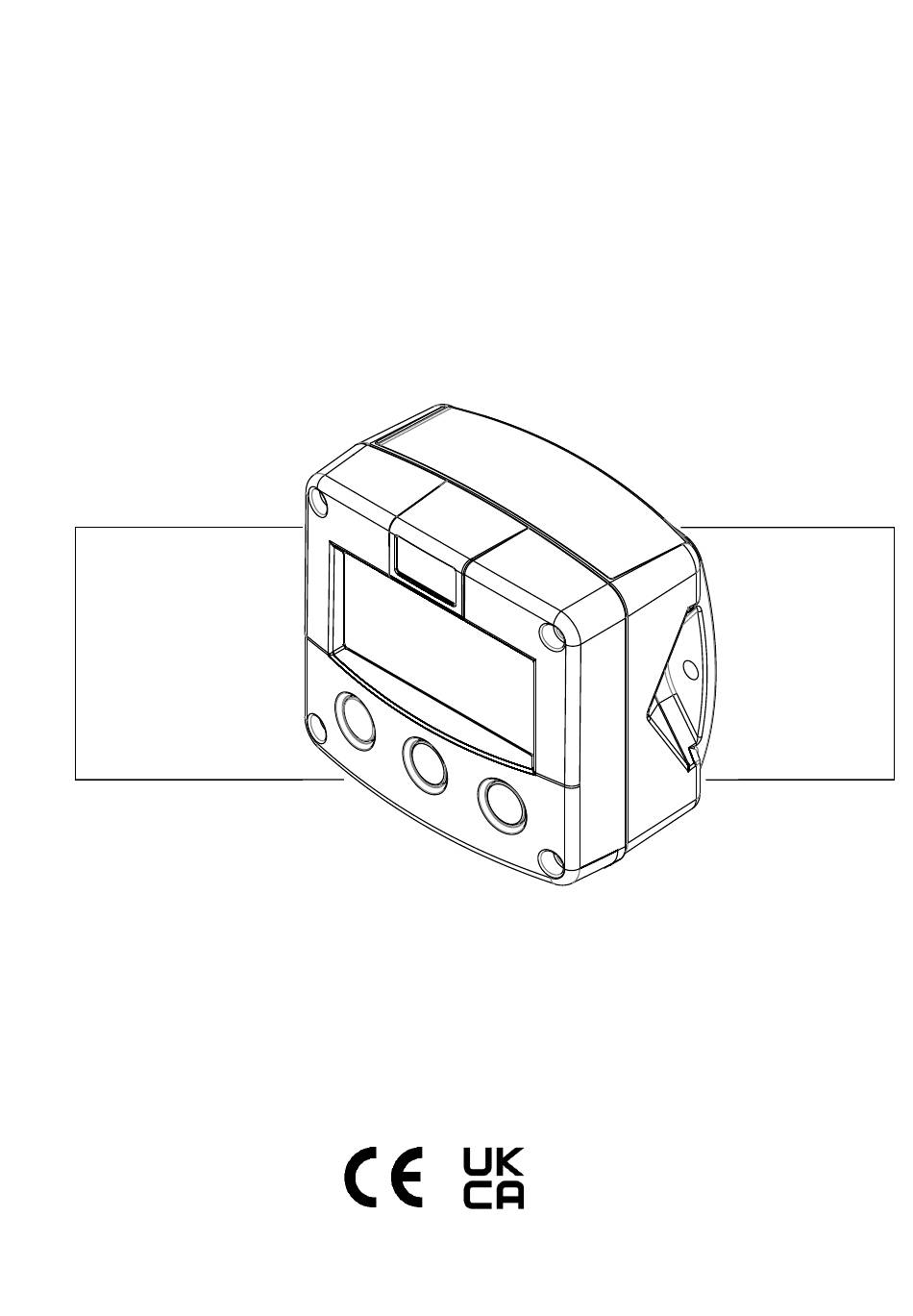

- Page 1 TACHOMETER MONITOR ENGINE SPEED AND RUNNING HOURS WITH ALARM OUTPUT Signal input tachometer: pulse, Namur and coil Alarm output: alarm on RPM and running hours Options: Intrinsically Safe F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...
-
Page 2: Safety Instructions
The F093-P must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility). • Connect a proper grounding to the metal enclosure as indicated if the F093-P has an incoming power or signal line which carries a hazardous live voltage. The Protective Earth (PE) wire may never be disconnected or removed. -
Page 3: About The Manual
This operation manual describes the standard F093-P as well as most of the options available. For additional information, please contact your supplier. A hazardous situation may occur if the F093-P is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms: A "warning !"... -
Page 4: Table Of Contents
ABOUT THE MANUAL ........................3 WARRANTY AND TECHNICAL SUPPORT ..................3 CONTENTS MANUAL ......................... 4 INTRODUCTION ........................6 System description of the F093-P .................... 6 OPERATIONAL ........................7 General information ......................... 7 Control panel ..........................7 Operator information and functions ..................7 CONFIGURATION ......................... - Page 5 Tachometer supply ........................ 42 Terminal connectors Intrinsically Safe applications .............. 43 Configuration examples Intrinsically Safe applications ............43 5.4.1 F093-P-(OT)-PC-(PX)-XI-(ZB) Battery powered - Ex ia IIC/IIIC ..........43 5.4.2 F093-P-OT-PX-XI-ZB - Ex ia IIC/IIIC ..................44 5.4.3 F093-P-OT-PX-XI-(ZB) - Ex ia IIC/IIIC .................. 44 MAINTENANCE ........................
-
Page 6: Introduction
Fig. 1: Typical application for the F093-P. Configuration of the F093-P The F093-P has been designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F093-P according to your specific requirements. -
Page 7: Operational
Page 7 2 OPERATIONAL GENERAL INFORMATION This chapter describes the daily use of the F093-P. This instruction is meant for users / operators. • The F093-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed •... - Page 8 • Display engine speed / running hours or engine speed only or running hours only This is the main display information of the F093-P. After selecting any other information, it will always return to this main display automatically. Running hours is displayed on the upper-line of the display and engine speed on the bottom line.
-
Page 9: Fig. 4: Example Of Low-Battery Alarm
The remaining lifetime after the first moment of indication is generally several days up to some weeks. See paragraph 6.3 for further information on battery replacement. Fig. 4: Example of low-battery alarm. • Alarm 01-03 When "alarm" is displayed, please consult Appendix B: problem solving. FW-F093-P-M_v0404_01_EN.docx... -
Page 10: Configuration
Make sure that the unit is not being used for any application when altering the settings. 3.2.1 ENTERING SETUP-LEVEL Configuration of the F093-P is done at SETUP-level, which can be reached at all times while the F093-P remains fully operational. At SETUP-level the display will deactivate the indicator and... -
Page 11: Programming Sequence
The combination of the SELECT-key and CLEAR-key is used to select a negative value. When a value can also be entered as a negative number, pressing the SELECT- key and CLEAR-key simultaneously will toggle the ‘–‘ (minus) sign on and off. FW-F093-P-M_v0404_01_EN.docx... -
Page 12: Returning To Operator-Level
Please keep a record of all settings for later reference. Use the control panel to return to OPERATE-level PROG-key In order to return to the operator level, press the PROG-key for three seconds. When no keys are pressed for 2 minutes, SETUP-level will be left automatically. FW-F093-P-M_v0404_01_EN.docx... -
Page 13: Configuration Settings
Page 13 CONFIGURATION SETTINGS All settings of the F093-P can be set via the control panel. The following paragraphs give a detailed description of each setting. 3.3.1 OVERVIEW FUNCTIONS SETUP LEVEL SETUP FUNCTIONS AND VARIABLES HOURS CLEAR Push Clear – Enter - Cleared... -
Page 14: Explanation Of Setup-Menu 1 - Running Hours
0 - 1 - 2 - 3 - 4 - 5 - 6 Please note that this SETUP - influences the accuracy of the K- factor indirectly. This setting has NO influence on the displayed number of digits for "engine speed" (SETUP 2.1)! FW-F093-P-M_v0404_01_EN.docx... -
Page 15: Explanation Of Setup-Menu 3 - Alarm
REL OUT One transistor or relay output is available to transmit the alarm condition. Assign with this function the type of alarm to be transmitted: low engine speed alarm, high engine speed alarm, both these alarms or total running hours. FW-F093-P-M_v0404_01_EN.docx... -
Page 16: Explanation Of Setup-Menu 4 - Display
BACKLIGHT (optional) If a LED backlight has been supplied, it can be turned on or off. BL ALARM (optional) In case the F093-P generates any alarm, the backlight can be set to change to red. Following selections are available: OFF: during alarm the color is according to setting 4.6. -
Page 17: Explanation Of Setup-Menu 5 - Power Management
3.3.7 EXPLANATION OF SETUP-MENU 6 - SENSOR The F093-P is able to handle several types of input signal. The type of tachometer pickup / signal is selected with SETUP 6.1. Read also paragraph 4.6.1 Terminals 1-3: Tachometer input. SETUP FUNCTIONS AND VARIABLES... -
Page 18: Explanation Of Setup-Menu 7 - Others
This protection is disabled with value 0000 (zero). Up to and including 4 digits can be programmed, for example 1234. TAGNUMBER For identification of the F093-P and communication purposes, a unique tag number of maximum 7 digits can be entered. FW-F093-P-M_v0404_01_EN.docx... -
Page 19: Installation
Operating Manual before carrying out its instructions. • The F093-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 20: Handling The F-Series Enclosure
The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F093-P-XI). For Intrinsically Safe applications: Installation and identification labels are shown in chapter 5. -
Page 21: Fig. 8: Identification - Example Of F0-Series Installation Label (Safe Area - Type Pm Or Pf)
The serial number can be reviewed on the identification label or in SETUP-menu Others. The production date is either shown separately on the label or indicated by the first 4 digits of the serial number representing year and week number (YYWW). FW-F093-P-M_v0404_01_EN.docx... -
Page 22: Opening / Removing The Cover
Plastic enclosure: 1 Nm per screw Aluminum enclosure: 1 Nm per screw Aluminum w. extended back enclosure: 1 Nm per screw Stainless steel enclosure: 2 Nm per screw 5. The F-Series in now ready to be returned to service. FW-F093-P-M_v0404_01_EN.docx... -
Page 23: Mechanical Installation
0.12" 0.12" M20 x 1,5 3x 1/2"NPT 25mm 25mm 15 15 M20 x 1,5 M20 x 1,5 4x M20 x 1,5 29.1 mm (1.15”) 115 mm (4.53”) 31 mm (1.22”) Fig. 9: Dimensions – Aluminum and stainless steel enclosures FW-F093-P-M_v0404_01_EN.docx... -
Page 24: Dimensions - Non-Metallic Enclosures
118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12” 0.12” D=22mm (0.866") 3x D=22mm (0.866”) 29.1 mm (1.15”) 115 mm (4.53”) 31 mm (1.22”) Fig. 10: Dimensions – Non-metallic enclosures FW-F093-P-M_v0404_01_EN.docx... -
Page 25: Mounting
Meter mount by using one of the openings Pipe mount by using the mounting plate in the bottom of the back cover. with the bracket and hose clamps (accessory). Panel mount by using only the front cover Fig. 11: Installation – Mounting configurations FW-F093-P-M_v0404_01_EN.docx... -
Page 26: Electrical Installation
General directions: • The F093-P that came with a power module type PM; 110V-230V AC or type PD/PF with an option OR (the relays can handle 110V-230V AC) shall be connected to the Protective Earth (PE) stud which is installed in the metal back panel. -
Page 27: Field Wiring Connections
Within the United States all field wiring must conform to the National Electric Code, NFPA 70, Article 501-4(b). All field wiring enters the F093-P through the bottom of the enclosure and connects to the circuit assembly inside the enclosure. Wiring is routed through cable glands. Please make sure to order the F093-P with the correct drilling pattern and thread (metal) or hole (plastic) sizes. -
Page 28: Power Supply Wiring
C22.2 No. 61010-1 / UL61010-1 / EN/IEC 61010-1. The F093-P can be powered from an external power supply. An internal power supply is also available in the form of a lithium battery. When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. -
Page 29: Terminal Connectors Safe Area Applications - Type Pb / Px / Pd
4.5: Electrical Installation and review paragraph 4.5.3 and 4.5.4 before applying any field or power supply wiring. For Intrinsically Safe applications: read chapter 5. Following terminal connectors are available on the F093-P when supplied with Type PB / PX / PD: ALARM SENSOR SIGNAL... -
Page 30: Fig. 16: Terminal Connections - Npn Signal Input
Page 30 Pulse-signal NPN / NPN-LP The F093-P is suitable for use with tachometers which have a NPN output signal. For reliable pulse detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass signal noise filter, which limits the maximum input frequency (read chapter 3.3.2). -
Page 31: Terminal 4-5: Power Supply - Type Px (Default) And Pd (Option)
TERMINAL 4-5: POWER SUPPLY - TYPE PX (DEFAULT) AND PD (OPTION) To power the F093-P an internal battery can be used (type PB) and / or an external DC power supply of 8-30V DC (type PX) or 16-30V DC (type PD). -
Page 32: Terminal 7-8: Alarm Output - Type Ot
TERMINAL 9-10: POWER SUPPLY BACKLIGHT - TYPE ZB (OPTION) To power the backlight, a voltage in the range 20-30V DC has to be connected. Maximum current 30mA. Connect the "-" to terminal 9 and the "+" to terminal 10. Fig. 22: Terminal connections - Backlight (ZB). FW-F093-P-M_v0404_01_EN.docx... -
Page 33: Terminal Connectors Safe Area Applications - Type Pf / Pm
Fig. 23: Overview of terminal connectors F093-P – type PF / PM 4.7.1 TERMINAL GND-1-2: POWER SUPPLY To power the F093-P with a power supply option of type PF or type PM, connect a suitable power supply to the terminals as indicated in below table: Power supply... -
Page 34: Terminals 5-7: Tachometer Input
4.7.3 TERMINALS 5-7: TACHOMETER INPUT Three basic types of tachometer signals can be connected to the F093-P: pulse, active pulse or coil. The screen of the signal wire can be connected to the common ground terminal. See paragraph 4.5. The input signal type has to be selected with the correct SETUP-function (read chapter 3.3.2). -
Page 35: Fig. 28: Terminal Connections - Npn Signal Input
Page 35 Pulse-signal NPN / NPN-LP The F093-P is suitable for use with tachometers which have a NPN output signal. For reliable pulse detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass signal noise filter, which limits the maximum input frequency (read chapter 3.3.2). -
Page 36: Fig. 31: Terminal Connections - Reed-Switch Signal Input
Page 36 Reed-switch The F093-P is suitable for use with tachometers which have a reed-switch. To avoid pulse bounce from the reed-switch, it is advised to select REED LP - low-pass filter (read chapter 3.3.2). Fig. 31: Terminal connections - Reed-switch signal input. -
Page 37: Intrinsically Safe Applications
The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F093-P-XI). If Type XI is not indicated your device is not suitable for Intrinsically Safe applications! -
Page 38: Electrical Installation In Hazardous Area
Ga, the indicator shall be installed so, that even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded. FW-F093-P-M_v0404_01_EN.docx... -
Page 39: Electrical Data - Control Drawing
The cable parameters are determined by the parameters of the system into which the F0-Series General Purpose Indicators is connected. Only certified Intrinsically Safe Fluidwell battery type FW-LiBat-0xx may be used and replaced in hazardous area. The entity parameters for F0-Series General Purpose Indicators, model F0xx-P-XI, are as follows: Terminals 1 and 2 –... -
Page 40: Installations Based On Atex Or Iecex Certificate
Ga, the indicator shall be installed so, that even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded. • For EPL Da the ambient temperature Ta shall not exceed 50 °C. FW-F093-P-M_v0404_01_EN.docx... -
Page 41: Electrical Data - Annex 1
(terminals 11 and 12) 30 V 0 mH 100 mA 6.1 nF = 0.75 W From the safety point of view the circuits shall be considered to be connected to earth. FW-F093-P-M_v0404_01_EN.docx... -
Page 42: Power Supply Wiring
5.2.6 POWER SUPPLY WIRING The F093-P can be powered from an extern power supply. An internal power supply is also available in the form of a lithium battery. When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. Note that the optional backlight only works with an external power supply. -
Page 43: Terminal Connectors Intrinsically Safe Applications
Tachometer supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F093-P, the battery will be disabled automatically until the power is disconnected. FW-F093-P-M_v0404_01_EN.docx... -
Page 44: F093-P-Ot-Px-Xi-Zb - Ex Ia Iic/Iiic
Tachometer supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F093-P, the battery will be disabled automatically until the power is disconnected. 5.4.3 F093-P-OT-PX-XI-(ZB) - Ex ia IIC/IIIC Fig. -
Page 45: Maintenance
Operating Manual before carrying out its instructions. • The F093-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 46: Battery Replacement
Safe area applications – Type PB • Before replacing the battery, verify that the new battery is undamaged, in good condition and suitable for use in the unit. (Type: StdLiBAT021 - re-ordering nr. SPB02) Fig. 40: Marking Type PB battery: Safe area StdLiBAT021 (SPB02) FW-F093-P-M_v0404_01_EN.docx... -
Page 47: Replace The Battery
Dispose of batteries in accordance with the (inter)national, the manufacturer’s and the plant owner’s standards and regulations. • Batteries pose an environmental hazard. • Do not dispose of as general waste or incinerate. • Return used batteries to a recycling point. FW-F093-P-M_v0404_01_EN.docx... -
Page 48: Technical Specification
Note for Type PF and PM The total consumption of the tachometer, transistor output type OA and backlight type ZB may not exceed 400mA@24V DC. Note for I.S. applications For Intrinsically safe applications, consult the safety values in the certificate. FW-F093-P-M_v0404_01_EN.docx... - Page 49 One active 24V DC transistor output; max. 400mA per output (requires type PF or PM). Type OR One mechanic relay output; max. switch power 230V AC - 0,5A (requires type PF or PM). Type OT One passive transistor output - not isolated. Load max. 50V DC - 300mA. FW-F093-P-M_v0404_01_EN.docx...
- Page 50 7 digits. Unit According to selection for engine speed/running hours. Decimals According to selection for engine speed/running hours. Type of alarm Low and/or high engine speed alarm and/or running hours alarm. Includes delay time alarm and configurable alarm output. FW-F093-P-M_v0404_01_EN.docx...
-
Page 51: Problem Solving
Page 51 PROBLEM SOLVING In this appendix, several problems are included that can occur when the F093-P is going to be installed or while it is in operation. Tachometer does not generate pulses: Check: • Signal selection SETUP - 6.1, •... -
Page 52: Declaration Of Conformity
Page 52 DECLARATION OF CONFORMITY eghel, February 2 22 We, Fluidwell , declare under our sole responsibility that the F Series indicators are designed and will operate conform the following applicable European Directives and Harmonised Standards, when installed and operated according to the related manuals... -
Page 53: Index Of This Manual
/ running hours measuring unit functional description sensor supply voltage 28, 32 high alarm output SETUP-level intrinsic safety tachometer input Intrinsic safety 38, 43, 45, 47 terminal connectors 29, 33 keys FW-F093-P-M_v0404_01_EN.docx... -
Page 54: List Of Figures
Fig. 12: Protective Earth (PE) connections on metal enclosure Fig. 13: Switch position voltage selection (type PF and PM). Fig. 14: Overview of terminal connectors F093-P – type PB / PD / PX Fig. 15: Terminal connections - Coil signal input. - Page 55 Page 55 FW-F093-P-M_v0404_01_EN.docx...
- Page 56 _ _ _ _ _ _ _ 7.4 pass code 0000 7.5 tagnumber 0000000 Fluidwell bv PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Fluidwell bv - © 2022 - FW-F093-P-M_v0404_01_EN.docx FW-F093-P-M_v0404_01_EN.docx...
