TPXC Series
Installation Instructions
Networking Operations for "-G3" Models
Model with "-G3" suffix is our world winning design equipped with "wireless testing and reporting" features. Unit that
has "-G3" suffix in its model number is capable of joining
part of a large testing system to be tested and report result wirelessly.
Once powered up and commissioning allowed, unit will automatically join
the completion of the commissioning,unit will perform testing and report based on set schedules.
For more information about commissioning, configurations and testing, please visit website,
for details.

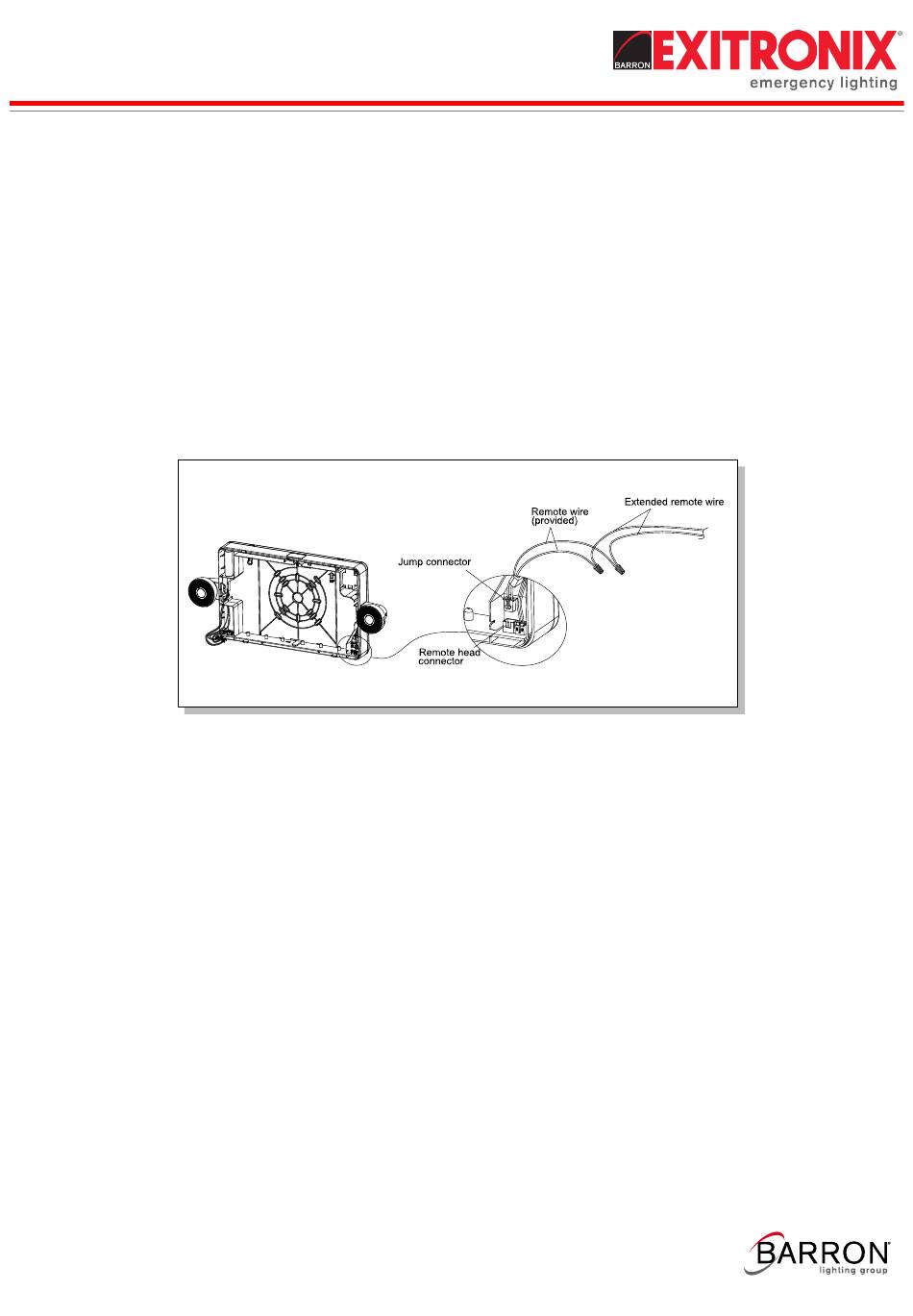

Remote Heads Connection Instructions (Fig. 8) (Option)
1. Remove jump connector from the female connector on PCBA.
2. Attach the remote male connector into the female connector on PC board.
3. Connect extended remote head wires to the remote wires using wire nuts. Yellow is positive (+) and the purple is
negative (-).
XXXXXXXX REV 1 - 07/23
Fig. 8
Guardian
emergency lighting management system. It will be
Guardian
4
network and get provisioned. Upon
https://www.barronltg.com
800-533-3948 www.barronltg.com
