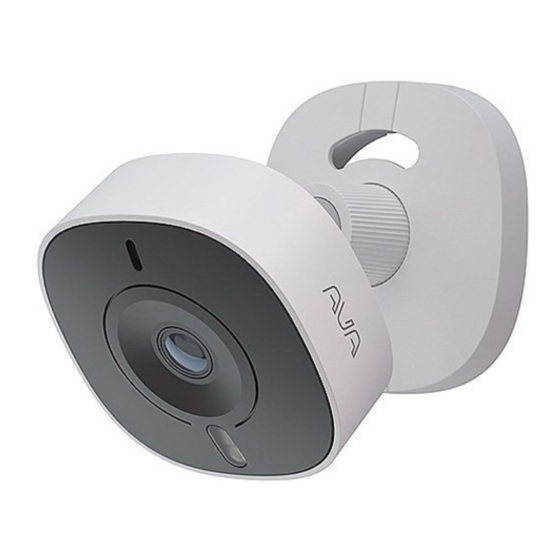

- Page 1 AVA FLEX CAMERA MOUNTING GUIDE Avigilon Alta Cloud Security...
-
Page 2: Important Warnings And Safety Instructions
The camera and the PoE PSE must be installed within the same building, as described by Environment A of the IEEE 802.3af standard. The PoE PSE must be properly grounded. IFT: SEAVFL23-21878 MOUNTING GUIDE | AVIGILON AVA FLEX CAMERA 2 /8... -
Page 3: Box Contents
Drill with 6mm (1/4”) drill bit Anchor dimensions Screw dimensions l = 25 mm = 9.4 mm d = 6mm / ¼ ” l = 32 mm d = 4 mm MOUNTING GUIDE | AVIGILON AVA FLEX CAMERA 3 /8... - Page 4 Cable routing alternatives MOUNTING GUIDE | AVIGILON AVA FLEX CAMERA 4 /8...
-
Page 5: Installing The Bracket
Installing the bracket Dia: 6mm, [¼”] Depth: 40mm [1.5”] Through the wall / ceiling cable Side entry cable MOUNTING GUIDE | AVIGILON AVA FLEX CAMERA 5 /8... - Page 6 Attaching the camera and connecting the ethernet cable MOUNTING GUIDE | AVIGILON AVA FLEX CAMERA 6 /8...
- Page 7 ADJUSTING CAMERA ORIENTATION BY USING THE BALL JOINT MOUNTING GUIDE | AVIGILON AVA FLEX CAMERA 7 /8...
-
Page 8: Federal Communication Commission Interference Statement
Motorola Solutions, Inc. 500 West Monroe Street, Chicago, IL 60661 U.S.A. motorolasolutions.com © 2023, Avigilon Corporation. All rights reserved. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. 07-2023...
