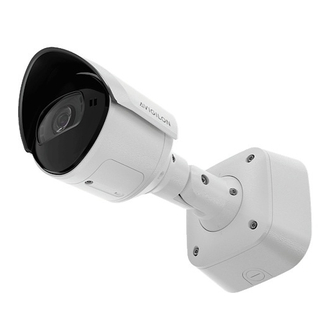

- Page 1 Installation Guide Avigilon H6A and H6X Bullet Camera Models: 2.0C-H6A-BO1-IR 4.0C-H6A-BO1-IR 6.0C-H6A-BO1-IR 8.0C-H6A-BO1-IR 2.0C-H6A-BO2-IR 4.0C-H6A-BO2-IR 6.0C-H6A-BO2-IR 8.0C-H6A-BO2-IR 4.0C-H6X-BO1-IR 8.0C-H6X-BO1-IR 4.0C-H6X-BO2-IR 8.0C-H6X-BO2-IR...
-
Page 2: Legal Notices
Legal Notices © 2024, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. ONVIF is a trademark of Onvif, Inc. Covered by one or more claims of the patents listed at patentlist.hevcadvance.com. Other names or logos mentioned herein may be the trademarks of their respective owners. -
Page 3: Important Safety Information
Important Safety Information WARNING Failure to observe the following instructions may result in severe injury or death. Installation must be performed by qualified personnel only, and must conform to all local codes. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. -
Page 4: Regulatory Notices
Regulatory Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003 (B)/NMB-3(B). -
Page 5: Disposal And Recycling Information
PMN: ACDOSRNE, ACBUSRNE, ACBULRNE UK Product Security and Telecommunications Infrastructure (PSTI) Act: Avigilon cameras comply with the PSTI requirements. For more information, see the published PSTI Statement of Compliance. For Korea IR Safety Information Use appropriate shielding or eye protection. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. -
Page 6: Table Of Contents
Table of Contents Overview Junction Box View Rear View Front View Configuration Panel View Side View Installation Pre-Deployment In-Box Configuration Camera Package Contents Installation Steps Mounting and Aiming Video Analytics Cameras Installing the Junction Box Accessing Cables through the Side Conduit Connecting Cables Mounting the Camera Aiming the Camera... - Page 7 Resetting to Factory Default Settings Limited Warranty and Technical Support...
-
Page 8: Overview
Overview Junction Box View 1. Camera Mounts Points for installing the camera to the mounting bracket. 2. Mounting hinge Point to hold the camera to the junction box while connecting the required cables. 3. Cable hooks Points to wrap the excess cable length around. 4. -
Page 9: Rear View
Rear View 1. Camera mounting screws Screws for mounting the camera to the junction box. 2. Power and I/O cable connectors Cable connectors for connecting the camera cables to auxiliary power and I/O devices. For more information, see Connecting to Power and External Devices on page 20. -
Page 10: Front View
Front View 1. Microphone Built-in microphone records audio when enabled. For more information, see (Optional) Enabling the Microphone on page 18. NOTE Microphone is not available on H6X camera models. NOTE Microphone is not available on SRXE4P camera models. 2. Configuration panel cover Configuration Covers the configuration panel. -
Page 11: Configuration Panel View
Configuration Panel View 1. Microphone switch Switch to enable or disable the built-in microphone. For more information, see (Optional) Enabling the Microphone on page 18. NOTE Microphone is not available on H6X camera models. NOTE Microphone is not available on SRXE4P camera models. 2. -
Page 12: Side View
Side View 1. Sun shroud A cover to help protect the lens against glare from the sun. 2. Mount arm Adjustable mount arm for positioning the camera. 3. Adjustment screws Provides a locking mechanism for the mount arm. Side View... -
Page 13: Installation
Installation Pre-Deployment In-Box Configuration The camera comes equipped with an RJ45 connector that is accessible from the outside of the box for users that want to configure camera settings before installing the camera. The RJ45 connector is accessible through the small flap on the side of the camera box for easy configuration before unpacking the camera. -
Page 14: Camera Package Contents
Camera Package Contents Avigilon H6A or H6X Bullet Camera Mounting template sticker 4 screws and anchors for solid walls T20 Pin-In star-shaped driver Junction Box Wall plate Aux terminal block I/O Terminal Block 1/2" conduit adapter Grommet piercing cap Camera Package Contents... -
Page 15: Installation Steps
Installation Steps Complete the following sections to install the device. Mounting and Aiming Video Analytics Cameras When installing an Avigilon video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: The camera should be installed above 2.74 m (9 feet). The camera should tilt downwards no more than 45 degrees. - Page 16 NOTE It is recommended that silicone sealant be applied around the edge of the junction box to prevent moisture from entering the mounting surface. 4. Hook the camera onto the junction box using the mounting hooks, and let the camera hang. Installing the Junction Box...
-
Page 17: Accessing Cables Through The Side Conduit
Accessing Cables through the Side Conduit 1. Use the mounting template to drill four mounting holes into the mounting surface. 2. Secure the conduit pipe in place using a pipe clamp. 3. Pull the cables through the conduit and wrap the excess cable length around the cable hooks. 4. -
Page 18: Connecting Cables
NOTE It is recommended that silicone sealant be applied around the edge of the junction box to prevent moisture from entering the mounting surface. 6. Hook the camera onto the junction box using the mounting hooks, and let the camera hang. Connecting Cables Before connecting any cables, ensure that the cable connections are properly protected from moisture and corrosion. - Page 19 5. Thread the cable through the junction box and sit the grommet in the cable hole of the junction box. 6. Connect a network cable to the Ethernet port (RJ-45 connector). The Link LED indicator will turn on once a network link has been established. 7.
-
Page 20: Mounting The Camera
Mounting the Camera Once all the cable connections have been made, secure the camera to the mounting bracket. 1. Tuck the extra lengths of cables into the cable entry hole. 2. Secure the camera to the mounting bracket: a. Raise the camera until it covers the mounting bracket. b. - Page 21 3. To use the camera in portrait mode instead of landscape mode: a. Use a T20 Pin-In star-shaped driver to unscrew and remove the sun shroud mount from the camera. NOTE The sun shroud should only be removed when the camera is installed indoors and space is limited.
-
Page 22: Removing The Configuration Panel Cover
5. In the camera web browser interface, Avigilon Unity Video or the Avigilon Control Center software adjust the camera’s Image and Display settings. You can set the zoom position, focus and change the image rotation. Removing the Configuration Panel Cover 1. -
Page 23: (Optional) Using The Usb Wi-Fi Adapter
USB Wi-Fi Adapter: when connecting a camera in the factory default state, you will be redirected to the Create Administrator User page to create the first user. For more information, see Avigilon USB Wi-Fi Adapter System User Guide . Avigilon Unity Video Client or Avigilon Control Center software version 7.4 or later, or version 6.14.12 or later: when connecting a device in the factory default state, the client software will ask you to create a new user. -
Page 24: Accessing The Live Video Stream
The mobile web interface using the USB Wifi Adapter. For more information, see (Optional) Using the USB Wi-Fi Adapter on the previous page. Device's web browser interface: http:// <camera IP address>/ . Network Video Management software application (for example, the Avigilon Unity Video software). NOTE When you log in the first time, the camera will be in a factory default state and no password is required. -
Page 25: (Optional) Enabling The Microphone
(Optional) Enabling the Microphone The H6A camera models feature an internal microphone, and include a switch to physically enable or disable the microphone. The microphone switch is set to OFF by default. We recommend that you enable the microphone before installing the camera in its final location. 1. -
Page 26: (Optional) Configuring Microsd Card Storage
(Optional) Configuring microSD Card Storage To use the camera’s onboard storage feature, you must insert 1 microSD card into a microSD card slot. While there are two microSD slots, currently the camera only supports a single microSD card in either slot for onboard storage. For the location of the microSD card slots, see Camera Module on page 1. -
Page 27: Connecting To Power And External Devices
Connecting to Power and External Devices If PoE is not available, the camera may be powered through the auxiliary power cable using 12 V DC. The power consumption information is listed in the product specifications. IMPORTANT This product is intended to be supplied by a UL Listed Power Unit marked “Class 2” or “LPS” or “Limited Power Source”... -
Page 28: External Power Failover
* — Relay ** — Switch M — Microphone S — Speaker External Power Failover If the camera has power available from both an external Aux power supply and a PoE PSE (Power Sourcing Equipment) device, the camera will draw power from Aux. In the event that the camera loses power from the preferred Aux power supply it can transition to drawing power from the PoE PSE device. - Page 29 NOTE Seamless failover is only guaranteed when PoE Class 4 (25.5W) "full power" is available on the PoE port. Auxiliary (Aux) power is always assumed to be “full power,” meaning that there is enough power available for all possible camera functions. PoE, on the other hand, has many different power classes and the product’s functionality depends on the PoE power class that is available.
-
Page 30: Connection Status Led Indicator
Connection Status LED Indicator Once connected to the network, the green Connection Status LED indicator will display the progress in connecting to the Network Video Management software. The following table describes what the LED indicator shows: Connection State Connection Status Description LED Indicator Obtaining... -
Page 31: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: For models that feature an SD card slot, resetting the camera will not affect video that has been recorded to the SD card. -
Page 32: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warranty terms for this product are provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact. Limited Warranty and Technical Support...
