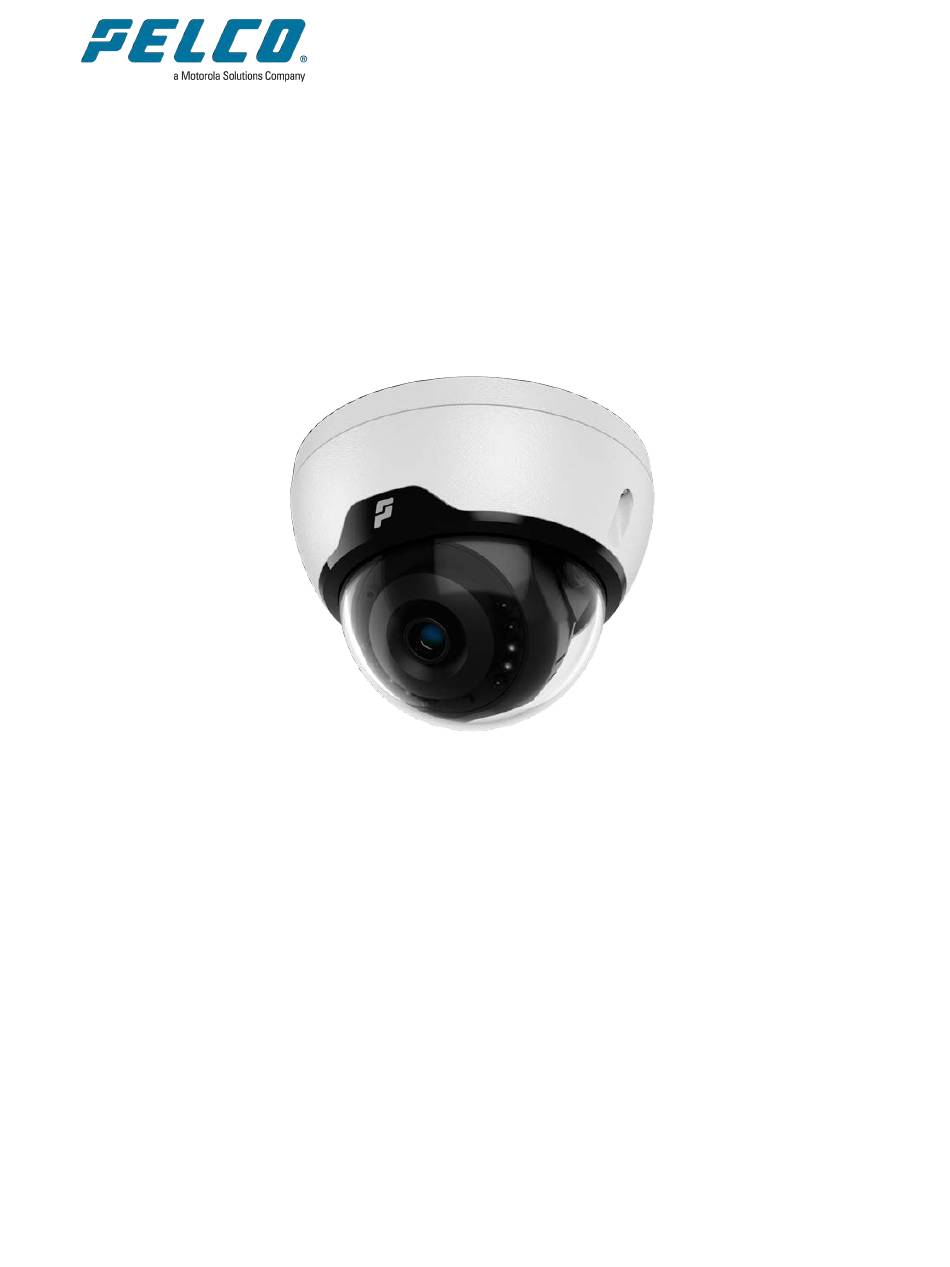

- Page 1 Sarix Value 2 Series Indoor Dome Installation Manual Camera Model: SRXV2-2F3-IMD-IR Document number: C6781M Publication date: 1/2025...
-
Page 2: Legal Notices
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Legal Notices © 2025, Pelco Corporation. All rights reserved. PELCO, the PELCO logo, PELCO are trademarks of Pelco Corporation. ONVIF is a trademark of Onvif, Inc. Covered by one or more claims of the patents listed at patentlist.hevcadvance.com. -
Page 3: Important Safety Information
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Important Safety Information WARNING Failure to observe the following instructions may result in severe injury or death. Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. The mains power adaptor equipment should be marked LPS (Limited Power Source) or PS2 and rated 12Vdc, 0.75A min or PoE 48Vdc, 0.19A min, Tam=50 degree C. -
Page 4: Regulatory Notices
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Regulatory Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 5 Sarix Value 2 Series Indoor Dome Cameras Installation Manual This symbol means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities.
-
Page 6: Table Of Contents
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Table of Contents Important Safety Information Regulatory Notices For Korea Disposal and Recycling Information Overview Camera Module Cover View Internal View Preparing for Installation Removing the Dome Cover Mounting and Aiming Video Analytics Cameras Surface Mount Installation Surface Mount Required Tools and Materials Surface Mount Package Contents... - Page 7 Sarix Value 2 Series Indoor Dome Cameras Installation Manual Body Limited Warranty and Technical Support Pelco Troubleshooting Contact Information C6781M | 1/2025...
-
Page 8: Overview
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Overview Camera Module Cover View 1. Dome cover Polycarbonate dome cover. 2. Trim ring A circular piece that fits around the base or edge of the camera. 3. Tamper resistant screws Star-shaped captive screws to fix the dome cover to the base. -
Page 9: Internal View
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Internal View 1. Indicator Arrow Arrow used for aligning the video image. The arrow points towards the top of an image. 2. Camera Lens Fixed camera lens for capturing video. 3. IR LED Lights IR LED embedded board for illumination under low-light conditions. -
Page 10: Preparing For Installation
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Preparing for Installation Removing the Dome Cover 1. Remove the cover by loosening the screws that fix the cover to the base. Use the provided starshaped screwdriver to loosen the screws. NOTE Be careful not to scratch or touch the dome bubble. -
Page 11: Mounting And Aiming Video Analytics Cameras
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Mounting and Aiming Video Analytics Cameras When installing a Pelco Smart analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: The camera should be installed above 2.74 m (9 feet). The camera should tilt downwards no more than 45 degrees. -
Page 12: Surface Mount Installation
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Surface Mount Installation Surface Mount Required Tools and Materials The following tools are required to complete the installation but are not included in the package: Appropriate tool for cutting the cable access hole. Appropriate tool for drilling mounting screw holes in the mounting surface. - Page 13 Sarix Value 2 Series Indoor Dome Cameras Installation Manual 1. Using the Surface Mounting Template, drill three pilot holes into the mounting surface for the mounting screws. 2. Hammer the supplied plastic anchors into the holes. 3. Cut the cable entry hole into the mounting surface with a drywall saw or hole saw. 4.
- Page 14 Sarix Value 2 Series Indoor Dome Cameras Installation Manual a. Attach the Ethernet cable: a. Terminate the RJ-45 connector. b. Plug the Ethernet cable into the provided PoE RJ-45 port (for both power supply and network connectivity purposes). You can also use the Aux wires (Red + and Black - wires) to connect 12VDC.
- Page 15 Sarix Value 2 Series Indoor Dome Cameras Installation Manual NOTE To enable the hitless power failover feature and prevent camera reboots during power source changes, connect both the auxiliary and PoE power supplies simultaneously. The camera will then operate normally with both power sources active, automatically switching to the remaining source if one is removed.
-
Page 16: Mounting The Indoor Dome To A Ceiling Or Wall (External Cable)
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Mounting the Indoor Dome to a Ceiling or Wall (External Cable) Perform the following steps if mounting the camera directly to the surface and the cables will come from outside the mounting surface. Use this procedure on surfaces that can be easily drilled into, and when the cables should be installed externally using the side conduit entry hole. - Page 17 Sarix Value 2 Series Indoor Dome Cameras Installation Manual 4. Attach the Ethernet cable: a. Terminate the RJ-45 connector. b. Plug the Ethernet cable into the provided PoE RJ-45 port (for both power supply and network connectivity purposes). C6781M | 1/2025...
- Page 18 Sarix Value 2 Series Indoor Dome Cameras Installation Manual NOTE To enable the hitless power failover feature and prevent camera reboots during power source changes, connect both the auxiliary and PoE power supplies simultaneously. The camera will then operate normally with both power sources active, automatically switching to the remaining source if one is removed..
-
Page 19: Installing The Indoor Dome Cover
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Installing the Indoor Dome Cover Be careful not to touch or scratch the dome bubble when installing the dome cover. NOTE Before installing the dome cover, we recommend that you first connect to the camera and adjust the aim, zoom, and focus so that the camera covers the required field of view. -
Page 20: Connecting A Camera To The Network
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Connecting a Camera to the Network Hitless Power Failover Hitless (seamless) power failover allows the camera to transition between PoE and auxiliary power sources without any interruption of camera operation or video recording. This is mainly useful if you want redundant power sources so that backup power will be available if one power source goes down. -
Page 21: Creating The Initial User And Logging In
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Creating the Initial User and Logging In Cameras do not have a default username and password and will be in a factory default state. NOTE You must create a user with administrator privileges before the camera is operational. If the camera is in the factory default state, you will be redirected to the New User page to create an administrator user: 1. -
Page 22: Positioning The Indoor Dome Camera
The microSD card can only be inserted in one direction. 2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Pelco Sarix Value 2 Series Indoor Dome Operations Manual . Positioning the Indoor Dome Camera To position the indoor dome camera, follow the steps below. -
Page 23: Configuring The Camera
Value 2 Series Indoor Dome Operations Manual . For More Information Additional information about setting up and using the device is available in the following guides: Pelco Sarix Value 2 Series Indoor Dome Operations Manual available on the Pelco website: www.pelco.com. Camera Configuration Tool User Guide... -
Page 24: Connection Status Led Indicator
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Connection Status LED Indicator Once connected to the network, the green Connection Status LED indicator will turn on during the camera's boot up process. Once fully booted, the LED will turn off. C6781M | 1/2025... -
Page 25: Resetting To Factory Default Settings
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: Figure 1: The firmware revert button on the indoor dome camera. -
Page 26: Cleaning
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or fingerprints. Use a microfiber cloth or non-abrasive fabric to dry the dome bubble. -
Page 27: Limited Warranty And Technical Support
Sarix Value 2 Series Indoor Dome Cameras Installation Manual Limited Warranty and Technical Support Pelco warranty terms for this product are provided at pelco.com/warranty. Warranty service and technical support can be obtained by contacting Pelco Technical Support: pelco.com/contact. C6781M | 1/2025... - Page 28 Sarix Value 2 Series Indoor Dome Cameras Installation Manual Pelco Troubleshooting Contact Information For further assistance, contact Pelco Product Support at 1-800-289-9100 (USA and Canada) or +1-559- 292-1981 (international). Do not try to repair the unit yourself. Leave maintenance and repairs to qualified technical personnel only. C6781M | 1/2025...
- Page 29 Sarix Value 2 Series Indoor Dome Cameras Installation Manual C6781M | 1/2025...
