Cincoze CS-100/P2202 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CS-100/P2202 Series
User Manual

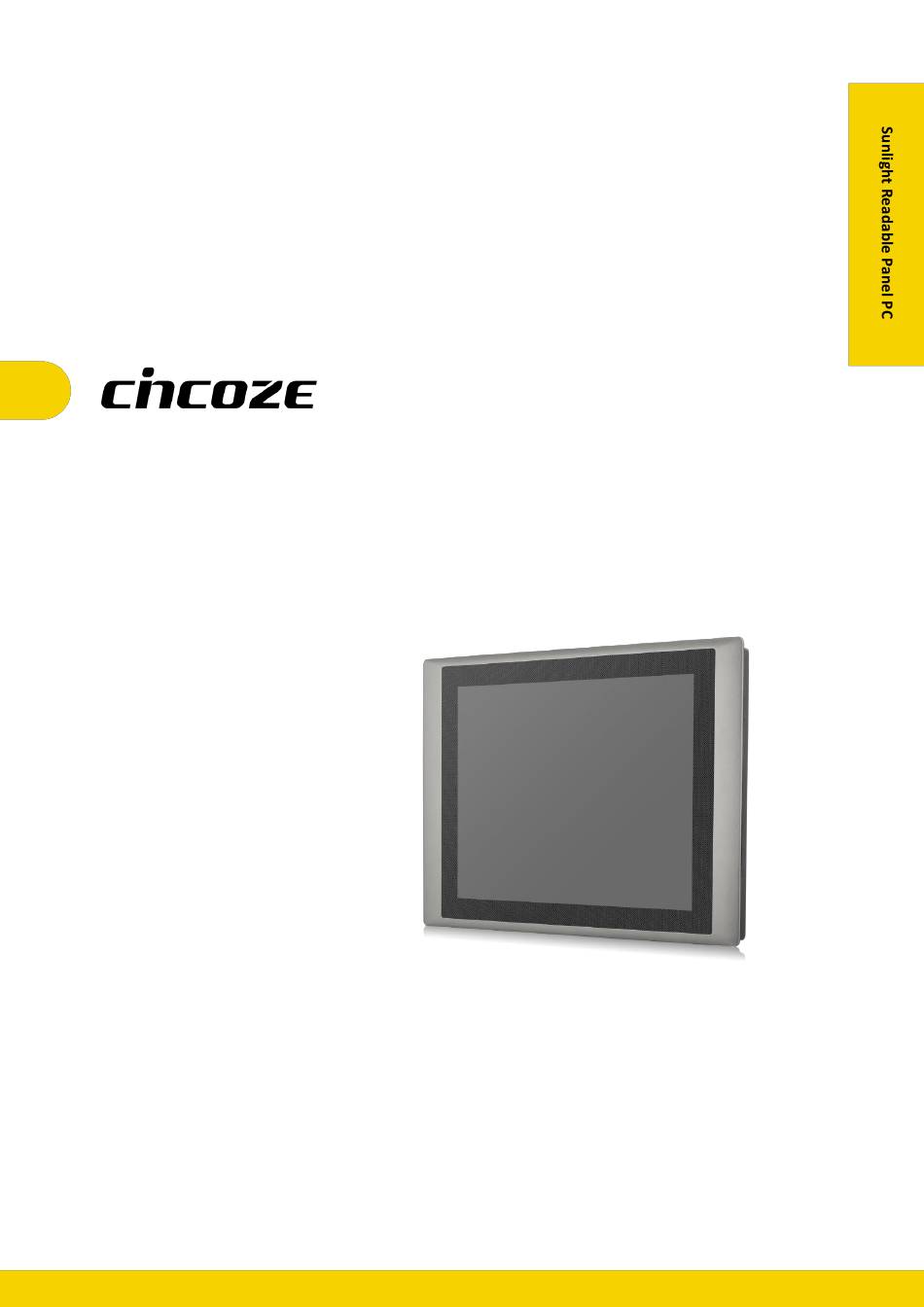

Industrial Panel PC
High Performance Sunlight Readable Panel PC
Version: V1.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-100/P2202 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CS-100/P2202 Series

Summary of Contents for Cincoze CS-100/P2202 Series

  • Page 1 CS-100/P2202 Series User Manual Industrial Panel PC High Performance Sunlight Readable Panel PC Version: V1.11...

  • Page 2: Table Of Contents

    2.4 Definition of Connectors ...................... 53 2.5 Optional Module Pin Definition & Settings ................59 2.5.1 CFM-IGN101 Module ....................59 Chapter 3 System Setup ........................60 3.1 Removing the Top Cover ...................... 61 3.2 Installing Mini PCIe Card(s) ....................62 CS-100/P2202 Series | User Manual...
  • Page 3 4.3.9 Serial Port Console Redirection ................. 106 4.3.10 USB Configuration ....................107 4.3.11 Network Stack Configuration .................. 107 4.3.12 CSM Configuration ....................108 4.4 Chipset Setup ........................108 4.4.1 System Agent (SA) Configuration ................109 4.4.2 PCH-IO Configuration ....................112 CS-100/P2202 Series | User Manual...
  • Page 4 4.6 Boot Setup .......................... 115 4.7 Save & Exit .......................... 116 4.8 MEBx ..........................117 Chapter 5 Product Application ......................120 5.1 Where to download drivers? ..................... 121 5.2 Where to find the technical documents? .........錯誤! 尚未定義書籤。 CS-100/P2202 Series | User Manual...

  • Page 5: Preface

    2024/12/31 Copyright Notice © 2023 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
  • Page 7 Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Technical Support And Assistance

    Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫...

  • Page 9: Safety Precautions

    16. Ensure to connect the power cord of power adapter to a socket-outlet with earthing connection. 17. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. CS-100/P2202 Series | User Manual...

  • Page 10: Package Contents

    12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch 15" 1800nits TFT-LCD Sunlight Readable and Modular Panel PC with 12th Gen. CS-115C/P2202-i3 Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch CS-115C/P2202E-i3 15" 1800nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC CS-100/P2202 Series | User Manual...
  • Page 11 24" Full HD TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE CS-W124C/P2202-i3 Dual Core Processor and Projected Capacitive Touch 24" Full HD TFT-LCD Modular and Expandable Panel PC with 12th Gen. Intel® CS-W124C/P2202E-i3 Core™ i3-1215UE Dual Core Processor and Projected Capacitive Touch CS-100/P2202 Series | User Manual...

  • Page 12: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CS-100/P2202 Series | User Manual...

  • Page 13: Overview

    1.1 Overview The CS-100/P2202 series is a sunlight-readable high-performance panel PC that provides ultra-high brightness of up to 1,800 nits. It is equipped with an Intel® Core™ U-series (Alder Lake-P) processor that provides a complete selection of screen sizes, ratios, and brightnesses.

  • Page 14: Specifications

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz CS-100/P2202 Series | User Manual...
  • Page 15 2x 2.5” SATA HDD/SSD Bay (SATA3.0) • RAID Support RAID 0/1 Expansion • Mini PCI Express 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot PCI Express (with Optional Riser Card) * Supports maximum dimensions of CS-100/P2202 Series | User Manual...
  • Page 16 Physical Design • Jumper-less Design Reliability & Protection • Reverse Power Input Protection • Protection Range: 51-58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover CS-100/P2202 Series | User Manual...
  • Page 17 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2202 Series | User Manual...
  • Page 18 Dimensions CS-112HC/P2202 unit: mm CS-112HC/P2202E unit: mm CS-100/P2202 Series | User Manual...

  • Page 19: Cs-115C/P2202 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CS-100/P2202 Series | User Manual...
  • Page 20 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CS-100/P2202 Series | User Manual...
  • Page 21 Protection Range: 51-58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation CS-100/P2202 Series | User Manual...
  • Page 22 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2202 Series | User Manual...
  • Page 23 Dimensions CS-115C/P2202 unit: mm CS-115C/P2202E unit: mm CS-100/P2202 Series | User Manual...

  • Page 24: Cs-117C/P2202 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CS-100/P2202 Series | User Manual...
  • Page 25 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CS-100/P2202 Series | User Manual...
  • Page 26 Protection Range: 51-58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation CS-100/P2202 Series | User Manual...
  • Page 27 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2202 Series | User Manual...
  • Page 28 Dimensions CS-117C/P2202 unit: mm CS-117C/P2202E unit: mm CS-100/P2202 Series | User Manual...

  • Page 29: Cs-119C/P2202 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CS-100/P2202 Series | User Manual...
  • Page 30 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CS-100/P2202 Series | User Manual...
  • Page 31 Protection Range: 51-58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation CS-100/P2202 Series | User Manual...
  • Page 32 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2202 Series | User Manual...
  • Page 33 Dimensions CS-119C/P2202 unit: mm CS-119C/P2202E unit: mm CS-100/P2202 Series | User Manual...

  • Page 34: Cs-W121C/P2202 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CS-100/P2202 Series | User Manual...
  • Page 35 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CS-100/P2202 Series | User Manual...
  • Page 36 Protection Range: 51-58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation CS-100/P2202 Series | User Manual...
  • Page 37 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2202 Series | User Manual...
  • Page 38 Dimensions CS-W121C/P2202 unit: mm CS-W121C/P2202E unit: mm CS-100/P2202 Series | User Manual...

  • Page 39: Cs-W124C/P2202 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CS-100/P2202 Series | User Manual...
  • Page 40 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CS-100/P2202 Series | User Manual...
  • Page 41 Protection Range: 51-58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation CS-100/P2202 Series | User Manual...
  • Page 42 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P2202 Series | User Manual...
  • Page 43 Dimensions CS-W124C/P2202 unit: mm CS-W124C/P2202E unit: mm CS-100/P2202 Series | User Manual...

  • Page 44: External Layout

    1.3 External Layout 1.3.1 Front CS-100/P2202 CS-100/P2202E CS-100/P2202 Series | User Manual...

  • Page 45: Rear

    1.3.2 Rear CS-100/P2202 CS-100/P2202E CS-100/P2202 Series | User Manual...

  • Page 46: Left

    1.3.3 Left CS-100/P2202 CS-100/P2202E CS-100/P2202 Series | User Manual...

  • Page 47: Right

    1.3.4 Right CS-100/P2202 CS-100/P2202E CS-100/P2202 Series | User Manual...

  • Page 48: Chapter 2 Introduction To Switches And Connectors

    Chapter 2 Introduction to Switches and Connectors CS-100/P2202 Series | User Manual...

  • Page 49: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View CS-100/P2202 Series | User Manual...

  • Page 50: Switches And Connectors Definition

    PCIEx4 Slot POE_PH1 PSE Board Male Header POWER1, POWER2 Power Connector, Support +5V/+12V PWR_SW1 Power Button with Power on LED PWR_SW2 Remote Power on/off Connector Reset1 Reset Button RTC1 Clear COMS Switch SATA1, SATA2 SATA Connector CS-100/P2202 Series | User Manual...

  • Page 51: Definition Of Switches

    Normal (Default) Right Clear CMOS BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease CS-100/P2202 Series | User Manual...
  • Page 52 Function DIP1 DIP2 ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 ON (Default) ON (Default) COM2 Location Function DIP5 DIP6 ON (Default) ON (Default) COM3 Location Function DIP7 DIP8 ON (Default) ON (Default) COM4 CS-100/P2202 Series | User Manual...

  • Page 53: Definition Of Connectors

    LAN LED Status Definition Link LED Status Definition Steady Green 1 Gbps Network Link Steady Orange 100 Mbps Network Link 10 Mbps Network Link Act LED Status Definition Blinking Yellow Data Activity Steady Yellow No Activity CS-100/P2202 Series | User Manual...
  • Page 54 Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch Definition RMT_PWR_BTN_N Do not apply power to this connector! This port is used to connect a SWITCH! (Ne mettez pas sous tension ce connecteur! Ce port est utilisé pour connecter un SWITCH!) CS-100/P2202 Series | User Manual...
  • Page 55 DIO2 (Digital Input) DIO1: Digital Output Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+(DC INPUT) XCOM-(GND) DIO2: Digital Input Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+(DC INPUT) XCOM-(GND) CS-100/P2202 Series | User Manual...
  • Page 56 Pin No. Pin Name Pin No. Pin Name WAKE# +3.3V +1.5V CLKREQ# REFCLK- REFCLK+ Mechanical KEY W_DISABLE1# PERST# PERn +3.3V PERp +1.5V SMB_CLK PETn SMB_DATA PETp USB_D- USB_D+ +3.3V +3.3V CLINK_CLK CLINK_DAT +1.5V CLINK_RST +3.3V CS-100/P2202 Series | User Manual...
  • Page 57 Pin No. Pin Name WAKE# +3.3V +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST UIM_VPP Mechanical KEY PERST# PERn/USB3_Rn +3.3V PERp/USB3_Rp +1.5V SMB_CLK PETn/USB3_Tn SMB_DATA PETp/USB3_Tp USB_D- USB_D+ +3.3V +3.3V +1.5V +3.3V PERST# PERn/USB3_Rn +3.3V CS-100/P2202 Series | User Manual...
  • Page 58 BRI_ RSP WGR_CLKp Mechanical KEY RGI_DT PETp0 RGI_RSP PETn0 BRI_DT CLINK_RST PERp0 CLINK_DATA PERn0 CLINK_CLK COEX3 REFCLKp0 COEX_TXD REFCLKn0 COEX_RXD SUSCLK CLKREQ0# PERST0# PEWAKE0# W_DISABLE2# W_DISABLE1# WTD1n/PETp1 I2C_DATA WTD1p/PETn1 I2C_CLK ALERT WTD0n/PERp1 REFCLK WTD0p/PERn1 PERST1# CS-100/P2202 Series | User Manual...

  • Page 59: Optional Module Pin Definition & Settings

    Default setting of Pin1 to Pin4 is OFF/ON/ON/ON. 24V_12V_1 (on the system)：IGN Module Voltage Mode Setting Switch 12V / 24V Car Battery Switch Switch Definition Left 24V Car Battery Input (Default) Right 12V Car Battery Input CS-100/P2202 Series | User Manual...

  • Page 60: Chapter 3 System Setup

    Chapter 3 System Setup CS-100/P2202 Series | User Manual...

  • Page 61: Removing The Top Cover

    Step 1. Loosen the eight screws at front and rear panel Step 2. Raise the top cover and remove it from the chassis. Step 3. Place the top cover aside gently. CS-100/P2202 Series | User Manual...

  • Page 62: Installing Mini Pcie Card(S)

    Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. Step 4. Press down the card and secure it with two screws. CS-100/P2202 Series | User Manual...

  • Page 63: Installing A M.2 E Key Card

    Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. Step 3. Press the card down and secure it with 1 screw. CS-100/P2202 Series | User Manual...

  • Page 64: Installing Antenna(S)

    Penetrate the antenna jack through the hole. And then put on the washer and fasten the nut with antenna jack. Step 3. Assemble the antenna and antenna jack together. Step 4. Attach the RF connector at another end of the cable onto the card. CS-100/P2202 Series | User Manual...

  • Page 65: Installing So-Dimm(S)

    Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 45° 45° Upper socket Lower socket Step 3. Press down the memory module until retaining clips snap back in place. Upper socket Lower socket CS-100/P2202 Series | User Manual...

  • Page 66: Installing A Pci(E) Card

    Loosen the screw as indicated to remove the PCI bracket. Step 4. Align the notch of golden fingers of Riser card (Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. CS-100/P2202 Series | User Manual...
  • Page 67 Fasten the screw back to secure the PCI(e) expansion card. Step 7. Loosen the two screws as indicated to have the clamp arm slidable. Step 8. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. CS-100/P2202 Series | User Manual...

  • Page 68: Installing Thermal Pad Of Thermal Block

    Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le capot du châssis du système, assurez-vous que le film protecteur du coussin thermique a été retiré !) CS-100/P2202 Series | User Manual...

  • Page 69: Installing The Top Cover

    The complete shipping product is the CS display module already installed on the P2202. This chapter will introduce how to dissemble CS display module and P2202. Step 1. Remove the 6 screws on the display module and disconnect the module. CS-100/P2202 Series | User Manual...

  • Page 70: Installing A Sata Hard Drive At Front Panel

    Step 2. Loosen the screw as indicated on the HDD bracket. Step 3. Pull the rotating arm of HDD bracket outward as indicated. Step 4. Hold the rotating arm to pull out the HDD bracket. CS-100/P2202 Series | User Manual...
  • Page 71 HDD fully inserted into SATA slot. Step 7. Fasten the screw as indicated on the HDD bracket. Step 8. Put back HDD bay cover at front panel, and fasten it with the screw. CS-100/P2202 Series | User Manual...

  • Page 72: Installing A Sata Hard Drive On Bottom Side

    Turn over the system to bottom side. Locate the cover of HDD compartment. Step 2. Loosen the two screws, lift the cover, and then remove it. Step 3. Loosen three screws and take the HDD bracket out of HDD compartment. CS-100/P2202 Series | User Manual...
  • Page 73 Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Step 6. Secure the HDD bracket with three screws. Step 7. Put back the cover and fasten the two screws. CS-100/P2202 Series | User Manual...

  • Page 74: Installing A Sim Card

    3.12 Installing a SIM Card Step 1. Loosen the screw to remove the Maintenance cover bracket. Step 2. Locate the SIM card slot. Step 3. Insert the SIM card. CS-100/P2202 Series | User Manual...

  • Page 75: Installing Cfm Modules

    Locate the power Ignition connector on system motherboard as indicated. Step 2. Insert the female connector of power ignition board to the male connector on system motherboard. Step 3. Fasten two screws to secure the power ignition board. CS-100/P2202 Series | User Manual...

  • Page 76: Cfm-Poe04 Module

    (Avant de mettre le bloc thermique, veuillez vous assurer que le film protecteur sur le coussin thermique a été retiré!) Step 3. Paste the thermal pad onto the coil of the CFM-PoE module. Step 4. Locate the PoE connector on system motherboard as indicated. CS-100/P2202 Series | User Manual...
  • Page 77 Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! (Avant d'assembler le capot du châssis du système, assurez-vous que les films de protection sur les coussinets thermiques ont été retirés !) CS-100/P2202 Series | User Manual...

  • Page 78: Installing Mec Modules

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CS-100/P2202 Series | User Manual...
  • Page 79 Press the card down and secure it with 2 screws. Step 5. Remove the 4 D-Sub jack screws from the COM ports. Step 6. Connect the other end of the wire to the Mini PCIe card as indicated. CS-100/P2202 Series | User Manual...
  • Page 80 Attach the COM ports onto the back side of the cover plates, and then fasten the 4 D-Sub jack screws to secure the COM ports. Step 8. Attach the MEC-COM bracket, and fasten the 2 screws to fix it as indicated. CS-100/P2202 Series | User Manual...

  • Page 81: Mec-Com-M334-Tdb9/Ub1203 Module

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CS-100/P2202 Series | User Manual...
  • Page 82 Step 4. Press the card down and secure it with 2 screws. Step 5. Remove the 8 D-Sub jack screws from the COM ports. CS-100/P2202 Series | User Manual...
  • Page 83 Attach the COM ports onto the back side of the cover plates, and then fasten the 8 D-Sub jack screws to secure the COM ports. Step 8. Attach the MEC-COM bracket, and fasten the 4 screws to fix it as indicated. CS-100/P2202 Series | User Manual...

  • Page 84: Mec-Usb-M102-30/Ub1214 Module

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CS-100/P2202 Series | User Manual...
  • Page 85 Press the card down and secure it with 2 screws. Step 5. Connect the attached wire to the USB board. Step 6. Connect the other end of the wire to the Mini PCIe card as indicated. CS-100/P2202 Series | User Manual...
  • Page 86 Attach the USB board onto the back side of the cover plate, and then fasten the two screws to secure the module. Step 8. Attach the MEC-USB bracket, and fasten the 2 screws to fix it as indicated. CS-100/P2202 Series | User Manual...

  • Page 87: Mec-Lan-M102-30/Ub1211 Module

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CS-100/P2202 Series | User Manual...
  • Page 88 Step 4. Press the card down and secure it with 2 screws. Step 5. Connect the attached wires to the LAN board. Step 6. Connect the wires to the Mini PCIe card as indicated. CS-100/P2202 Series | User Manual...
  • Page 89 Attach the LAN board onto the back side of the cover plate, and then fasten the two screws to secure the module. Step 9. Attach the MEC-LAN bracket, and fasten the 2 screws to fix it as indicated. CS-100/P2202 Series | User Manual...

  • Page 90: Installing Panel Mount

    3.15 Installing Panel Mount 1. Accessories provided by Cincoze are as below. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) 2. All mounting kits displayed are to be inserted into holes.
  • Page 91 3. Installation preparation and steps. CS-100/P2202 Series | User Manual...
  • Page 92 CS-100/P2202 Series | User Manual...
  • Page 93 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CS-100/P2202 Series | User Manual...

  • Page 94: Installing Vesa Mount

    The following picture uses a panel PC (P2202+ Display Module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. Panel PC: P2202+ Display Module VESA Stand CS-100/P2202 Series | User Manual...

  • Page 95: Installing Rack Mount

    Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. For 8.4” ~ 17” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P2102/ P2102E/P2202/P2202E Left Side Right Side Bottom Side CS-100/P2202 Series | User Manual...
  • Page 96 Right Side Bottom Side Step 3. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side. For 8.4” ~ 17” Panel PC For 19” ~ 24” Panel PC CS-100/P2202 Series | User Manual...

  • Page 97: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CS-100/P2202 Series | User Manual...

  • Page 98: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CS-100/P2202 Series | User Manual...

  • Page 99: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. CS-100/P2202 Series | User Manual...

  • Page 100: Advanced Setup

    Allows you to choose the number of active performance cores. Configuration options: [All] [1] ◼ Active Efficient-cores [All] Allows you to choose the number of active efficient cores. Configuration options: [All] [1] [2] [3] [4] [5] [6] [7] CS-100/P2202 Series | User Manual...

  • Page 101: Sata Configuration

    This item allows users to choose [AHCI] mode. ◼ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ◼ Serial ATA Port 1 Port 1 [Enabled] Enables or disables SATA Port 1. 4.3.3 PCH-FW Configuration CS-100/P2202 Series | User Manual...

  • Page 102: Trusted Computing

    ◼ SHA384 PCR Bank [Disabled] Enables or disables SHA384 PCR Bank function. ◼ SHA3_256 PCR Bank [Disabled] Enables or disables SHA3_256 PCR Bank function. ◼ Pending Operation [None] Allows users to select which mode Pending Operation will operate. CS-100/P2202 Series | User Manual...

  • Page 103: Acpi Settings

    Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. CS-100/P2202 Series | User Manual...

  • Page 104: F81966 Super Io Configuration

    This item allows users to change the address & IRQ settings of the specified serial port. ◼ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ◼ Watch Dog [Disabled] CS-100/P2202 Series | User Manual...

  • Page 105: Hardware Monitor

    RC-E4-02) and plug the power cord of the internal smart fan into the power socket on the Riser Card to effectively enable this function. ❑ Internal Smart Fan Configuration Allows users to setting internal smart fan parameters. CS-100/P2202 Series | User Manual...

  • Page 106: S5 Rtc Wake Settings

    [Dynamic Time]: Set the increase time from current time to wake system. 4.3.9 Serial Port Console Redirection ◼ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, Com3 console redirection function. CS-100/P2202 Series | User Manual...

  • Page 107: Usb Configuration

    This item allows users to enable or disable XHCI (USB3.2) hand-off function. ◼ USB Mass Storage Driver Support [Enabled] Enables or disables support for USB mass storage devices. 4.3.11 Network Stack Configuration ◼ Network Stack [Disabled] Enables or disables UEFI Network Stack. CS-100/P2202 Series | User Manual...

  • Page 108: Csm Configuration

    This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. CS-100/P2202 Series | User Manual...

  • Page 109: System Agent (Sa) Configuration

    4.4.1 System Agent (SA) Configuration ❑ Memory Configuration This item displays detailed memory information in the system. ◼ Max TOLUD [Dynamic] This item allows users to select maximum value of TOLUD. CS-100/P2202 Series | User Manual...
  • Page 110 BIOS. Configuration options: [Auto] [Disabled] [Enabled] ❑ VMD Setup Menu ◼ Enable VMD controller [Disabled] This item allows users to enable or disable VMD controller. Enable this function can support creating RAID. CS-100/P2202 Series | User Manual...
  • Page 111 PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] [Gen4]. ❑ VT-d [Enabled] This item allows users to enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. CS-100/P2202 Series | User Manual...

  • Page 112: Pch-Io Configuration

    Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑ PCI Express Root Port(CN3) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. CS-100/P2202 Series | User Manual...
  • Page 113 Enables or disables integrated LAN i210 Wake On LAN function. ◼ CN5 Function Switch [Mini-PCIe] Select Mini-PCIe/USB3.0 for CN5 connector. ◼ CN4 Function Switch [Wifi] Select CNV/Wifi(PCIE) for CN4 connector. ◼ Audio Amplifier [Enabled] Enable or disable Audio Amplifier. CS-100/P2202 Series | User Manual...

  • Page 114: Security Setup

    This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. CS-100/P2202 Series | User Manual...

  • Page 115: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [Off] CS-100/P2202 Series | User Manual...

  • Page 116: Save & Exit

    4.7.8 Save as User Defaults This item allows you to save the changes done so far as user defaults. 4.7.9 Restore User Defaults This item allows you to restore the user defaults to all the options. CS-100/P2202 Series | User Manual...

  • Page 117: Mebx

    This page is for ME function setting. Press the delete key to enter the BIOS menu then user can see the following MEBx page. Press enter key to enter the default password "admin" to enter the next step for password creation. CS-100/P2202 Series | User Manual...
  • Page 118 Create a new password using 8 characters including uppercase and lowercase letters, numbers and special symbols. Enter the created password again for confirmation. CS-100/P2202 Series | User Manual...
  • Page 119 Then you can see the function setting page of MEBx. CS-100/P2202 Series | User Manual...

  • Page 120: Chapter 5 Product Application

    Chapter 5 Product Application CS-100/P2202 Series | User Manual...

  • Page 121: Where To Download Drivers

    Drivers for the CS-100/P2202 Series can be downloaded from the CINCOZE website. 5.2 Where to find the technical documents? The following documents are the most relevant technical references for the CS-100/P2202 Series. All documents can be accessed via the CINCOZE Partner Zone: •...
  • Page 122 Wake On LAN Function Manual WDT Function Manual CS-100/P2202 Series | User Manual...
  • Page 123 © 2023 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Cs-112hc/p2202 seriesCs-115c/p2202 seriesCs-w124c/p2202 seriesCs-117c/p2202 seriesCs-119c/p2202 seriesCs-w121c/p2202 series ... Show all

Table of Contents
