Summary of Contents for Seametrics MJ Series

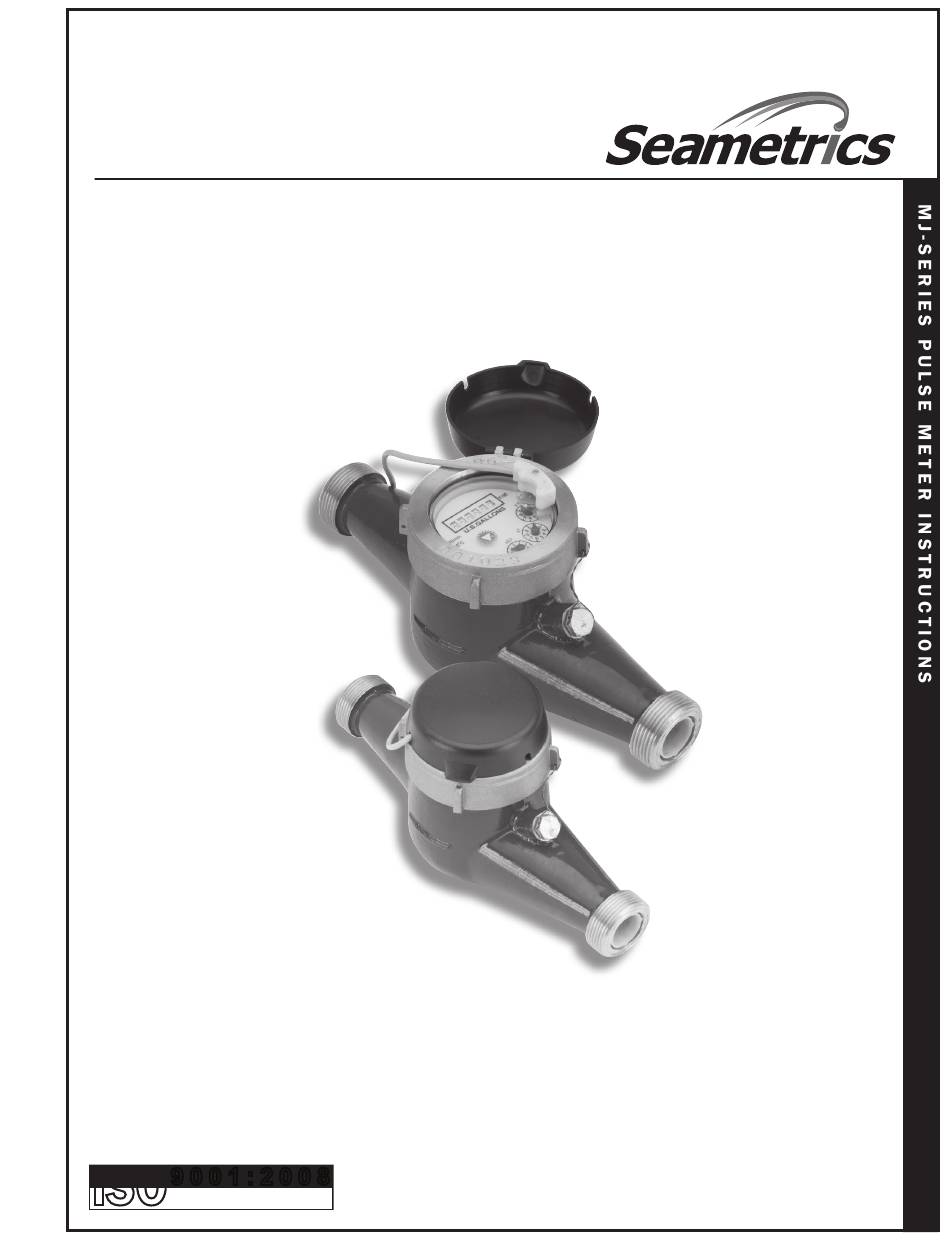

- Page 1 MJ-SERIES PULSE METER INSTRUCTIONS 9 0 0 1 : 2 0 0 8 CERTIFIED COMPANY...
- Page 2 MJE (cold water) and MJHE (hot water) meters use a solid- Internals Engineered thermoplastic state, long-lasting Hall-effect sensor, which requires power. Magnet Alnico They are suited for use with Seametrics controls and metering pumps (LMI for instance) that have sensor power. Accuracy +/- 1.5% of reading Pulse Output MJE/MJHE...
- Page 3 CHANGING PULSE RATES Setting Your Pulse Rate. The pulse rate is determined by which Sample Set-Up. A 1” meter is shown with the magnet sensor was ordered from the factory (single reed switch, dual pointer set at the x10 dial, with a pulse rate of 100 Gal- reed switch, or single Hall-effect) and by the dial on which the lons per Pulse (that is, 10 increments on the x10 dial, or magnet pointer is located.
-
Page 4: Connection Diagrams
CONNECTIONS, MAINTENANCE and REPAIR CONNECTION DIAGRAMS Diagram 1: Single Sensor Diagram 2: Dual Sensor Blue - (No Connection) NOTE: The Dual Sensor is distinguished by a red stripe on the cable at the Black - Common MJR or MJHR: base of the sensor. Red - N O Reed Switch Black - Common...
