Components
Meter
Gaskets
Failure to install
gaskets will void
warranty!
ANSI/NSF-61
rated gaskets
Recommended Tools
Recommended:
• T-15 Torx head driver
• 0.098 inch (small) flat head screw driver
• Crescent Wrench
253.872.0284
Mechanical Quick Start Guide
Remote Display
Protective faceplate
cover and lanyard
Cable Glands
Optional
Six foot AC power
cable for AC
configurations
Power/Output Cable
Optional:
• Channel locks

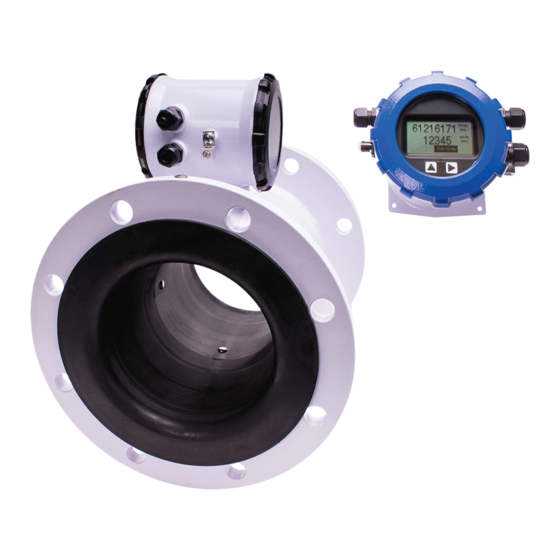

iMAG 4700r
Remote Display Cable
15 Pin Connector
Security Seals
Second
output cable
seametrics.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seametrics iMAG 4700r
Summary of Contents for Seametrics iMAG 4700r
- Page 1 4700r Mechanical Quick Start Guide Components Power/Output Cable Remote Display Remote Display Cable Meter 15 Pin Connector Protective faceplate cover and lanyard Gaskets Cable Glands Failure to install gaskets will void Security Seals warranty! Optional Six foot AC power...
- Page 2 • Ensure proper grounding. Refer to the Electrical Quick Start Guide or the complete instruction manual for details on wiring. Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA LT-14266r1.6 201870601 (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com...
