Leg Extension Adjustment

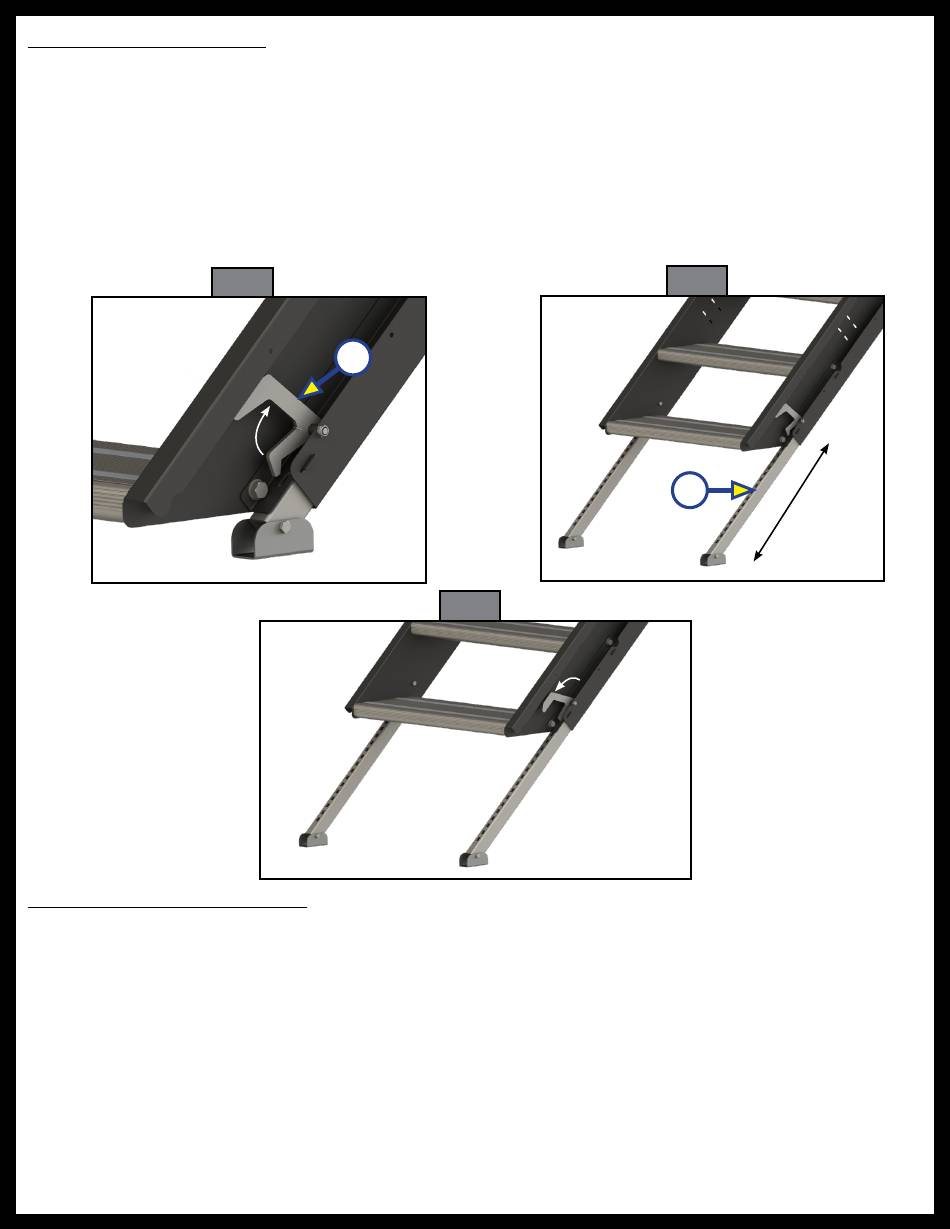

The leg extension is secured with a spring-loaded catch pawl (Fig. 2A). Adjustments can be made to the leg
extensions in 1" increments by extending or retracting the inner leg for the optimal angle and to adjust for
the ground surface angle.
1. Pull the spring-loaded catch pawl (Fig. 2A) up to release it from the tube and the slot
in the angle.
2. Extend or retract the inner leg (Fig. 3A) as needed so the steps are parallel to the ground and level
when extended, and unobtrusive while retracted.
3. When the leg is at the desired position, release the spring-loaded catch pawl into the tube and slot
closest to where the inner leg and tube meet to lock them (Fig. 4).

Securing and Storing the Steps

1. Retract leg extensions. See Leg Extension Adjustment section.
2. Lift up SolidStep 4.0 to its stored position (Fig. 1) until the transport locks engage and click into place.
3. Make sure the latches (Figs. 6A and 7A) are resting against the door frame.
4. Once the transport lock has been engaged, test its functionality by shaking the step assembly to
simulate road vibration, making sure that the SolidStep 4.0 is secure.
