Technical Support and E-Warranty Certificate www.vevor.com/support

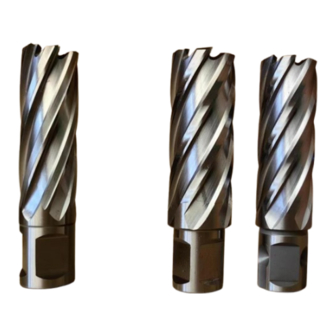

ANNULAR CUTTER
USER MANUAL
MODEL: 10190010215/10190010216/10190010146
10190010213/10190010214
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR 10190010215
Summary of Contents for VEVOR 10190010215
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ANNULAR CUTTER USER MANUAL MODEL: 10190010215/10190010216/10190010146 10190010213/10190010214 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 SAFETY INSTRUCTION AND PRECAUTIONS WARNING: Read this material before using this product. Failure to do so can result in serious injury. Safety Caution For your safety please wear goggles and helmet. Do not wear loose clothes or yarn gloves. 1. Please use hook to remove the chip to prevent injuries of hand. 2.
- Page 4 [Method of application] 1．Installation method： • Weldon shank （1） ： The handle of two planes aim at the two screw holes on the drill spindle，With a hex wrench to tighten and leaving a gap of 0.2-0.3mm, Back and forth with your hand to confirm socket head screw perpendicular to the two planes, then screw down the screws.
- Page 5 2. Recommended cutting speed for high speed steel annular cutter: 12-18 19-25 26-32 33-39 40-46 47-53 54-60 61-65 Material carbon steel 447-318 301-229 220-179 173-146 143-124 121-108 106-95 93-88 alloy steel 371-247 234-178 171-139 135-114 111-96 94-84 82-74 73-68 stainless steel 345-230 217-165 159-129...
- Page 6 Under the normal cooling, when chip appear blue-black color, it need to check the drill bit blade, when the most big wear width is 0.5 mm, it needs grinding. Items Description Annular Cutter Name 10190010215 Model Shank：Weldon shank D.O.C：2" Parameter Cutter Dia.：1"、1-1/8"、1-1/4"、1-1/2"、1-3/4"、2" Items...
- Page 7 Items Description Annular Cutter Name 10190010146 Model Shank：Weldon shank D.O.C：1" Parameter Cutter Dia.：1/2"、9/16"、11/16"、13/16"、15/16"、1-1/16" Items Description Annular Cutter Name 10190010213 Model Shank：Weldon shank D.O.C：1" Parameter Cutter Dia.：7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、 15/16"、1"、1-1/16" Items Description Annular Cutter Name 10190010214 Model Shank：Weldon shank D.O.C：2" Parameter Cutter Dia.：7/16"、1/2"、9/16"、11/16"、5/8"、3/4"、13/16"、7/8"、 15/16"、1"、1-1/16"...
- Page 8 Technical Support and E-Warranty Certificate www.vevor.com/support...
