Support and E-Warranty Certificate https://www.vevor.com/support

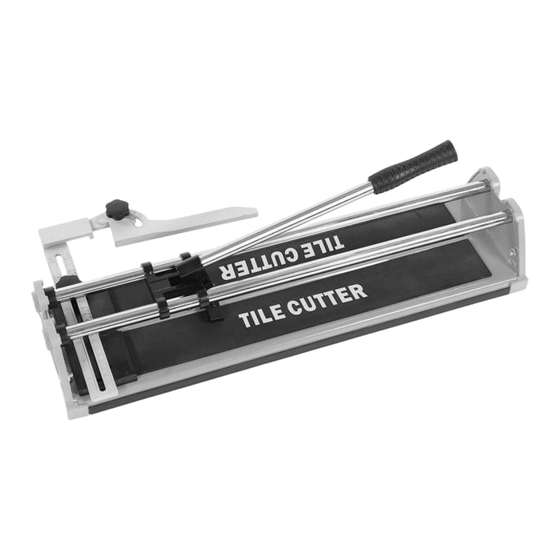

TILE CUTTER
MODEL:8103E-2/17"
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR 8103E-2/17
Summary of Contents for VEVOR 8103E-2/17
- Page 1 Support and E-Warranty Certificate https://www.vevor.com/support TILE CUTTER MODEL:8103E-2/17” We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: Specifications
SPECIFICATIONS Maximum Cutting Length 430mm Maximum Cutting Thickness 12mm Φ15*Φ6*1.5mm Cutting Wheel Size SAFETY INFORMATION Symbol Symbol Description Warning - To reduce the risk of injury, user must read instructions manual carefully. This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. - Page 5 is an alert that there is a possibility of property damage, injury or death if certain instructions are not followed. WORK AREA 1.Operate in a safe work environment. Keep your work area clean, well-lit and free of distractions. 2. Keep anyone not wearing the appropriate safety equipment away from the work area.
- Page 6 SPECIFIC SAFETY PRECAUTIONS 1. The tile cutting machine is fitted with replaceable circular blade. Keep the tile cutter and blade away from children. 2. Use the correct tile cutter for the job. This tile cutter was designed for a specific function.
- Page 7 Operation Straight Cutting □ Place the cutting wheel on the rear edge of the tile. Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
- Page 8 Apply increasing pressure on the handle until the tile snaps along the score line. 5-10mm Tips: After scoring, it is better to pull back the handle to let the breaker slightly backtrack 5-10mm,it's the best position to break the tile. Tips: Do not press in the middle or the end.
- Page 9 Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time. □ After scoring and without moving the tile position, so that the breaker is slightly in the front edge of the tile and front stop.
- Page 10 5-10MM Tips: After scoring, it is better to pull back the handle to let the breaker slightly backtrack 5-10mm,it's the best position to break the tile. Use Screwdriver to replacement the blade. - 8 -...
- Page 11 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Made In China - 9 -...
- Page 12 Support and E-Warranty Certificate https://www.vevor.com/support...
