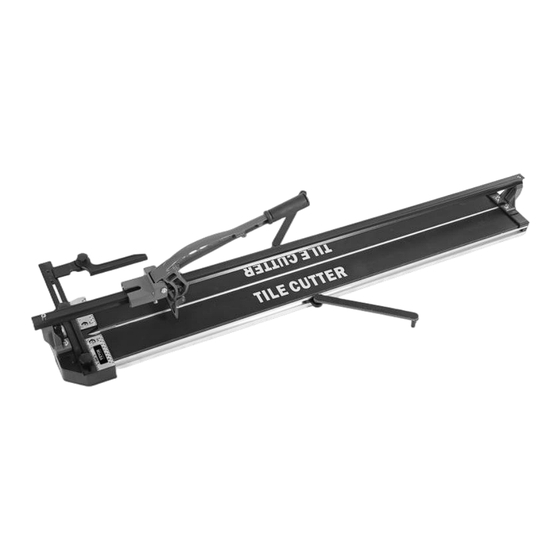

TILE CUTTER
MODEL:8102E-8L
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR 8102E-8L
Summary of Contents for VEVOR 8102E-8L
- Page 1 Support and E-Warranty Certificate https://www.vevor.com/support TILE CUTTER MODEL:8102E-8L We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 SPECIFICATIONS Model 8102E-8L/32" 8102E-8L/40" 8102E-8L/48" Maximum 800mm 1000mm 1200mm Cutting Length Maximum Cutting 15mm 15mm 15mm Thickness Cutting Wheel Φ22*Φ6*6mm Size SAFETY INFORMATION Symbol Symbol Description Warning - To reduce the risk of injury, user must read instructions manual carefully.
- Page 5 Please familiarize yourself with the hazard notices found in this manual. A notice is an alert that there is a possibility of property damage, injury or death if certain instructions are not followed. WORK AREA 1.Operate in a safe work environment. Keep your work area clean, well-lit and free of distractions.
- Page 6 SPECIFIC SAFETY PRECAUTIONS 1. The tile cutting machine is fitted with replaceable circular blade. Keep the tile cutter and blade away from children. 2. Use the correct tile cutter for the job. This tile cutter was designed for a specific function.
- Page 7 Operation Straight Cutting □ Place the cutting wheel on the rear edge of the tile. Make sure the breaker is upward to magnet on the sliding bar. Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
- Page 8 Raise the handle a little and release the breaker so that the breaker is flat on the tile. Apply increasing pressure on the handle until the tile snaps along the score line. 5-10mm Tips: After scoring, it is better to pull back the handle to let the breaker slightly backtrack 5-10mm, it's the best position to break the tile.
- Page 9 Place the cutting wheel on the rear edge of the tile. Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
- Page 10 Laser Device Instruction 1, There are four screws for the laser device. 2pcs of AAA batteries are required, please turn off the power when not in use. If the battery is exhausted, replace it. 2, If the laser is biased to the left, 3, If the laser is biased to the right, adjust the No.
- Page 11 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Made In China - 9 -...
- Page 12 Support and E-Warranty Certificate https://www.vevor.com/support...
