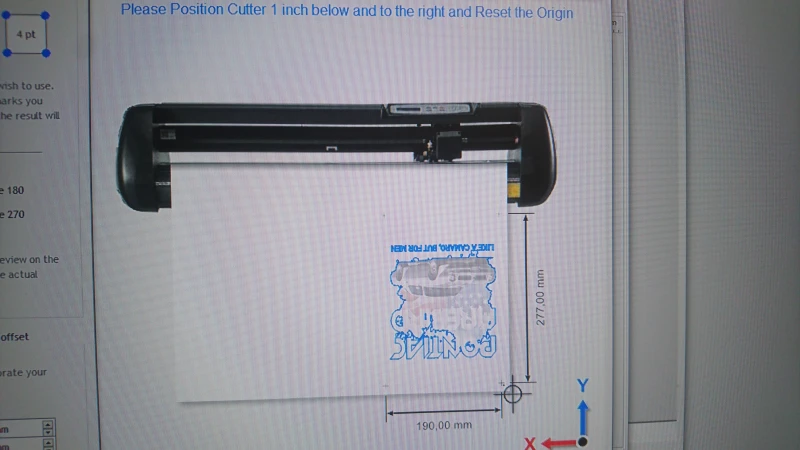

I don`t understand how to calibration the sk-720 cutter with signmaster : What shall I do with the cutter to calibration.

Israel Muro

February 11, 2025

I ned the PSN number of my cutting plotter the model Is KI-720A serial number 21123637

Summary of Contents for VEVOR KH-375

Page 1: Table Of Contents
Contents Ⅰ.Precautions…………………………………………………......2 Ⅱ. Introduction for main parts………………......…..3-6 Ⅲ. Technical parameters………….…..........7-8 Ⅳ. Bracket assembly diagram……..…………......….9-12 Ⅴ.Blade assembly……...............13-15 Ⅵ. …............16-23 How to use the product Ⅶ .How to connect products to software..........24 Ⅷ. Software and driver installation…........25-30 Ⅸ. Connection of software and machine….......31-34 Ⅹ.Troubleshooting..............35-37...
Page 2: Ⅰ.precautions
Ⅰ.Precautions Protective material must be removed before turning on the cutting plotter 2. Check the label on the back side of the plotter to confirm that the rated voltage required by the plotter matches the voltage of the power base. 3.
Page 3: Ⅱ. Introduction For Main Parts
Ⅱ. Introduction for main parts KH Model 1.Cover for rail guide 2. Pinch roller kit 3. Roller for feeding paper 4. Carriage 5. Reset switch 6. Screen 7. Buttons 8. The right cover 9. Blade clamp 10. The left cover 11.Power connection 12.Fuse holder 13.Power switch...
Page 4 1 2 3 4 5 6 KI Model 1.Cover for rail guide 2. Pinch roller kit 3. Roller for feeding paper 4. Carriage 5. Screen 6. Buttons 7. The right cover 8. Reset switch 9. Blade clamp 10. The left cover 11.Power connection 12.Fuse holder 13.Power switch...
Page 5 EH Model 1.Cover for rail guide 2. Pinch roller kit 3. Roller for feeding paper 4. Carriage 5. Reset switch 6. Screen 7. Buttons 8. The right cover 9. Blade clamp 10. The left cover 11.Power connection 12.Fuse holder 13.Power switch 14.USB port 15.COM port 16.U-disk port...
Page 6 SK Model 1.Cover for rail guide 2. Pinch roller kit 3. Roller for feeding paper 4. Carriage 5. Screen 6. Buttons 7. The right cover 8. Reset switch 9. Blade clamp 10. The left cover 11.Power connection 12.Fuse holder 13.Power switch 14.USB port 15.COM port Left side...
Page 7: Ⅲ. Technical Parameters
Ⅲ. Technical parameters Model 1350 Item Max. feeding width 375mm 720mm 870mm 1350mm Max. cutting width 285mm 630mm 780mm 1260mm Cutting thickness ≤1mm Speed/Pressure 20-1200mm/s 20-1000g Buffer 1-4M LCD display CN/EN Real-time Support Speed adjusting Interface COM+USB / COM+USB+U-DISK Re-cutting function Support Re-cutting accuracy 0.127mm...
Page 8 Accessory box Item Quantity Unit Cutting plotter Power supply cable Blade Blade holder Pen holder Ball pen core COM connection cable USB cable Spanner USB driver Bracket screws To protect the machine, use only the accessories in this accessory box...
Page 9: Ⅳ. Bracket Assembly Diagram
Ⅳ. Bracket assembly diagram 1-1 Iron bracket assembly diagram 1. M6*40 Hex bolts 8pcs...
Page 10 1-2 Al bracket assembly diagram...
Page 11 1-3 Sheet metal racket assembly diagram...
Page 12 1-4 AI bracket assembly diagram 2-1 lnstall the machine on the bracket...
Page 13: Ⅴ.blade Assembly
Ⅴ. Blade assembly Unscrew the cap from Set Brass Ring on Blade Remove the protective Insert the blade into the Carriage to the fully down the Blade Carriage. top of the Blade Carriage. cover from a newblade. position. Adjust the carriage cap until the Adjust the Brass Ring until it fi ts Screw the cap back snug against the Cap.
Page 14 1). Assembly the blade into holder, see as below: (Appearance view) (Exploded view) 2). Loosen the blade adjustment nut and rotate the shank to adjust the length of the exposed blade tip. Determine the tip length according to the thickness of the material. Correct Blade tip is too long Blade tip is too short...
Page 15 Holds the blade carriage CARRIAGE SLOT in place. Allows access to the blade/pen carriage slots LOCKING KNOB for exchanging/replacing carriages. Loosen the locking knob Place blade carriage Tighten the locking on the carriage arm. into the carriage arm. knob on the carriage arm.
Page 16: Ⅵ. How To Use The Product
Ⅵ. How to use the product KI Model SK Model KH Model EH Model The main screen of the cutter allows you to set the main settings of the cutter including the cutting speed and cutting force options. It also allows you to cut a test pattern or check the amount of force that is currently set.
Page 17 Resets by stopping the cutter, and setting the origin Reset BUTTON of the carriage arm to its right most position. Offline/Leave/Option BUTTON Accesses the Offline/Pause mode. SETUP BUTTON Accesses the Setup mode. Will cut a small test shape so that the current force and speed settings of the cutter can be tested.
Page 18 KI Model SK Model KH Model EH Model Offline mode is used to reposition the cutting material and blade so that a new starting position can be set for the next design. Offline mode can also be accessed while the cutter is in operation and will pause the current cutting process.
Page 19 Resets by stopping the cutter, and setting the origin of the carriage Reset BUTTON arm to its right most position. Ignores any changes that have been made to the material or blade positions and exits Offline Offline/Leave/Option BUTTON ine/Pause mode, returning the cutter to the main screen.
Page 20 Place the roll on top of the stand rollers. For heat press vinyl, please fl ip the roll. Release the pinch rollers release levers. Feed the vinyl underneath the pinch rollers (ifworking from a single sheet instead of a roll, the vinyl can also be feed from the front).
Page 21 Leave a gap of between1/2”-1 1/2” from the edge of the roller and the edge of the vinyl on both sides. Engage the Pinch Rollers by pushing down on the Pinch Roller Release Levers. If the cutter is not already on, turn it on now.
Page 22 If you would like to change the position of where the cut will be made: Press the OFFLINE/PAUSE button to enter offline mode. Adjust the vinyl to where you want to make your cut to start by using the Up and Down arrow keys on the control panel. Now, adjust the blade to where you want your cut to start by using the Left and Right arrow keys.
Page 23 Now press the Origin button to tell the cutter that this is the location where you would like the cut to begin. When choosing a starting location for your design, remember that the process will start in the bottom right area of the design.Please leave enough room to the left of and behind the starting location to finish your cut.
Page 24: Ⅶ How To Connect Products To Software
Ⅶ How to connect products to software Attach the power cord to the cutter and then plug in the unit and turn on the power. If you are using a Serial Cable to connect your cutter to a computer then no further setup is necessary. Simply connect one end of the cable to the cutter and the other end to a computer and setup is complete.
Page 25: Ⅷ. Software And Driver Installation
Ⅷ. Software and driver installation 1. Open the software box (pic 1), take the disk and put it into CD optical drive (pic 2) (pic 1) (pic 2) 2. Open the computer, double click or right click optical drive to install the software.

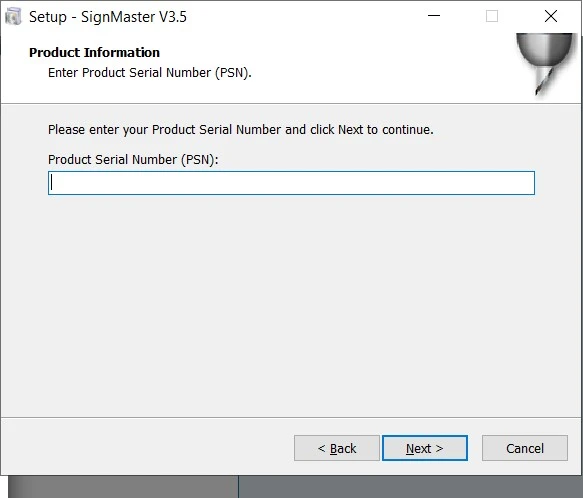

Page 26 3. After opening optical drive, click Install Software (pic 4) Click on the icon in the red box Select the language (pic 4-2) (pic 4-1) Enter the PSN code Agree to click next (pic 4-3) (pic 4-4) PSN code can be found at left side of opened software box.
Page 27 Default installation path, click next (pic 4-5) Select the unit (pic 4-6)
Page 28 Select machine model (pic 4-7) The selected machine model can be viewed in the label above the machine power socket (pic 4-8)
Page 29 The installation is complete (pic 4-10) This activation window appears when you open the software...
Page 30 (pic 4-11) Click activate and enter your email twice (pic 4-12) Activation successful, exit (pic 4-13)
Page 31: Ⅸ. Connection Of Software And Machine
Ⅸ . Connection of software and machine 1.Open the software, select cut content, and click send to the cutting plotter Click the cutter icon in the red box (pic 5-1) Click properties (pic 5-2)
Page 32 Click connect (pic 5-3) Select machine model Select Direct USB Port (pic 5-5)
Page 33 Drop-down select driver (pic 5-6) Click finish Click cut now (pic 5-7) (pic 5-8)
Page 34 Click cut now (pic 5-9) The output is completed, the cutting plotter is cutting (pic 5-10) Note: Specific operation can refer to USB flash drive operation video, including as follows 1. Ordinary cutting video 2. Automatic contour video 3. Automatic deviation correction video 4.
Page 35: Ⅹ.troubleshooting
Ⅹ Troubleshooting 1.The computer does not have the CD drive cannot load the CD installation software how to do. Solution: The software installation package is included in the usb flash drive. You can also download the software from the following link:https://fcws6.com/downloads/signmaster/SignMaster_UniverDSR_35_ GW.exe 2.Product cannot connect to software.
Page 36 3.Paper deviation occurred during cutting. Solution: Because the tension of paper press is inconsistent, rotate the two yellow copper nuts on each paper press to the same height, then the pressure is balanced, as shown below: High inconsistency Rotate to the same height 4.The effect of small graphics cutting is not ideal.
Page 37 5.Often repeated cutting, cutting before automatic paper and other problems. Solution: Cancel the automatic paper feeding function after cutting in the software, as shown below: 6.The cutting process stops and does not return to the origin. Solution:Do not use any data conversion connector. Data may be lost and the cutting process may stop.
