Thank you for choosing our products, so you can get our comprehensive technical support and
service guarantee

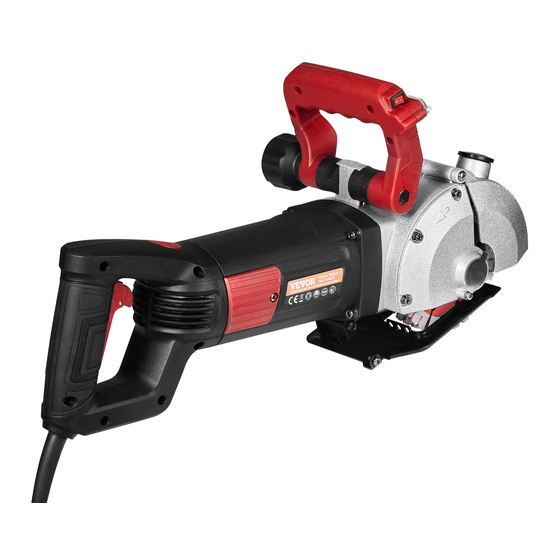

Product Description: This tool is suitable for one-time forming and slotting of old fire brick,
cement brick, light brick, concrete wall (ground) and cutting of granite, marble, ceramic tile and
other building materials.
This slotting machine is the eighth generation product, which has the following remarkable
characteristics compared with the previous generations:
1. Under the same efficiency, the weight is lighter. The net weight of the whole machine is 62 kg,
3 kg lighter than that of previous generations,It greatly reduces the labor intensity of users, but
the groove depth and width are deeper and wider than those of previous generations
2. 160 rotating auxiliary handle, more suitable for use in various complex places
3. Maintenance is more convenient and fast.
4. The unique waterproof design greatly improves the service life of the machine and makes the
operation safer.
5. The rotatable rear handle is more in line with the principle of ergonomics, and the grip is more
labor-saving and safe.
6. 75-330 angle cutting at will, competent for all complex places.
7. The tool is designed to be suitable for two and one operations with water and dust collection,
which greatly reduces the dust and water operation of cutting operation, effectively prolongs the
service life of saw blade, and further reduces the cost of slotting
8. Equipped with water pump and leakage protection plug to make slotting easier and safer.
9. Turn over protective cover, which can effectively protect people from gravel and dust. The
disadvantages of the traditional slotting machine protective cover being stuck by gravel and
sediment are completely avoided.
1、 Technical parameters
Model
Voltage/frequency
Rated power
Maximum load power
Speed
Specification of cutting piece
Maximum cutting capacity
Net weight
2、 Symbol description
: warning symbol refers to any operation not in accordance with the operating procedures in
this manual, which will cause personal injury or machine damage.
: anti electric shock symbol refers to any operation not in accordance with the operating
k110D
220VAC/50-60Hz
2700W
4800W
5000r / min
φ 133x φ 20x4.5
42mm wide x 41mm deep
6.2kg
k110E
220VAC/50-60Hz
2700W
5800w
5000r / min
φ 160x φ 22.2x2.4
38mm wide x 52mmdeep
6.5kg
