Summary of Contents for VEVOR SL-400
- Page 1 SL-400 Multi-functionalBowl Cutter User Instruction...
-
Page 3: Table Of Contents
Ⅶ Electrical Failure and Exclusion ........... 13-16 Ⅷ Technical Parameters ............... 16 Ⅸ Electrical Schematic Diagram and Circuit Board Wiring Diagram ....................17 Ⅹ Product Explosive View（Mod：SL-400） ......18 Ⅺ Part BOM（SL-400） ............19-20 Ⅻ Product Warranty ..............21 XIIIPacking List ................22... -
Page 4: Ⅰproduct Introduction And Structural Features

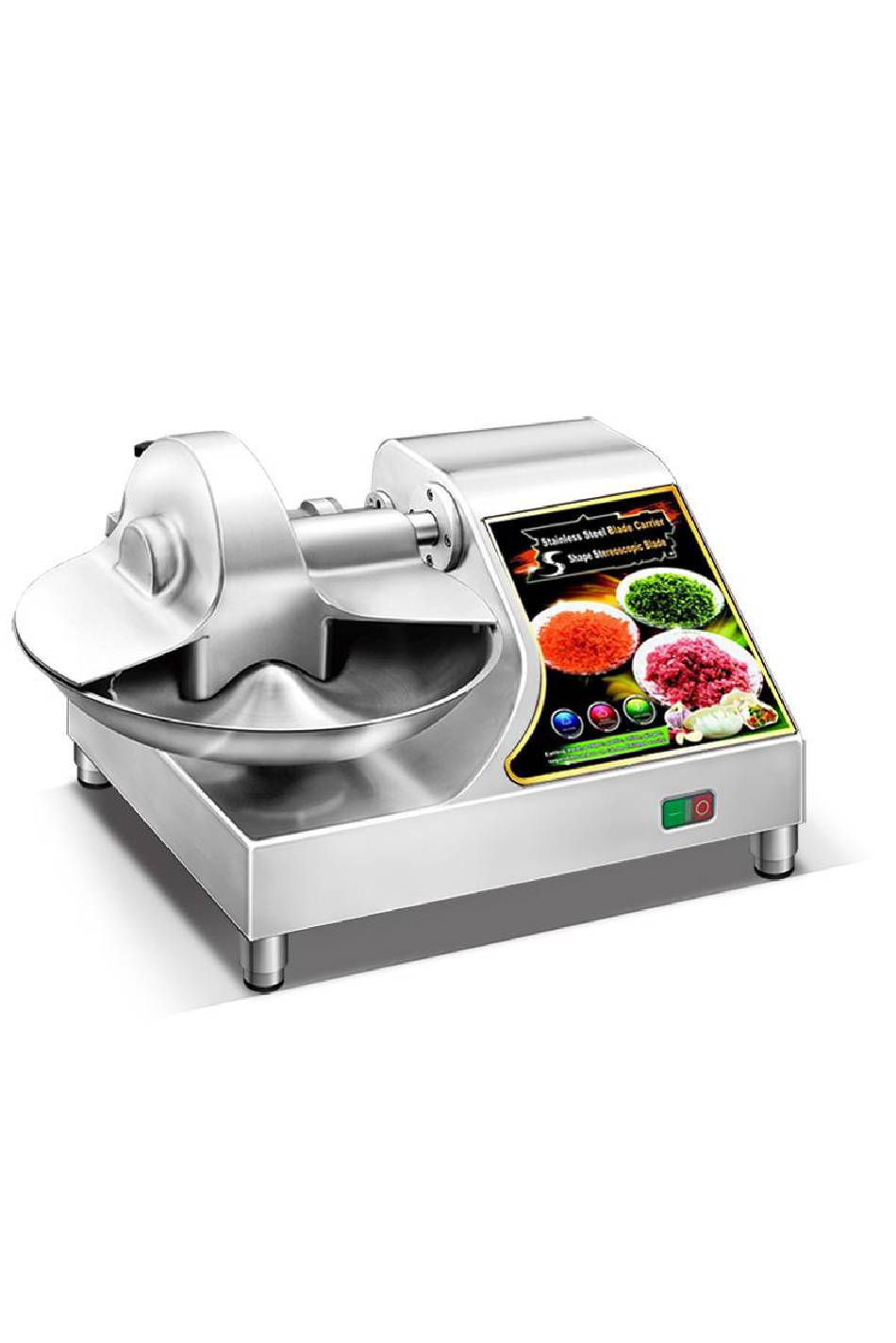

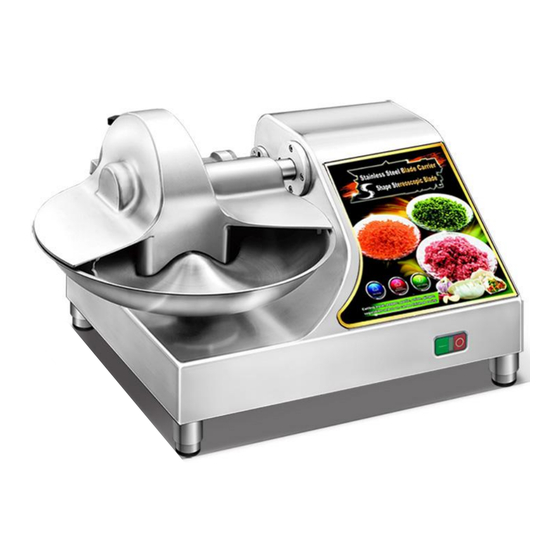

ⅠProduct Introduction and Structural Features Product introduction SL-400 Multi-functionalBowl Cutter (The following abbreviations Bowl Cutter) is a well-designed and manufactured new product by the R&D Department of our company according to market-oriented types of food. Bowl Cutter is suitable for processing all kinds of fresh meat, vegetables, melons, fruits, etc. - Page 5 features, reliable, elegant, convenient to remove and easy to wash. It is widely used in restaurants, hotels,canteens, supermarkets and food processing enterprises. Product’s structural features 1. TheBowl Cutter cut up all kinds of food by using the blade directly, which can ensure their original nutrientand have a better taste.
-
Page 6: Ⅱ Exterior Structure And Parts Name Of Bowl Cutter
waterproof, thus it can have a better cleaning effect. 8. The product is equipped with multiple super convenient manual knobs to lock the blade so as to prevent the blade from loosening. 9. Fixed supporting legsare equipped with adjustable knobs, which is suitable for different sites. -
Page 7: Ⅲbowl Cutter Operation
plate locking knob，⑤meat blockingplate⑥power line⑦nameplate⑧ main switch⑨food tray⑩machine’s leg (adjustable) ⅢBowl Cutter’s Operation 1. Please put theBowl Cutter on the firm working platform after opening the box. The four machine’s feet can be rotated freely to make an up and down adjustment, making the machine more stable. - Page 8 4. Food choice. Prepare the size of the food according to the technical parameters. The width of all food can’t exceed 4cm andthe thickness can’t exceed 3cm. There is no special requirement to the length of the food so long as it’s soft food. (PS: no bone in food) 5.
- Page 9 the operator can use special oversleeve, standing in front of the Bowl Cutter. 8. All the processing food will be cut up automatically. If you want food to be tinier, you can extend the operating time. 9. After a tray of food is cut up, you can take it out with the special spoon.
-
Page 10: Ⅳ Disassembly & Installation, Adjustment Of Bowl Cutter's
Cover, Meat Blocking Plate, food tray and Blade 1. Disassembly & Installation, Adjustment of Bowl Cutter’s Tray Cover First of all, Open the tray cover, turn up to thevertical position, and then pull it out slowly. With the axle pin justgoing through the location hole, you can take out the tray cover smoothly. - Page 11 First open the tray cover, and then turn the food trayto a certain angle in a clockwise direction . When you feel the food tray is loose, you can lift up the food tray andremove it. Pay attention to put the food tray base into the food tray’s fixed nail and rotate food tray in a counterclockwise until it cannot be rotated.
-
Page 12: Ⅴ Cleaning
Ⅴ Cleaning 1. Make sure the power plug is pulled out before cleaning. This series of product’s waterproof level is IPX4. You should not dip the whole machine into water to clean. Instead, the tray cover, the food tray and the meat blocking plate can be removed separately for cleaning. -
Page 13: Ⅵ Precautions And Maintenance
4. Use a dry cloth to wipe out the water in the food tray after cleaning and all the parts should be checked to make sure everything is fine and in its right place. Besides this, the blade can’t be exposed for a long time. - Page 14 electrical parts from being damaged. The waterproof levelisIPX4. 6. If the machine is shaking and low efficient when processing food material, you should check whether the blade is fine. If there is a flaw in the blade, you should replace or adjust it. You’d better wear safe gloves when replacing the blade.
-
Page 15: Ⅶ Electrical Failure And Exclusion
other hard objects into the food tray. Don’t use your hands to touch food tray, either. Meanwhile, don't open the tray cover at random. 12. Cut off the power after the product is finished using. Do not be charged for a long time. The machine should be put in a clean and ventilated place, so that it is not easy for the machine to be affected with damp, thus helping prevent electric shock accidents. - Page 16 circuit board When pressing start button, Check a. Check whether the working indicator motor power circuit is input light is on, but the b. Check the normally motor didn’t motor b. Replace the motor work. Working indicator light is on, it didn’t lock itself when you press Check the...
- Page 17 bearings Check the Have an electrical The insulation insulation of auto shut off resistance to earth the motor when pressing should be greater and circuit start button. than 5 m Ω. board a. When the tray cover Pop-up a a. Check certain height, the whether the power goes off...
-
Page 18: Ⅷ Technical Parameters
Ⅷ Technical Parameters model SL-400 rated voltage AC 110V220V 380V rated frequency 50-60Hz rated power 400W waterproof level IPX4 rotating speed of main 1460RPM blade rotating speed of food 20RPM tray 40mm×30mm processing size(WxT) φ... -
Page 19: Ⅸ Electrical Schematic Diagram And Circuit Board Wiring Diagram
ⅨElectrical Schematic Diagram and Circuit Board Wiring diagram... -
Page 20: Ⅹproduct Explosive View（Mod：sl-400
ⅩProduct Explosive View（Mod：SL-400）... -
Page 21: Ⅺ Part Bom（Sl-400
ⅪPart BOM （SL-400） sequence sequence name name number number meat screw M12 blocking plate locking knob tray cover reduction gear-box tray cover reduction axle worm tray cover reduction axle belt pulley sleeve food tray motor belt pulley (small) food tray... - Page 22 M-21(V) hudcap Tensioning blade wheel bearing support Motor adjustmen seal32*47*8 t support motor pressing plate of the meat blocking plate Belt 220M meat TB2-310*1 blocking plate enclosure bottom plate machine’s footstand machine’s foot pad 1. Because of continuous renewal of product technology, the product may have some change in individual parts.
-
Page 23: Ⅻ Product Warranty
Ⅻ Product Warranty □SL-400 product’smodel manufacturing serial number customer address customer name Tel: purchase date Year Month Date 20 year month date to warranty date 20 year month date name and address of purchasing store Tel: Our product has a strict quality management and is tested to be qualified. -
Page 24: Xiiipacking List
XIII Packing List name SL-400 1. finished product 2. power line 3. belt 4. wooden shovel 5. instruction...
