Backyard Products MODERN 12 x 6 Assembly Manual
  1. Manuals
  2. Brands
  3. Backyard Products Manuals
  4. Garden Houses
  5. MODERN 12 x 6
  6. Assembly manual
Backyard Products MODERN 12 x 6 Assembly Manual

Backyard Products MODERN 12 x 6 Assembly Manual

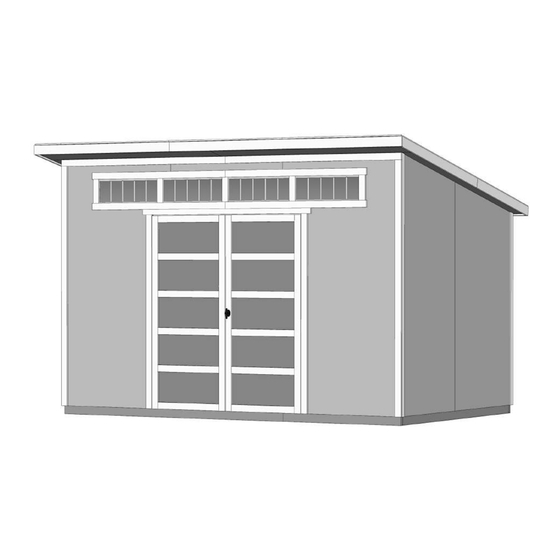

Actual floor size is 144" x 90" 365,8 x 228,6 cm
